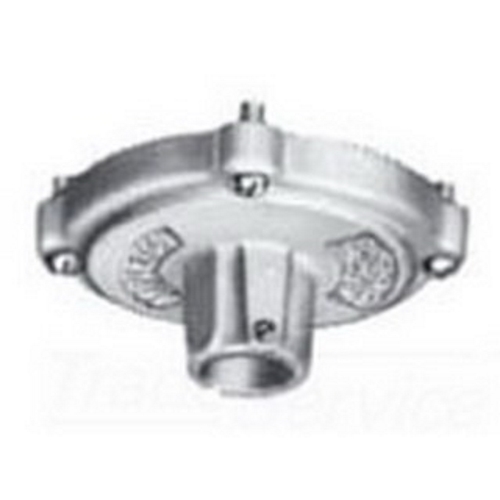

Appleton® Unilet® CPSK20-75 CPU Box Cover With 3/4 in Hub, 3.81 in Dia, 3.69 in D, Malleable Iron
Custom_Product_Images_Illustration
Appleton® Unilet® CPSK20-75 CPU Box Cover With 3/4 in Hub, 3.81 in Dia, 3.69 in D, Malleable Iron
SKU319120
MFGR #CPSK2075
Your Cost: $74.36/ea
Appleton Group's explosionproof conduit outlet boxes for NEC and CEC governed locations feature generous interior space, accurately tapped and tapered hub threads for a rigid joint and reliable ground continuity, and smooth integral bushings to protect conductor insulation from damage. They are available in a wide variety of sizes, styles, materials and hub configurations, all designed for ease of installation and reliable safety in locations exposed to explosive atmospheres or flammable dusts.
Appleton Group's explosionproof conduit outlet boxes for NEC and CEC governed locations feature generous interior space, accurately tapped and tapered hub threads for a rigid joint and reliable ground continuity, and smooth integral bushings to protect conductor insulation from damage. They are available in a wide variety of sizes, styles, materials and hub configurations, all designed for ease of installation and reliable safety in locations exposed to explosive atmospheres or flammable dusts.
Application For Use With Unilets CPU and EFHU Fixture Hangers ARRA Compliant N Buy American Compliant N Capacity 21 in³ Catalog Number CPSK2075 Country of Origin MX Currency USD EU RoHS Indicator C Finish Zinc Electroplate/Chromate/Epoxy Powder Coat Gross Weight Per Pack 1.7400 lb Gross Weight per Pack Metric 0.79 Gross Weight UOM Metric kg Height 3.50 in Height [Metric] 8.8900 cm Length [Metric] 13.9700 cm Mounting Box Mounting Type Surface Number of Outlets 1 Shape Round Size 3/4 IN Fixture Stem Standards RoHS Compliant Type CPU Fixture Hanger Cover UNSPSC 39121304 UPC 11 78138120185 UPC 12 781381201858 Width [Metric] 13.4620 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Depth 3.69 in Diameter 3.81 in Length 5.50 in Material Malleable Iron Width 5.30 in For Use With Unilets CPU and EFHU Fixture Hangers Furnished with screws; Non-flexible type-form 20; Support weight: 250 LB Boxes have cast mounting lugs, box and hub cover provide a complete assembly for suspending lighting fixtures in classified locations CPU20 Hangers are used where fixture stem is less than 12 in long or with EXJF, ESD, or ESS where fixture stem is more than 12 in long Cushion design protects against vibration, and swivel action (any direction up to 15deg from vertical) protects fixture if accidentally struck Ground-joint mating surfaces assure flame-tight fit Hanger has setscrew in stem hub to prevent fixture stem from turning Furnished with screws Malleable iron covers are triple-coated-(1) zinc electroplate, (2) chromate and (3) epoxy powder coat No 20 non-flexible form 3/4 in fixture stem Triple-Coat (zinc electroplate, chromate and epoxy powder coat)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Unilets CPU and EFHU Fixture Hangers |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Capacity | 21 in³ |
| Catalog Number | CPSK2075 |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Gross Weight Per Pack | 1.7400 lb |
| Gross Weight per Pack Metric | 0.79 |
| Gross Weight UOM Metric | kg |
| Height | 3.50 in |
| Height [Metric] | 8.8900 cm |
| Length [Metric] | 13.9700 cm |
| Mounting | Box |
| Mounting Type | Surface |
| Number of Outlets | 1 |
| Shape | Round |
| Size | 3/4 IN Fixture Stem |
| Standards | RoHS Compliant |
| Type | CPU Fixture Hanger Cover |
| UNSPSC | 39121304 |
| UPC 11 | 78138120185 |
| UPC 12 | 781381201858 |
| Width [Metric] | 13.4620 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Depth | 3.69 in |
| Diameter | 3.81 in |
| Length | 5.50 in |
| Material | Malleable Iron |
| Width | 5.30 in |
| For Use With Unilets CPU and EFHU Fixture Hangers |
| Furnished with screws; Non-flexible type-form 20; Support weight: 250 LB |
| Boxes have cast mounting lugs, box and hub cover provide a complete assembly for suspending lighting fixtures in classified locations |
| CPU20 Hangers are used where fixture stem is less than 12 in long or with EXJF, ESD, or ESS where fixture stem is more than 12 in long |
| Cushion design protects against vibration, and swivel action (any direction up to 15deg from vertical) protects fixture if accidentally struck |
| Ground-joint mating surfaces assure flame-tight fit |
| Hanger has setscrew in stem hub to prevent fixture stem from turning |
| Furnished with screws |
| Malleable iron covers are triple-coated-(1) zinc electroplate, (2) chromate and (3) epoxy powder coat |
| No 20 non-flexible form |
| 3/4 in fixture stem |
| Triple-Coat (zinc electroplate, chromate and epoxy powder coat) |
