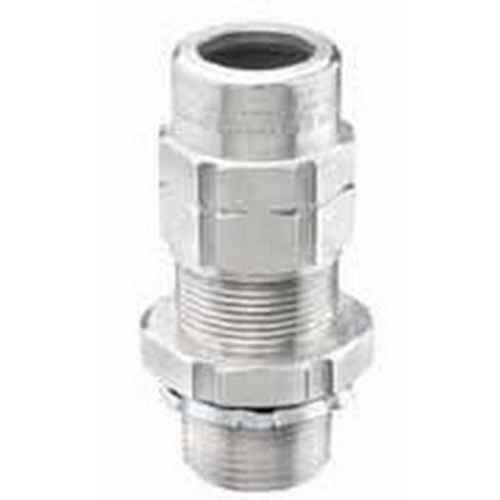

Appleton® TMC2-150233A TMC2 Cable Connector, 1-1/2 in Trade, 1.91 to 2.33 in Cable Openings, Aluminum
Armored/Metal Clad Cable Connectors
903711
MFG #: TMC2150233A
Appleton™
136.32000
/ ea
- http://www.appletonelec.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet URL - tmc2-conn-appleton.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/zWp_kg_Nqak(Video)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
For Jacketed Metal Clad, MC/MC-HL, Corrugated Interlocked Aluminum/Steel Armor, Continuously Welded Armor Cable |
TMC2 connectors provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor; Simplified two piece design; Integral o-ring face seal providing - 4X and IP66; Independent sealing and armor clamping; True 360 DEG grounding; Removable cable armor end stop accommodates larger insulated conductors; Superior pull out prevention; Compact slim profile; Reduced installation time (no disassembly required); Widest cable acceptance range; Re-usable design; Additional integral deluge proof seal for protection in extreme offshore and onshore environments; Stainless steel grounding spring; LSF-TPE (halogen free) bushing; Nylon end stop washer; Viton o-ring |
Simplified two piece design |
Integral 'O' ring face seal providing - 4X and IP66 |
Independent sealing and armor clamping |
Removable cable armor end stop accommodates larger insulated conductors |
Superior pull-out prevention |
Compact slim profile |
Reduced installation time |
Widest cable acceptance range |
Re-usable design |
Additional integral deluge proof seal for protection in extreme offshore and onshore environments |
Aluminum connectors 1/2 in, 3/4 in and 1 in supplied with zinc plated steel locknut |
2.95 in across corner Flat x 3.19 in across corner |
1.79 - 2.21 in cable armor diameter |
1.06 in thread length |
2.64 in L nominal assembly |
Copper Free Aluminum |
