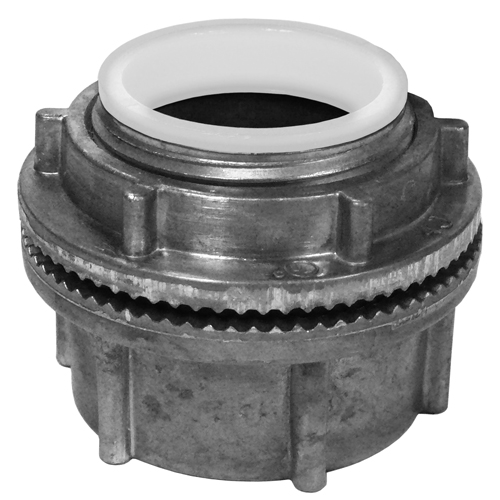

Appleton® HUB400DN NEER™ HUB Conduit Hub, 4 in, For use with IMC/Rigid Conduit, Die Cast Zinc
Conduit Hubs
516694
MFG #: HUB400DN
Appleton™
100.10000
/ ea
We offer a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. threaded and threadless, insulated or uninsulated non-insulated, watertight or general purpose, our conduit fittings, straps and accessories are available in all the sizes and configurations required to connect and support rigid conduit and to bond it to virtually any type of junction box or enclosure.
- http://www.egseg.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)
- Spec Sheet URL - 11301_ID-SPE-v1-watertight-hub-zinc-dc-appleton.pdf(Spec Sheet URL)
- Seller Home Page URL - home.aspx(Seller Home Page URL)
- Spec Sheet URL - catalog-pages-zinc-diecast-watertight-hubs-en-588952.pdf(Spec Sheet URL)
- Applications
- Features
| Used to Connect Rigid or IMC Conduit to a Threadless Opening in an Enclosure |
| 4 IN Trade Size Hub, Hole Dia. Min 4.48 IN, Hole Dia. Max 4.67 IN, Panel Thickness Min. 0.06 IN, Panel Thickness Max. 0.31 IN, Insulated Throat |
| Buna-N o-ring, polycarbonate insulator, mild steel ground screw |
| Insulated throat, rated up to 105 deg C (221 deg F), prevents wire abrasion |
| Integral o-ring provides watertight seal |
| Grounding version provides positive ground for external conductor |
| Unique profile permits easy wrenching |
| Smooth, accurately tapped threads facilitate installation |
| Watertight and corrosion resistant |
| NEMA types 2, 3, 3R, 4, 4X, 5, 12, 13 |
| May be used in wet or dry locations, indoors or outdoors |
| 4.48 - 4.67 in hole diameter |
| 0.06 - 0.31 in panel thickness |
| 4.63 in knockout hole size |
