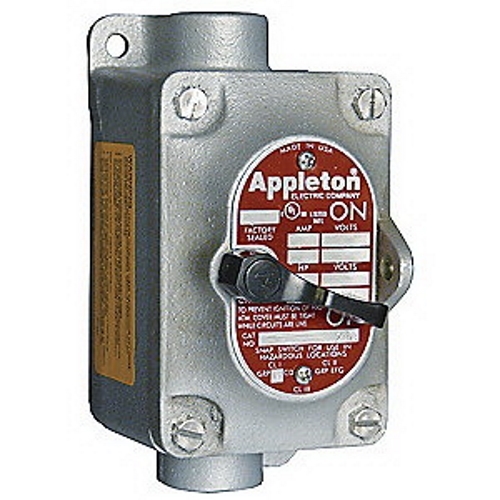

Appleton® EDSC175F1A Unilet® EDS Feed Through Tumbler Switch Control Station, 120/277 VAC, 20 A, 1 Operator, NEMA 3/7CD/9EFG
Tumbler-Snap Switch Control Stations
941053
MFG #: EDSC175F1A
Appleton™
377.68000
/ ea
- http://www.appletonelec.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)
- Owners Manual URL - Appleton_EDS110_F1_Manual.pdf(Owners Manual URL)
- Spec Sheet URL - eds-switch-appleton.pdf(Spec Sheet URL)
- Warranty 1 URL - WAR_EGS_Terms_Conditions_Brand_Policies.pdf(Warranty 1 URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
| For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present |
| Corrosion resistant, pad lockable in the on or off position; Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head cap screws for attaching cover to mounting enclosure; Each handle has close-tolerance threaded stainless steel shaft to meet explosionproof requirements; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads; On/off legend marking |
| Enclosures have external mounting lugs for ease of mounting |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Enclosures furnished with internal ground screw |
| Factory sealed switches are designed to a UL Standard so that any arcing devices are contained within an explosionproof labyrinth switch (standard switch and sealing chamber on select models) |
| Tumbler switch devices are approved for installation without additional external sealing fittings |
| 20 Amp 4-way and all 30 Amp models utilize a switch enclosed in separate sealing chamber |
| Smooth double-face, accurately ground surfaces on sealing chamber flange mate with cover and body to provide positive flame-tight construction |
| Sealing chamber has prewired factory sealed pigtail leads to switch |
| Corrosion resistant, strong stainless steel hex head cap screws attach cover/body/sealing chamber assembly for approved flame-tight construction |
| Threaded stainless steel operating handle provides positive Corrosion resistant operation |
| Choice of front-operating or side rocker arm handle-each may be locked in ON or OFF position |
| 1 hp at 120 VAC, 2 hp at 240 VAC |
| Nylon 6/6 Actuator |
| 3/4 in Hub |
| Explosionproof, dust-ignitionproof, hazardous location |
