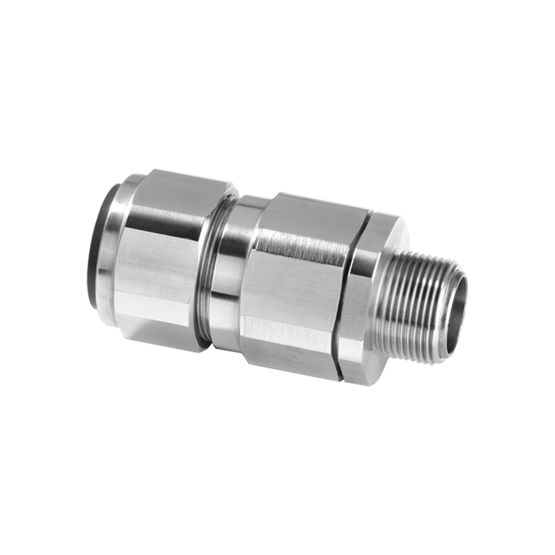

Appleton® 2016PX2KX0755 PX2KX CABLE GLAND
SKU702540
MFGR #2016PX2KX0755
Your Cost: $106.40/ea
Cable Gland, Type Straight, Thread Size 3/4 Inch NPT, Constructional Feature Explosionproof, Cable Type Wire Braid Armored, Jacketed, Marine Shipboard Cable, Cable Outer Diameter 0.24 to 0.45 Inch, Material Nickel Plated Brass, Enclosure NEMA 4X, IP66/IP67/IP68, Approval UL 2225, CSA C22.2, ATEX/IECEx, Applicable Standard IEC 60079-0/60079-1/60079-7/60079-15/60079-31, Seal Material Low Smoke Fume Thermoplastic Elastomer, Epoxy Putty, Thread Size 0.59 Inch L, Maximum Cable Bedding Diameter 0.24 Inch, Maximum Number of Cores 0.43 Inch, Weight 0.2 Kg
Cable Gland, Type Straight, Thread Size 3/4 Inch NPT, Constructional Feature Explosionproof, Cable Type Wire Braid Armored, Jacketed, Marine Shipboard Cable, Cable Outer Diameter 0.24 to 0.45 Inch, Material Nickel Plated Brass, Enclosure NEMA 4X, IP66/IP67/IP68, Approval UL 2225, CSA C22.2, ATEX/IECEx, Applicable Standard IEC 60079-0/60079-1/60079-7/60079-15/60079-31, Seal Material Low Smoke Fume Thermoplastic Elastomer, Epoxy Putty, Thread Size 0.59 Inch L, Maximum Cable Bedding Diameter 0.24 Inch, Maximum Number of Cores 0.43 Inch, Weight 0.2 Kg
ARRA Compliant N Buy American Compliant N Cable Type Wire Braid Armor/Jacketed/Marine Shipboard Cable Catalog Number 2016PX2KX0755 Connection Type 3/4 in NPT Country of Origin GB Currency USD EU RoHS Indicator C Gross Weight Per Pack 0.6500 lb Gross Weight per Pack Metric 0.29 Gross Weight UOM Metric kg Height 0.14 in Height [Metric] 3.4290 mm Length 16.00 in Length [Metric] 40.6400 cm Series PX2KX Type Straight UNSPSC 39121431 UPC 11 78138125040 UPC 12 781381250405 Width 11.50 in Width [Metric] 29.2100 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Cable Openings 0.24 to 0.45 in Finish Nickel Plated Material Brass Trade Size 2016 Connector provides an environmental seal on the cable outer jacket and an explosionproof compound barrier seal around the cable inner cores Connector provides mechanical cable retention and electrical continuity via armor termination PX2KX forms part of a comprehensive connector range for marine shipboard and IEE45 armored cables Armor termination removable armor cone and ring Sealing area: displacement seal concept Low smoke fumes thermoplastic elastomer seal Epoxy putty Entry thread seal not supplied Constructional feature explosionproof Optional 3/4 in NPT connection
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | N |
| Buy American Compliant | N |
| Cable Type | Wire Braid Armor/Jacketed/Marine Shipboard Cable |
| Catalog Number | 2016PX2KX0755 |
| Connection Type | 3/4 in NPT |
| Country of Origin | GB |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.6500 lb |
| Gross Weight per Pack Metric | 0.29 |
| Gross Weight UOM Metric | kg |
| Height | 0.14 in |
| Height [Metric] | 3.4290 mm |
| Length | 16.00 in |
| Length [Metric] | 40.6400 cm |
| Series | PX2KX |
| Type | Straight |
| UNSPSC | 39121431 |
| UPC 11 | 78138125040 |
| UPC 12 | 781381250405 |
| Width | 11.50 in |
| Width [Metric] | 29.2100 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Cable Openings | 0.24 to 0.45 in |
| Finish | Nickel Plated |
| Material | Brass |
| Trade Size | 2016 |
| Connector provides an environmental seal on the cable outer jacket and an explosionproof compound barrier seal around the cable inner cores |
| Connector provides mechanical cable retention and electrical continuity via armor termination |
| PX2KX forms part of a comprehensive connector range for marine shipboard and IEE45 armored cables |
| Armor termination removable armor cone and ring |
| Sealing area: displacement seal concept |
| Low smoke fumes thermoplastic elastomer seal |
| Epoxy putty |
| Entry thread seal not supplied |
| Constructional feature explosionproof |
| Optional 3/4 in NPT connection |
