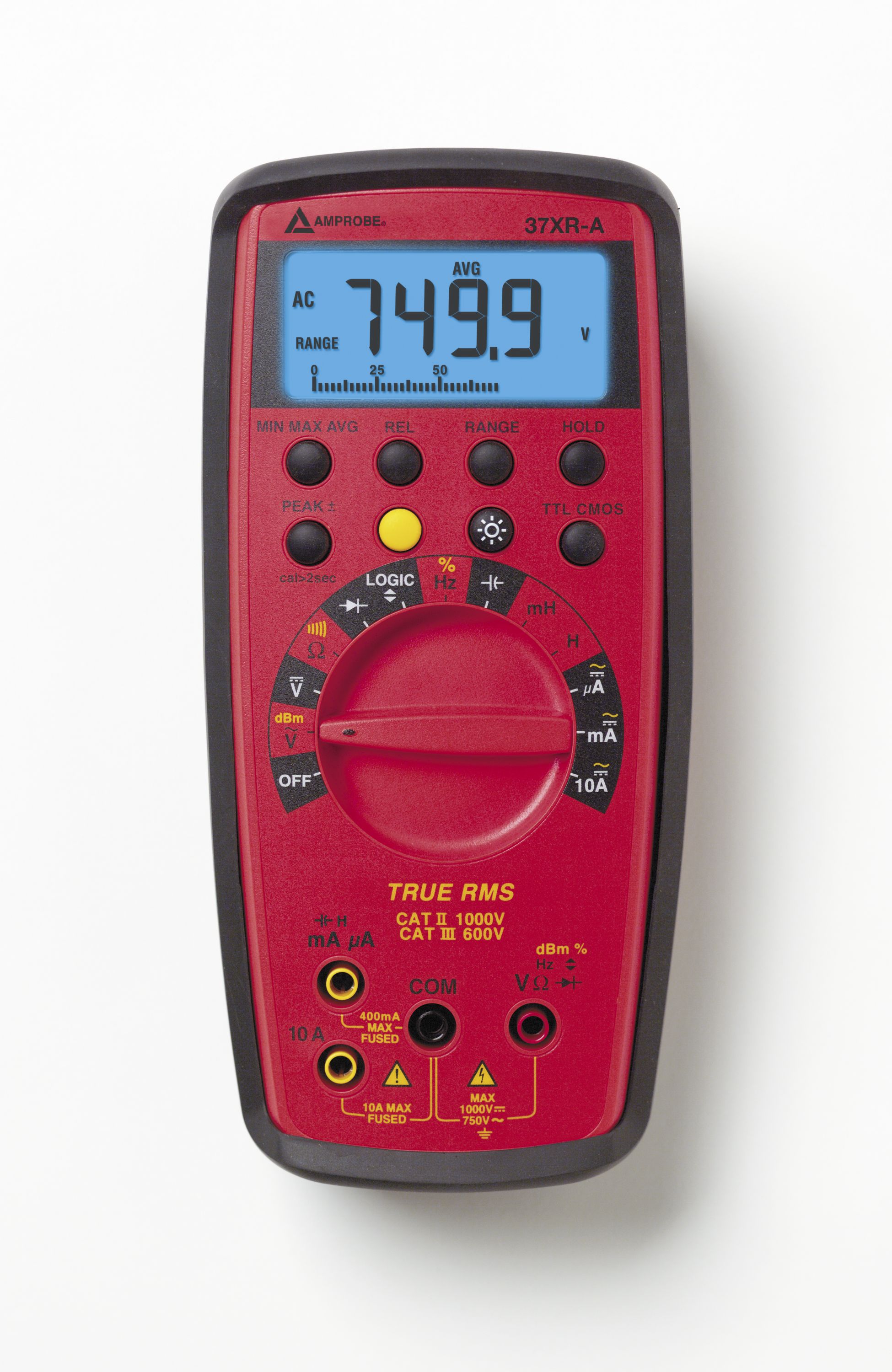

Amprobe® VolTect™ 37XR-A Compact Digital Multimeter, 1000 VDC, 750 VAC, 10A, 40 MOhm, 750 VAC/1000 VDC, 10 A, 40 MOhm
Multimeters
756373
MFG #: 37XR-A
Amprobe
320.99000
/ ea
Amprobe 37XR-A Digital Multimeter offers true-rms measurement along with component and logic testing for troubleshooting electronics at the bench or on the job site
- Catalog URL - IDW_DOCUMENT_63e4a544ba8ccd7214b56e8b7317485e814ee6d30da587268661f2019f8055db.pdf(Catalog URL)
- http://www.fluke.com(Seller Home Page URL)
- http://www.fluke.com/(Seller Home Page URL)
- Install Instructions URL - ID-INS-37XR-A.pdf(Install Instructions URL)
- Line Drawing URL - IDW_DOCUMENT_1525153030463.png(Line Drawing URL)
- Spec Sheet URL - 11095_Spec sheet reference.pdf(Spec Sheet URL)
- Tech Drawing URL - 11095_YLFPH1N8BQ7JSMWE.jpg(Tech Drawing URL)
- Tech Drawing URL - 37xr-a.htm?PID=73036(Tech Drawing URL)
- Video - https://www.youtube.com/embed/mRwsxmn2P-s(Video)
- Features
| Backlight, True-rms with component and logic test |
| Backlight, True-RMS with component and logic test |
| Input warning tone when test leads are in wrong jack |
| Continuity beeper |
| Maximum/minimum, average, relative, peak and data hold |
| Auto power off to save battery life |
| Separate door for easy battery and fuse access |
| Magne-Grip™ holster with magnetic hanging strap |
| 2/s nominal display update rate |
| +/-2% RDG + 10 digits at 750 VAC accuracy |
| +/-0.5% RDG + 8 digits at 1000 Ohm to 1000 kOhm, +/-1% RDG + 10 digits at 10 MOhm, +/-2% RDG + 10 digits at 40 MOhm resistance accuracy |
| +/-3% RDG + 10 digits at 40 nF to 400 uF, +/-3% RDG + 5 digits at 400 nF to 40 uF capacitance accuracy |
| +/-0.1% RDG + 5 digits frequency accuracy |
| +/-0.5% RDG + 10 digits, +/-0.5% RDG + 5 digits, +/-1.5% RDG + 10 digits DC current accuracy |
| +/-1.5% RDG + 10 digits, +/-2% RDG + 10 digits, +/-2.5% RDG + 10 digits AC current accuracy |
| Capacitance - 40 nF, 400 uF with accuracy of +/- (3% rdg + 10 dgts), 400 nF, 4 uF, 40 uF with accuracy of +/- (3% rdg + 5 dgts) |
