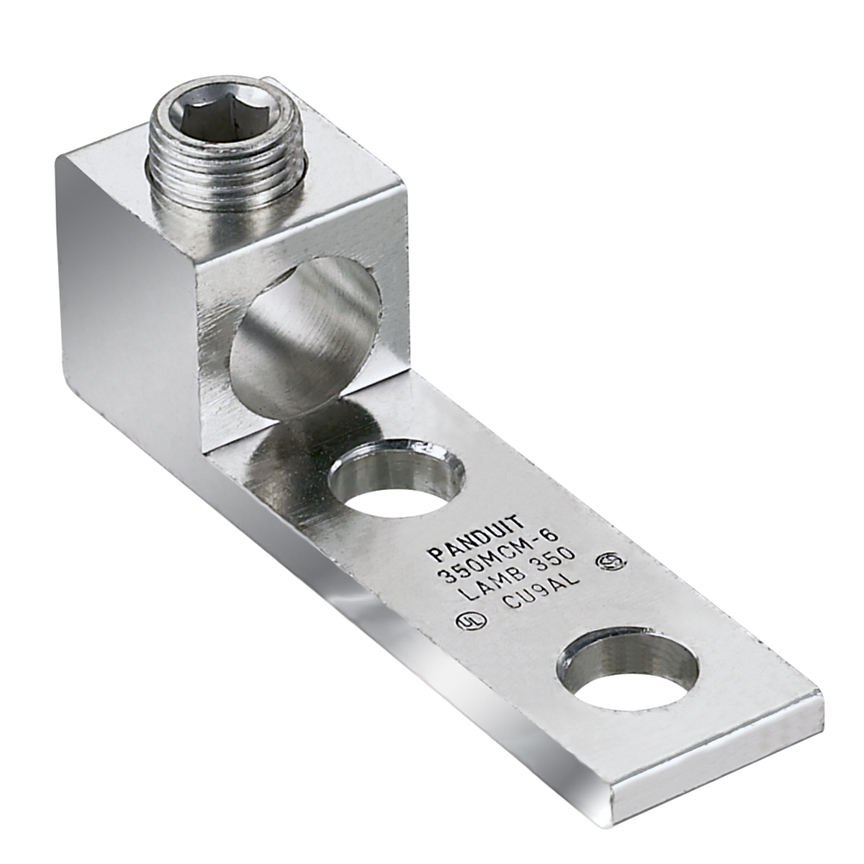

Aluminum Mechanical Lug, 2 Hole, 1 Barre
Mechanical Terminal Lugs
403556
MFG #: LAMB600-12-3Y
Panduit®
3725.39000
/ ea
Panduit offers a broad variety of mechanical lugs, splices, and split bolt connectors suitable for a wide range of electrical terminations using code conductor. Designed to be reusable and installed without special tooling, Pan-Lug Mechanical Connectors provide quality performance, ease of installation, and lowest installed cost.
- Full Eng Drawing URL - C-PCLAM2A1000-58-6Y--ENG.pdf(Full Eng Drawing URL)
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - 10965_WCBPUQTR6KOXEV58.pdf(Install Instructions 1 URL)
- Tech Drawing URL - 10965_9UC13SNYI6R0K2O8.pdf(Tech Drawing URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - C41568_03.pdf(Spec Sheet URL)
- Tech Drawing URL - C41568_03.pdf(Tech Drawing URL)
- Applications
- Features
| Stranded Aluminum or Copper Code Conductor |
| Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance |
| Wide wire range taking capability minimizes inventory requirements |
| Inspection window to visually assure full conductor insertion |
| Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector |
| Tin plated to inhibit corrosion |
| Compact design saves space |
| Tin-plated to inhibit corrosion |
| Compact design saves space |
| 2 stud of 1/2 in |
| Use of panduit oxide inhibiting joint compound (CMP-100) is recommended for pad to pad and conductor connections |
| 3/Pack |
