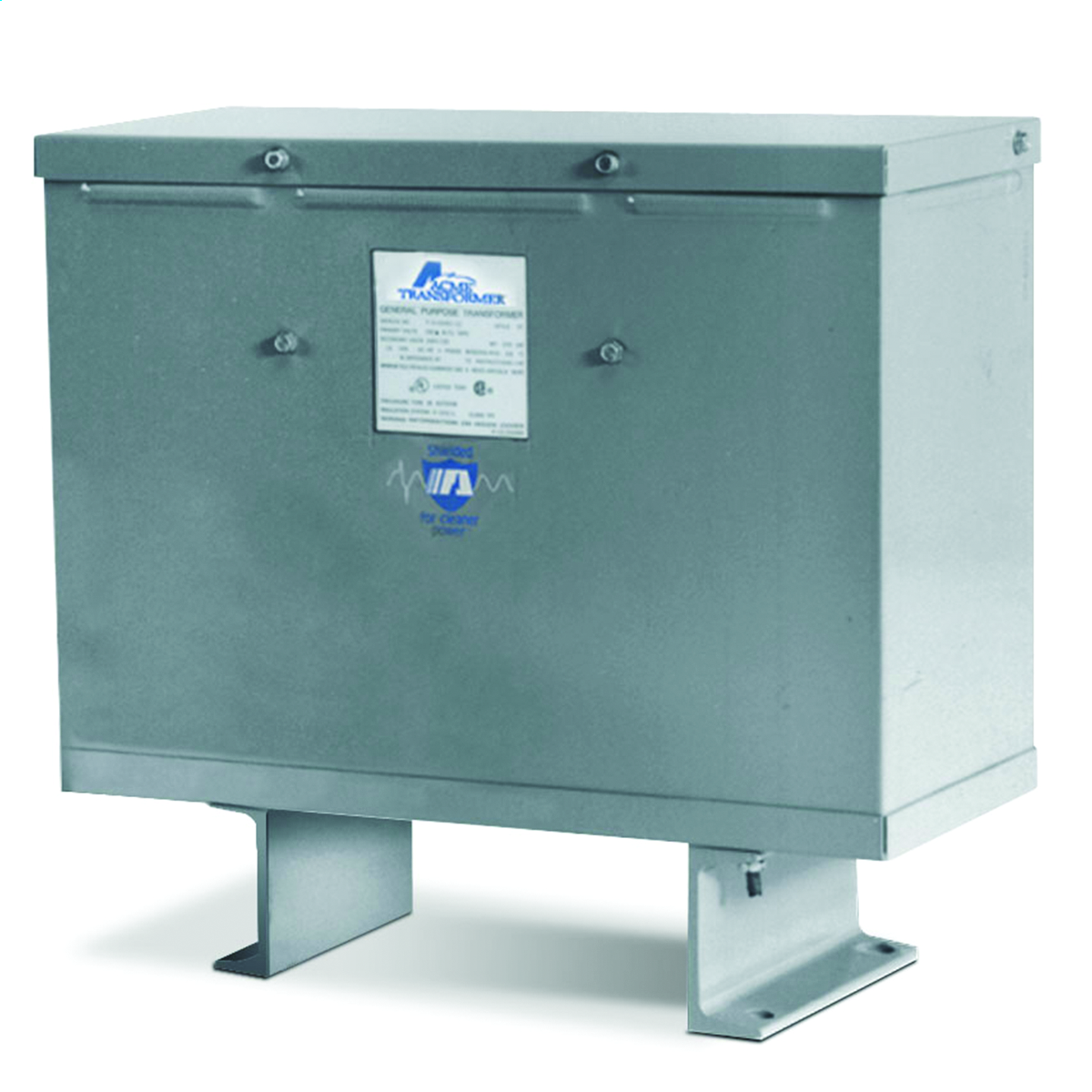

Acme Electric® T3792711S Encapsulated Distribution Transformer, 208 VAC Delta Primary, 208Y/120 VAC Secondary, 15 kVA
Isolation Transformers
381025
MFG #: T3792711S
Acme Electric
3356.26000
/ ea
Acme Electric® Distribution Transformer, Encapsulated, 208 VAC Delta Primary, 208Y/120 VAC Secondary, 15 kVA, 60 Hz, 3 Phase, (2) 5% BNFC Taps, Lead Wire, Floor Mount, 180 deg C, NEMA 3R, 115 deg C, 316 Stainless Steel Housing, 18.86 in H x 20.3 in W x 9.03 in D
- Install Instructions 1 URL - 11112_GMEQCKR8X4L35ATS.pdf(Install Instructions 1 URL)
- Safety Data Sheet URL - HCC_SDS.pdf(Safety Data Sheet URL)
- Seller Home Page URL - en(Seller Home Page URL)
- Spec Sheet URL - 11112_Z9K40SFUH8PAVJ5X.pdf(Spec Sheet URL)
- Tech Drawing URL - T-3-79271-1S.pdf(Tech Drawing URL)
- Warranty URL - WAR_product_warranty_information.pdf(Warranty URL)
- Applications
- Features
| Encapsulated |
| Ground studs for use with non-metallic conduit |
| Fully encapsulated core and coil |
| Copper lead wire terminations |
| Quite operation with sound levels below NEMA standards |
| Electrostatic shield for enhanced protection |
| High efficiency and excellent regulation |
| Wiring connections can be made outside of wiring compartment due to the use of flexible leads |
| Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible from the front |
