Acme Electric® T181066 Encapsulated Buck Boost Transformer, 240/480 VAC Primary, 24/48 VAC Secondary, 0.75 kVA, 50/60 Hz
Buck Boost Transformers
68499
MFG #: T181066
Acme Electric
364.33000
/ ea

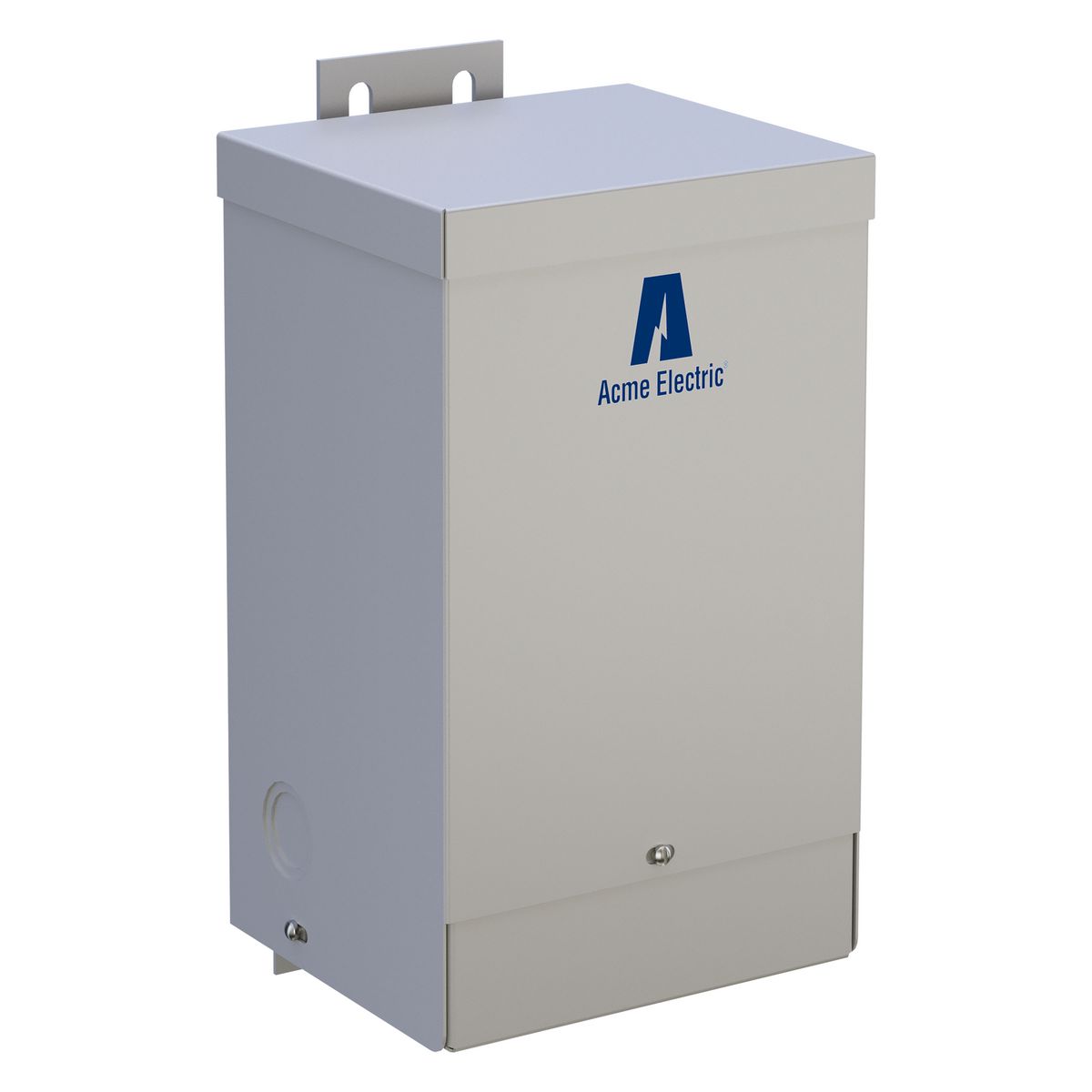

Acme Electric® Buck Boost Transformer, Encapsulated, 240/480 VAC Primary, 24/48 VAC Secondary, 0.75 kVA, 50/60 Hz, 1 Phase, 31.2/15.6 A Maximum, Wire Lead Screw, Wall Mount, Class H/180 deg C, NEMA 3R, 115 deg C, Steel Housing, 9.68 in H x 4.75 in W x 4.51 in D
- Catalog URL - IDW_DOCUMENT_1480880942933.pdf(Catalog URL)
- Install Instructions 1 URL - 11112_BKFE3NA6Q58XOG91.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 11112_GMEQCKR8X4L35ATS.pdf(Install Instructions 1 URL)
- Safety Data Sheet URL - HCC_SDS.pdf(Safety Data Sheet URL)
- Seller Home Page URL - en(Seller Home Page URL)
- Spec Sheet URL - 11112_ISPVCFHG0XWY2ROZ.pdf(Spec Sheet URL)
- Tech Drawing URL - Acme_BB2_TECHNICAL_DRAWINGS.dwg(Tech Drawing URL)
- Applications
- Features
| For Low Voltage Lighting Or Control Circuitry |
| Encapsulated core and coil; Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 - 20 PCT; The most common example is boosting 208 - 230 V, usually to operate a 230 V motor such as an air-conditioner compressor, from a 208 V supply line; Buck-boost transformers are an economical way to correct a potentially very serious problem; Anytime a line voltage change in the 5 - 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense; 10-year limited warranty |
| Easily configured for numerous applications |
| Lower cost solution |
| 5-10 times increase in kVA |
| Encapsulated core and coil |
| Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20 PCT |
| The most common example is boosting 208 - 230 VAC, usually to operate a 230 VAC motor such as an air-conditioner compressor, from a 208 VAC supply line |
| Buck-boost transformers are an economical way to correct a potentially very serious problem |
| Anytime a line voltage change in the 5 to 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense |
| Single or three phase applications |
| Boost voltage 15.09 kVA/31.25 A 460 VAC line and 483 VAC load |
| Buck voltage 16.5 kVA/34.38 A 504 VAC line and 480 VAC load |
| 31.2 A at 24 VAC, 15.6 A at 48 VAC power rating |
