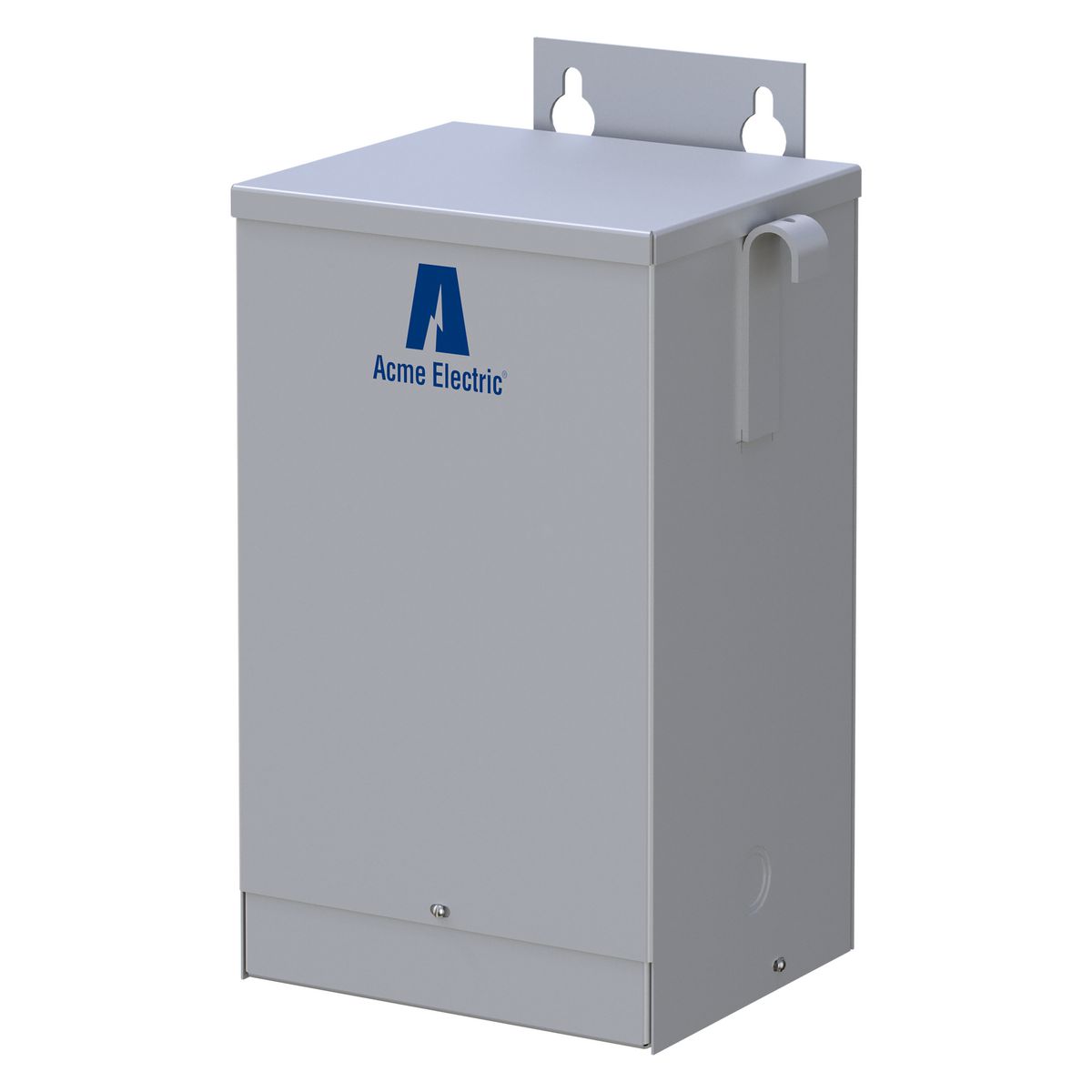

Acme Electric® GP123000S Dry Distribution Transformer, 277/480 VAC Primary, 208/277 VAC Secondary, 3 kVA, 60 Hz, 1 Phase
Isolation Transformers
1170501
MFG #: GP123000S
Acme Electric
668.40000
/ ea
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
- Catalog URL - IDW_DOCUMENT_1480880033889.pdf(Catalog URL)
- Install Instructions 1 URL - 11112_GMEQCKR8X4L35ATS.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 11112_HP5W1VA2YL0ZOUM3.pdf(Install Instructions 1 URL)
- Safety Data Sheet URL - HCC_SDS.pdf(Safety Data Sheet URL)
- Seller Home Page URL - en(Seller Home Page URL)
- Spec Sheet URL - 11112_AMN3ODX0TUI149KG.pdf(Spec Sheet URL)
- Tech Drawing URL - GP123000S.dwg(Tech Drawing URL)
- Features
| Encapsulated core and coil; Shielded for cleaner power; Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration; Quiet operation with sound levels well below NEMA standards; Regulation: 2.7 PCT at 100 PCT PF; Impedance: 3.12 PCT; No load losses: 103.8 WTT; Full load losses: 185.1 WTT; 10-year limited warranty |
| Encapsulated core and coil |
| Shielded for cleaner power |
| Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration |
| Quiet operation with sound levels well below NEMA standards |
| 2.7 PCT at 100 PCT PF regulation |
| 3.12 PCT impedance |
| 103.8 WTT no load losses |
| 185.1 W full load |
| Steel enclosure |
| Air cooled/dry cooling |
| One winding primary, one winding secondary configuration |
| Aluminum winding |
| Epoxy encapsulated |
