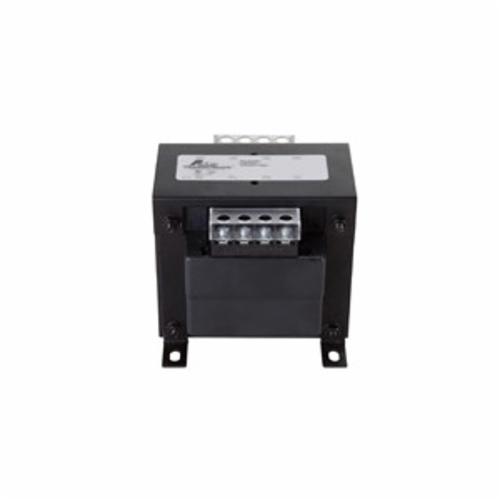

Acme Electric® CE040250 CE Series Industrial Control Transformer, 380/400/415 VAC Primary, 110/220 VAC Secondary, 250 VA
Control Transformers
PDW~1602387
MFG #: CE040250
Acme Electric
198.15000
/ ea
The Acme Electric AE and CE Series Industrial Control Transformers are designed specifically for machine tool control circuit applications. These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage. Designed to meet or exceed the demands of international standards, combined with the full breadth of product offering, the AE and CE Series Transformers from Acme Electric are the ideal solution for your industrial control applications.
- Features
| 250 VA |
| Epoxy encapsulated design protects core and coil assembly from potentially damaging contaminants |
| Integrally molded terminal blocks with isolation barriers to prevent arc over, terminal blocks allow full access for ring terminals for easy installation and solid termination |
| Heavy gauge steel mounting feet |
| Available factory or field installed fuse blocks provide integral fusing on the primary or primary and secondary |
| Dual labeling for easy product identification when equipped with a fuse block |
| 0.2 x 0.4 in mounting slot |
| Encapsulated core and coil |
| These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage |
| Transformer enclosure temperature shall not exceed 65 deg C plus the ambient |
| Transformer shall incorporate an electrostatic shield for the attenuation of voltage spikes, line noise and transients |
| Transformer coils are typically wound with aluminum or copper for increased insulation life, cooler operation and lower losses |
| The AE and CE series design improves the dissipation of the heat away from the core and coil assembly providing cooler operation |
| In addition, the AE and CE series industrial control transformers seal the transformer's windings and internal terminations within an epoxy encapsulated encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants |
| Furthermore, Acme compact design helps minimize the mounting footprint, providing more flexibility in applications where space is a premium |
