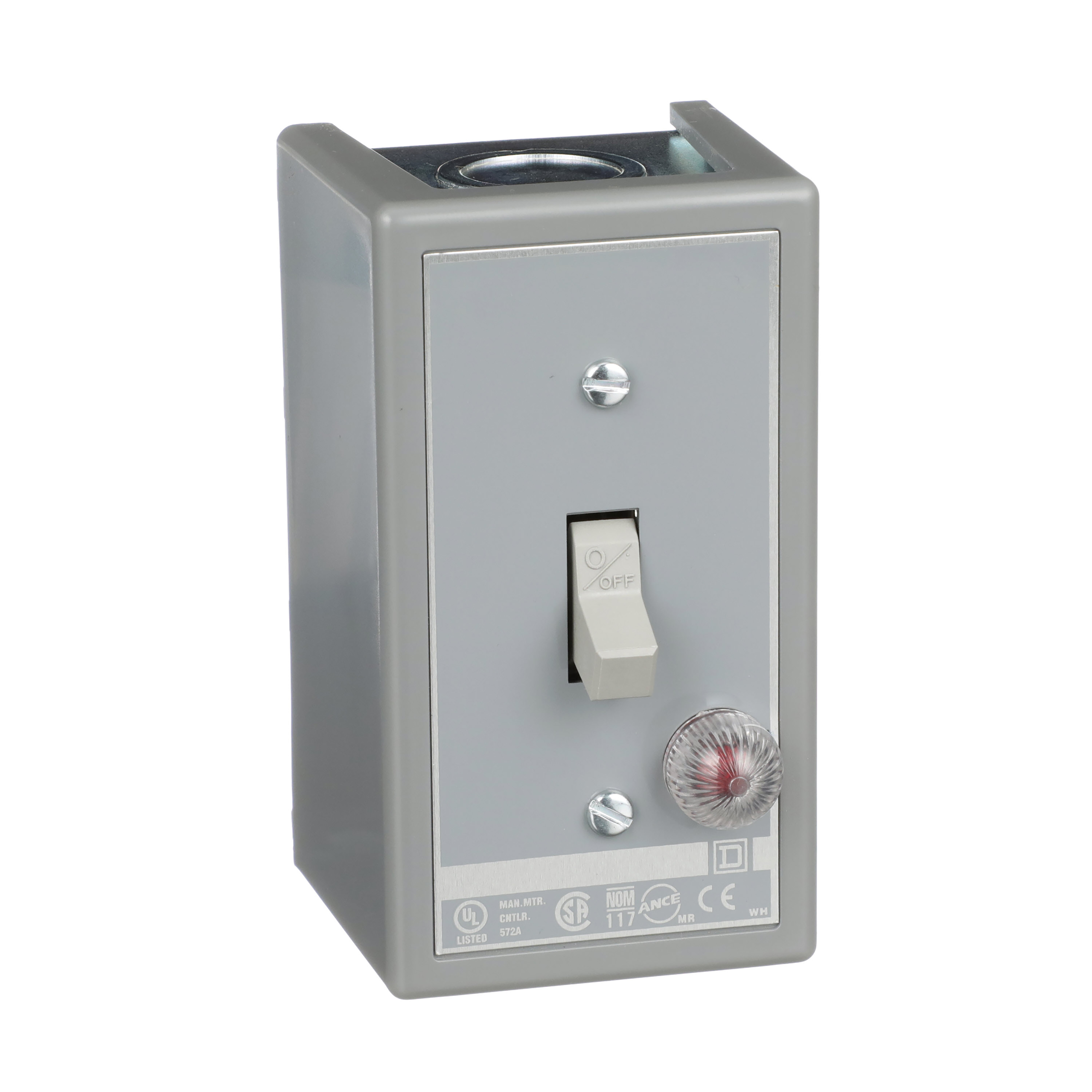

Square D™ 2510KG1A MANUAL SWITCH 600VAC K
AC Motor Starting Switches
33815
MFG #: 2510KG1A
Square D™
145.04000
/ ea
- Action: Non-Reversing
- Actuator: Toggle
- Alternate Catalog Number: 2510KG1A
- Application: PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: 2510KG1A
- Connection: Screw Clamp
- Country of Origin: MX
- Currency: USD
- Current Rating: 30 A
- Dimensions: 2.44 in W x 2.75 in D x 4.25 in H
- Enclosure: NEMA 1
- Environmental Conditions: General Purpose
- EU RoHS Indicator: Y
- Gross Volume Per Pack: 36.66
- Gross Volume per Pack Metric: 600.75
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 0.8500 lb
- Gross Weight per Pack Metric: 385.60
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536504000
- Height: 2.50 in
- Height [Metric]: 6.4000 cm
- Indicator: RED
- Item Group: 21102
- Length: 4.84 in
- Length [Metric]: 12.4000 cm
- Number Of Phases: 1
- Number Of Poles: 2
- Returnable: Y
- Series: 2510
- Size: 2.44 IN,2.75 IN,4.25 IN in
- Standard: UL LISTED FILE E42243 CCN NLRV-CSA LR25490 CLASS 3211 05
- Sub Brand: K
- Substitute Product Catalog Number: 9999PL11G
- Type: Type K
- UNSPSC: 39121521
- UPC 11: 78590155448
- UPC 12: 785901554486
- Warranty Description: Contractual Warranty:18 months
- Width: 3.08 in
- Width [Metric]: 7.9000 cm
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Amperage Rating: 30 A
- Power Rating: 1 hp at 90 VDC/1.5 hp at 230 VDC/2 hp at 115 VDC/115/230 VAC/3 hp at 460/575 VAC
- Voltage Rating: 600 VAC/230 VDC
Square D 2510KG1A MANUAL SWITCH 600VAC K+OPTIONS,0.5 and 0.75 Inch Knockouts (top and bottom) Screw Clamp,1 phase,230 V DC-600 V AC,3 hp 460 V AC-3 hp 575 V AC-1 hp 90 V DC-2 hp 115 V DC-2 hp 115 V AC-2 hp 230 V AC-1.5 hp 230 V DC,30 A,K,NEMA 1 painted sh
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8089616360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=2510KG1A(3D Rendering URL)
- Brochure URL - 11003_KHM5A8QDVJSLR0YN.pdf(Brochure URL)
- Brochure URL - 11003_RV0N78ZHFGT9KU45.pdf(Brochure URL)
- Catalog URL - Square_D_2510FO3P_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=25100024.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_I905SDGWE6CV1JPT.pdf(Install Instructions 1 URL)
- ROHS Compliance URL - Square_D_2510KG1A_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_MXZD19VFKPOAL8TQ.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_08KLJTIGB3DS1O5A.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_NWSZFVQMUJBH85PI.zip(Tech Drawing URL)
- Applications
- Features
| PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY |
| RED INDICATOR, 115 V |
| Suitable for use with 3-ph AC motors rated up to 20 hp |
| Type K reversing manual switches provide a compact means of starting, stopping and reversing AC motors where overload protection is not required or is provided separately |
| Type K two-speed manual switches may be used with separate winding 3 or 1 ph AC motors where overload protection is not required or is provided separately |
| Suitable for use with 3-ph squirrel cage motors and for single-phase motors which can be reversed by reconnecting motor leads |
| Two switches are used, one to connect the motor for forward rotation and one for reverse |
| Two switches are employed to give "on-off" control in each speed |
| Economical on/off solution |
| Simple design |
| Easy to install |
| 1/2 and 3/4 in knockouts top and bottom screw clamp |
