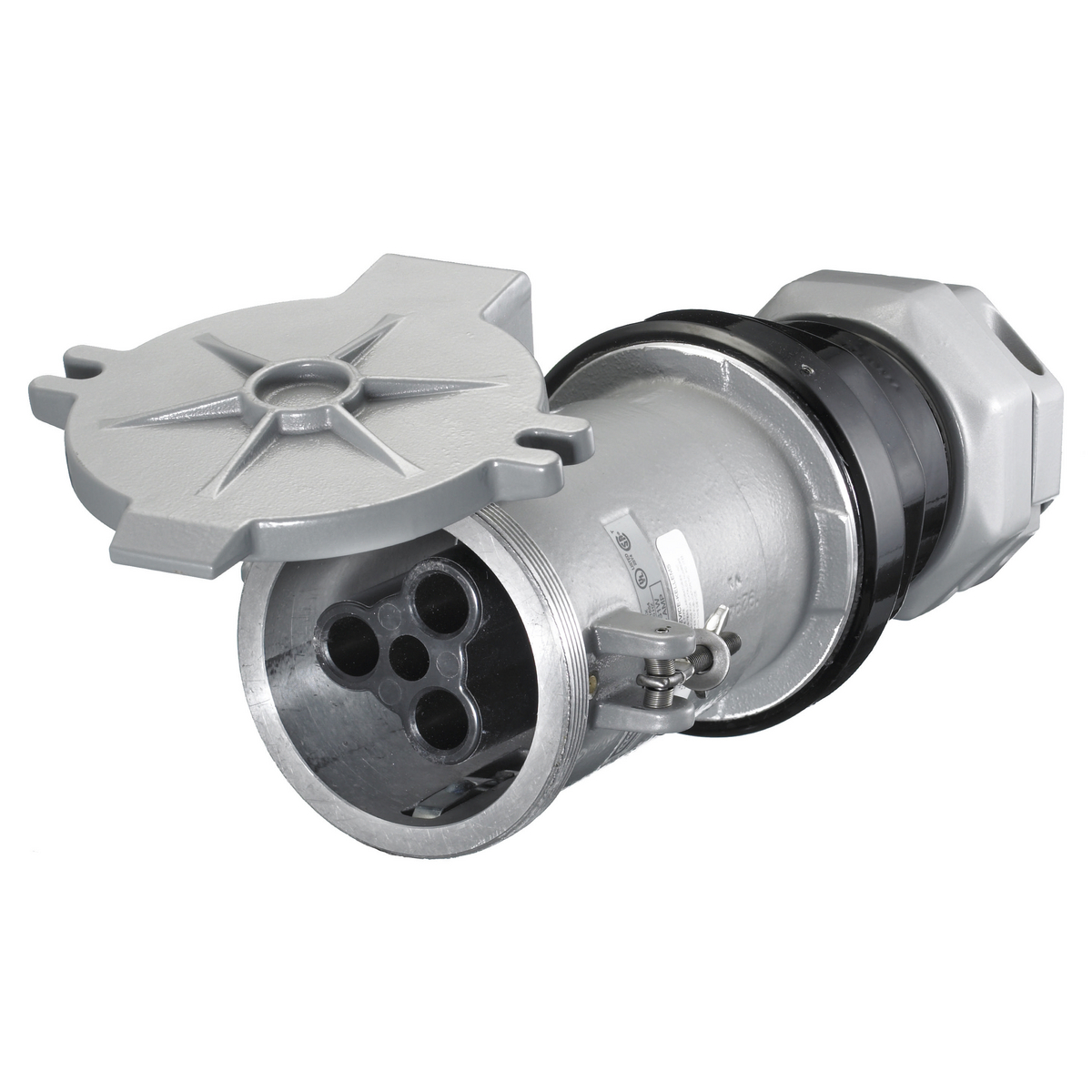

Hubbell® Insulgrip® HBL4200CS1W Watertight Pin and Sleeve Connector, 600 VAC/250 VDC, 200 A, 3 Poles, 4 Wires, Black/Gray
Pin & Sleeve Connectors
228573
MFG #: HBL4200CS1W
Hubbell Wiring Device-Kellems
1796.12000
/ ea
- Application: Metallic with Nylon Shroud
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: HBL4200CS1W
- Conductor Range: #1 AWG to #250 MCM
- Connection: Pressure Screw Terminal
- Country of Origin: US
- Currency: USD
- Dimensions: 13.65 in L x 6.51 in W
- Environmental Conditions: Watertight
- EU RoHS Indicator: Y
- Grade: Industrial
- Gross Weight Per Pack: 13.1000 lb
- Gross Weight per Pack Metric: 5.76
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536694020
- Height: 6.20 in
- Height [Metric]: 15.7480 cm
- Insulation: Insulated Body
- Length: 15.90 in
- Length [Metric]: 40.3860 cm
- Material: Composite
- Mounting: Cord Mounted
- NEMA Rating: Non-NEMA
- Number Of Conductors: 4-Wire Grounding
- Returnable: Y
- Size: Standard
- Standard: CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498UL 1682UL 1686CSA C22.2 File No. 182.1
- Sub Brand: Pin and Sleeve
- Temperature Rating: Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact. °C
- Terminal Type: Pressure Screw
- Type: Watertight Connector
- UNSPSC: 39121421
- UPC 11: 78358501146
- UPC 12: 783585011462
- Width: 8.20 in
- Width [Metric]: 20.8280 cm
- Stock Status: NONSTOCK
- Brand: Hubbell Wiring Device-Kellems
- Manufacturer: Hubbell
- Amperage Rating: 200 A
- Color: Black/Gray
- Number of Wires: 4
- Voltage Rating: 600 VAC/250 VDC
- Number Of Poles: 3
Hubbell® Insulgrip®Pin and Sleeve Connector, Watertight, 600 VAC/250 VDC, 200 A, 50/400 Hz, 3 Pole, 4 Wires, IP67 Enclosure, -40 to 75 deg C, Screw Terminal, Aluminum, Black/Gray, 7.39 in Dia x 13.65 in L
- Catalog URL - HUBBELL_HBL4200CS2W_Catalog.pdf(Catalog URL)
- Full Eng Drawing URL - Wiring_Device_Kellems_HBL4200PS1W_Technical_Drawing.pdf(Full Eng Drawing URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_5ANL9RJCHW37GMEZ.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537666405195.pdf(Install Instructions URL)
- Line Drawing URL - 11456_DGNF5L63IHWA4E1C.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_8943020-SPE-EN-1.pdf(Spec Sheet URL)
- Spec Sheet URL - 8943020-SPE-EN-1.pdf(Spec Sheet URL)
- Tech Drawing URL - IDW_DOCUMENT_1537663434168.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/ZP-jfAAABN0(Video)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Metallic with Nylon Shroud |
| Watertight |
| Watertight neoprene sealing glands for reliable seal |
| Spring loaded, gasketed cover for dust tight seal |
| Pin chamber confines arcing within the interior chamber |
| Neoprene gasket |
| Epoxy painted aluminum |
| Aluminum cover screw/rivet |
| Withstand 3000 VAC minimum dielectric withstand voltage |
| 600 VAC rms (minimum creepage and clearance distance of 6.4 mm, per UL 1682) maximum working voltage |
| Certified for current interrupting at full rated current |
| Identification and ratings are a permanent part of the device housing product identification |
| 1 to 2-1/2 in cord clamp range |
| Epoxy painted aluminum cord clamps |
| Neoprene grommet/glands |
| Nickel plated brass clamp nut |
| Stainless steel (300-series) cord clamp screws |
| Beryllium copper spring maintains high unit pressure on mating sleeves |
| Spring loaded gasket cover provides 4X seal while the device is not in use |
| Pin chamber confines arcing within the interior chamber |
