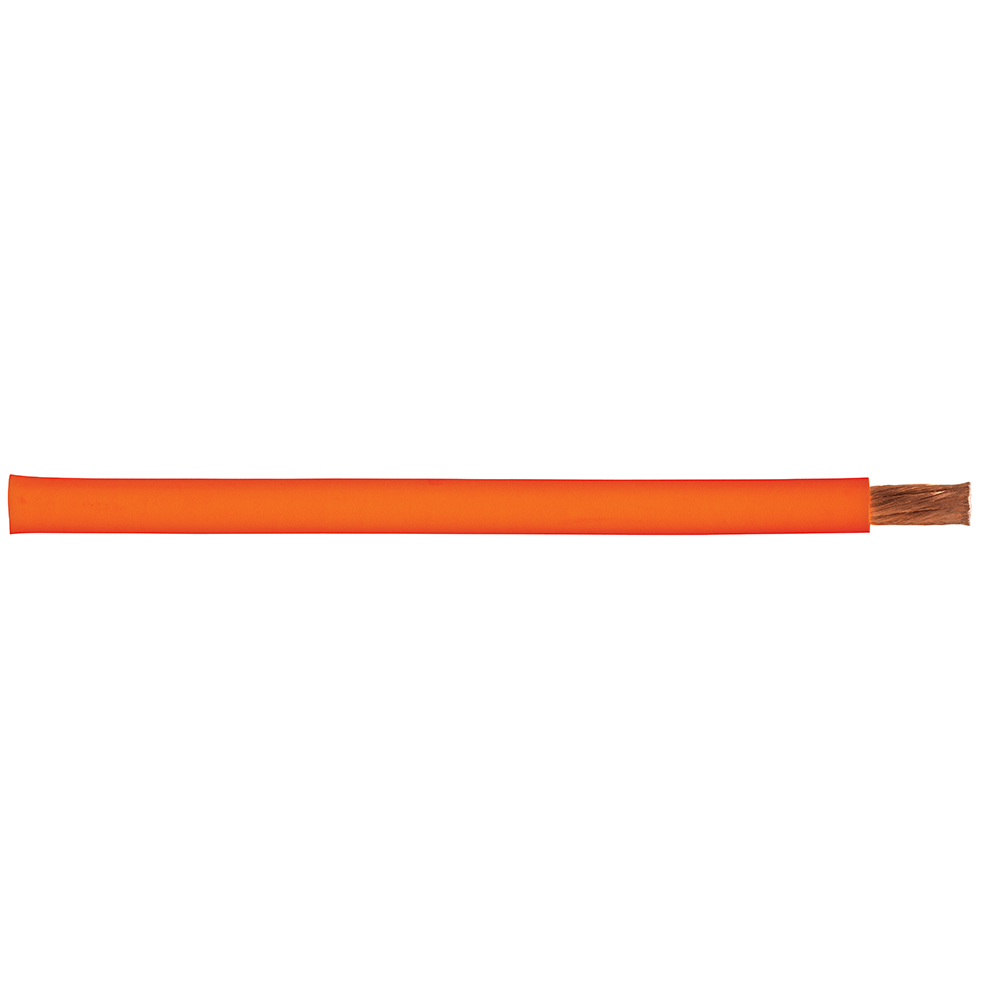

Carol® 01765.41.04 Super Vu-Tron... Welding Cable 90...C 600V UL/CSA RHH/RHW, 1 CLS M WELD 600V-Orange-1000 Reel
Welding Cables
983964
MFG #: 01765.41.04
Carol®
7055.75000
/ ft
- Amperage Rating: 220 A
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: 01765.41.04
- Color: Orange
- Conductor Material: Annealed Copper
- Country of Origin: USA
- Currency: USD
- EU RoHS Indicator: Y
- Gross Weight Per Pack: 354.0000 lb
- Gross Weight per Pack Metric: 160.57
- Gross Weight UOM Metric: kg
- Height: 21.00 in
- Height [Metric]: 53.3400 cm
- Jacket Color: Orange
- Jacket Material: Super Vu-Tron®
- Length [Metric]: 60.9600 cm
- Number Of Conductors: 1
- Outside Diameter: 0.53
- Standards: UL 854, CSA Certified, MSHA Approved, ASTM B172 Class M, RoHS Compliant
- Strands: 2090/34
- Sub Brand: Super Vu-Tron?®
- Temperature Rating: 90?°C
- Type: Type RHH/RHW
- UNSPSC: 26121524
- UPC 11: 07940741765
- UPC 12: 07940741765
- Width: 24.00 in
- Width [Metric]: 60.9600 cm
- Stock Status: NONSTOCK
- Brand: Carol®
- Manufacturer: General Cable Technologies
- Conductor Size: 1 AWG
- Conductor Type: Fully Annealed Stranded Bare Copper
- Length: 24.00 in
- Voltage Rating: 600 V
- Catalog 1 URL - Carol_76502_18_01_Catalog_1.pdf(Catalog 1 URL)
- Catalog URL - Carol_03702_35_10_Catalog.pdf(Catalog URL)
- http://www.generalcable.com(Seller Home Page URL)
- Spec Sheet URL - 10986_pg42_SVT_Welding_Cable_Types_RHH-RHW.pdf(Spec Sheet URL)
- Spec Sheet URL - pg42_SVT_Welding_Cable_Types_RHH-RHW.pdf(Spec Sheet URL)
- Applications
- Features
| • SCNDRY Voltage resistance welding leads • PWR-SPLY applications not exceeding 600Vs AC • Sizes 1/0 and larger for PERM wiring in COND or tray of 600V PWR supplies, hoists, cranes or other applications where FLEX PWR leads must be installed in COND, RCWYs, or trays |
| • UL Listed • CSA Certified • Excellent flexibility to last longer in flex applications • Abrasion-RST • Resists oils and solvents • Rated -50°C for use in cold environments • Weather-RST • Ozone-RST • Safety-colored for high visibility • Assured longer SVC, saving money in REPL costs, MAINT cost and downtime • MSHA Approved for flame resistance • Sunlight-RST |
| 6 AWG through 4/0 AWG fully annealed stranded bare copper per ASTM B-172 class M |
| Super Vu-Tron® orange jacket |
| Excellent flexibility to last longer in flex applications |
| Abrasion resistant |
| Resists oils and solvents |
| Rated -50 deg C for use in cold environments |
| Weather-resistant |
| Ozone-resistant |
| Safety-colored for high-visibility |
| Assured longer service life, saving money in replacement costs, maintenance cost and downtime |
| MSHA approved for flame resistance |
| Sunlight resistant jacket |
| Secondary voltage resistance welding leads |
| Power supply applications not exceeding 600 VAC |
| Sizes 1/0 and larger for permanent wiring in conduit or tray of 600 V power supplies, hoists, cranes or other applications where flexible power leads must be installed in conduit, raceways or trays |
