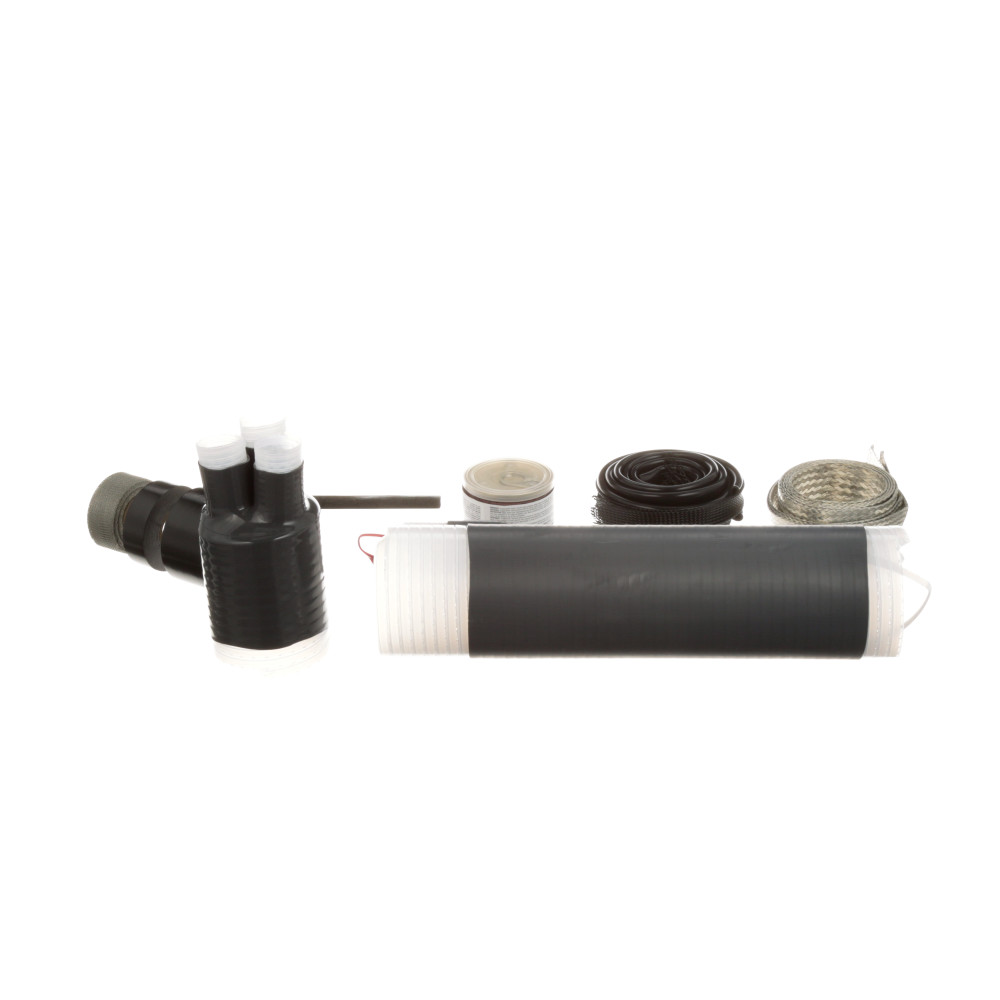

3M™ 7621-T-110-3G 7600-T-3G Cold Shrink QT-III Termination Kit, 3, Silicone Rubber, Black
Insulated Termination Kits
665765
MFG #: 7000145540
3M™
1327.32000
/ ea
- Alternate Catalog Number: 7621-T-110-3G
- Application: INDOOR
- ARRA Compliant: X
- Buy American Compliant: X
- Cable Type: Tape Shield; UniShield(R); Wire Shield
- Catalog Number: 7000145540
- Conductor Size: 1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 3/0 AWG
- Country of Origin: US
- Currency: USD
- EU RoHS Indicator: C
- Expiry|Spoilage Date Applicable Indicator: Y
- Gross Weight Per Pack: 6.0000 lb
- Gross Weight per Pack Metric: 2.72
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8546900000
- Height: 8.45 in
- Height [Metric]: 21.4630 cm
- Length: 15.96 in
- Length [Metric]: 40.5384 cm
- Material Composition Declaration: Contact 3M for information
- Number Of Terminals: 3
- Returnable: Y
- Series: 7600-T-3G
- Specifications: 5 kV, 8 kV, 15 kV, 110 kV BIL-Rated, 0.50 to 0.7 in OD Cable Insulation, 12 in Max Installed Length, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG Conductor Size
- Standard: IEEE
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantIEEE Certified
- Type: Cold Shrink QT-III
- UNSPSC: 13111200
- UPC 11: 05400743669
- UPC 12: 054007436690
- Voltage Rating: 5,000/8,000/15,000 V
- Width: 8.38 in
- Width [Metric]: 21.2852 cm
- Stock Status: NONSTOCK
- Brand: 3M™
- Manufacturer: 3M™
- Color: Black
- Number Of Pieces: 3
- Material: Silicon Rubber
- Suitable For Use With: Three Core Tape Shield, Wire Shield and UniShield® Cable
- Brochure URL - 11579_A05QU4MDK9O83FL7.pdf(Brochure URL)
- Catalog URL - 3M_054007_42168_Brochure.pdf(Catalog URL)
- Compliance Cert URL - Scotch_054007_10083_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.3m.com(Seller Home Page URL)
- Install Instructions 1 URL - 11579_YQK862VIMGAPHX43.pdf(Install Instructions 1 URL)
- Install Instructions URL - 3mtm-cold-shrink-qt-iii-silicone-rubber-indoor-termination-kit.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - h4rh24gw7va43aoubweo.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 11579_2AWTNMOCZ6LBKY0G.pdf(Spec Sheet URL)
- Tech Drawing URL - 11579_5GVQFIH62RSK3MJD.pdf(Tech Drawing URL)
- Applications
- Features
| Indoor |
| Provides a void free seal to tape shield, wire shield and UniShield® power cables |
| High dielectric constant material regulates the distribution of electric field stress |
| Silicone rubber insulation offers durability and reduces leakage currents in damp conditions |
| UniShield®, wire shield, tape shield shielding type |
| Conductor size by voltage (5 kV, 100%) 1 to 3/0 AWG, (5 kV, 133%) 2 to 2/0 AWG, (8 kV, 100%) 2 to 2/0 AWG, (8 kV, 133%) 2 to 2/0 AWG, (15 kV, 100%) 2 to 1 AWG |
| 3 terminal |
| 3 terminals |
