Blackburn® IPC5041 Talon™ IPC Insulation Piercing Connector, 350 to 500 kcmil Aluminum/Copper Conductor, Aluminum
Piercing Insulated Connectors
422147
MFG #: IPC5041
Blackburn®
16076.87000
/ ea
- Alternate Catalog Number: 7TAH006420R0034
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: IPC5041
- Color: Black
- Conductor Range [Main|Primary]: 500-350 AWG
- Conductor Range [Tap|Secondary]: 4/0-4 AWG
- Country of Origin: MX
- Currency: USD
- Dimensions: 2-1/8 in L x 2 in W
- EU RoHS Indicator: C
- Finish: TiN Coated
- Gross Weight Per Pack: 0.8000 lb
- Gross Weight per Pack Metric: 0.36
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536904000
- Height: 0.01 in
- Height [Metric]: 0.0254 cm
- Item Group: 00642
- Item Group 2: 006
- Length: 0.01 in
- Length [Metric]: 0.0254 cm
- Number Of Mounting Holes: 1
- Returnable: Y
- Specifications: 4 to 4/0 AWG, 90 to 25 sq-mm Tap/Secondary Conductor
- Standard: UL E9809
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E9809CSA Certified
- Temperature Rating: 90 °C
- Type: Type IPC
- UNSPSC: 39121408
- UPC 11: 78378633113
- UPC 12: 783786331130
- Voltage Rating: 600 VAC
- Width: 0.01 in
- Width [Metric]: 0.0254 cm
- Stock Status: NONSTOCK
- Brand: Blackburn®
- Manufacturer: Thomas & Betts
- Conductor Size: 350 to 500 kcmil
- Conductor Type: Aluminum/Copper
- Material: Aluminum
- Catalog URL - Blackburn_IPC3535_Brochure.pdf(Catalog URL)
- Compliance Cert URL - Blackburn_IPC5041_RoHS_Sheet.pdf(Compliance Cert URL)
- http://www.TNB.com(Seller Home Page URL)

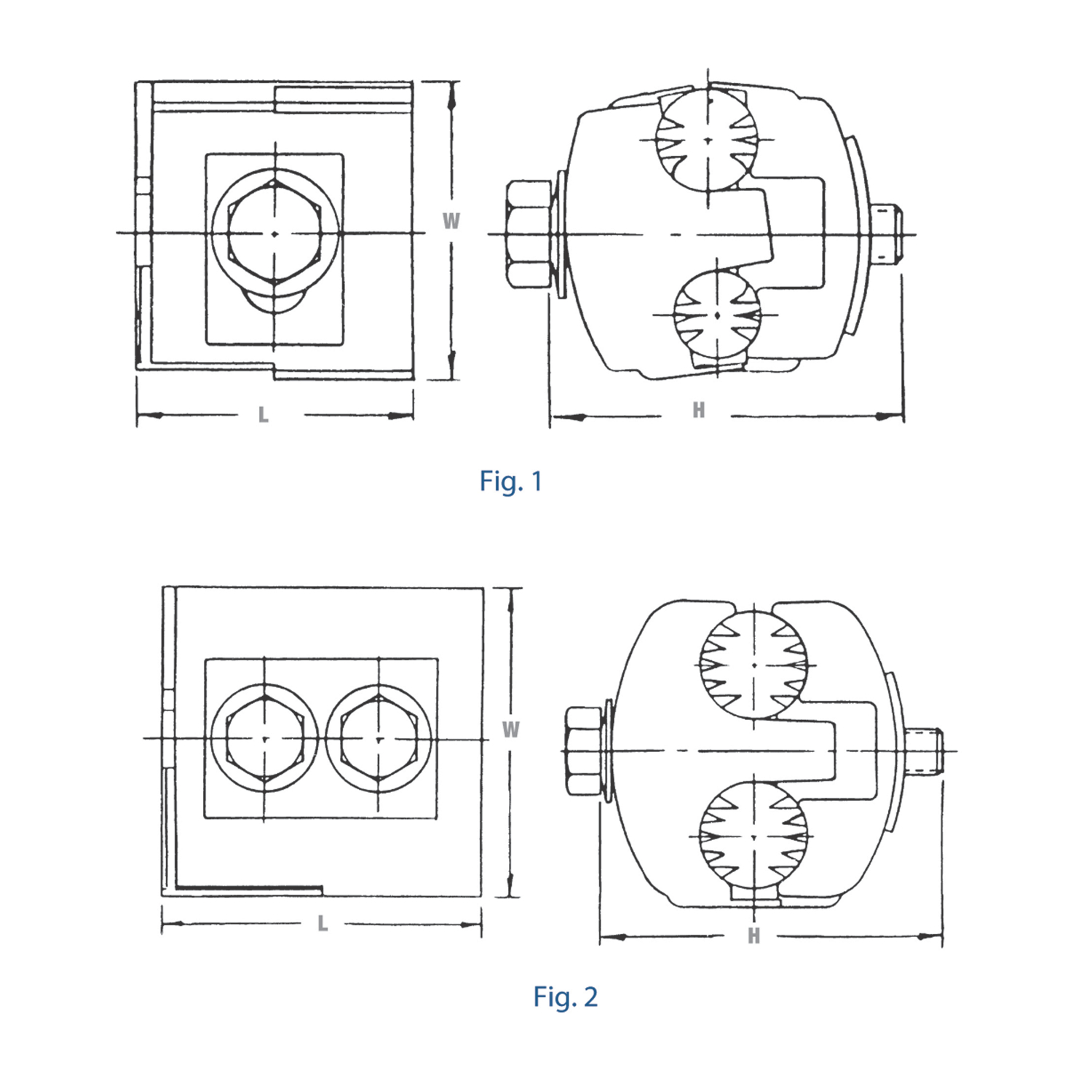

- Line Drawing URL - ipc_ca2ld_1(Line Drawing URL)
- Spec Sheet URL - 006_cat3lr_F159.pdf(Spec Sheet URL)
- Spec Sheet URL - 12055_IG7LM6REDZ5HQOP2.pdf(Spec Sheet URL)
- Features
| For copper-to-copper, copper-to-aluminum and aluminum-to-aluminum applications (insulated conductor only). Performs as splice or tab for non-tension applications up to 600 volts, depending on size of connector. |
| 80/pack |
| 500 - 350 AWG, 240 - 185 sq mm conductor |
