Appleton® BD-1B Bus Drop Cable Clamp, 0.4 to 1.19 in, For Use With Exposed Branch Feeder
Flexible Bus Drop Cable Clamps
16788
MFG #: BD1B
Appleton™
5.49000
/ ea
- Application: For Use With Exposed Branch Feeder
- ARRA Compliant: N
- Buy American Compliant: Y
- Catalog Number: BD1B
- Country of Origin: US
- Currency: USD
- EU RoHS Indicator: C
- Gross Weight Per Pack: 0.0900 lb
- Gross Weight per Pack Metric: 0.03
- Gross Weight UOM Metric: kg
- Height: 0.12 in
- Height [Metric]: 3.0480 mm
- Length: 7.50 in
- Length [Metric]: 19.0500 cm
- Standards: RoHS Compliant
- Type: Bus-Drop Cable Clamp
- UNSPSC: 39121701
- UPC 11: 78138115640
- UPC 12: 781381156400
- Width: 7.30 in
- Width [Metric]: 18.5420 cm
- Stock Status: NORMALLY STOCKED
- Brand: Appleton™
- Manufacturer: Appleton
- Cable Size: 0.4 - 1.19 in
- http://www.appletonelec.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)

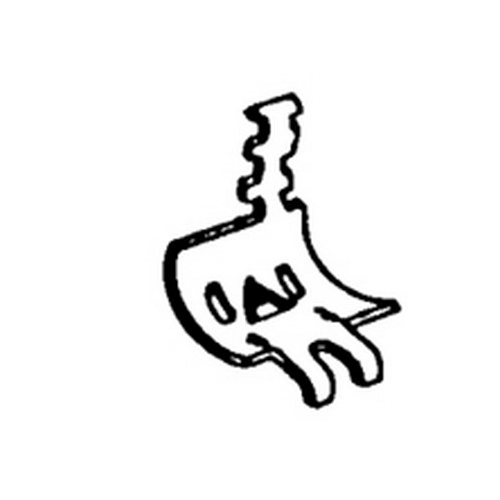

- Line Drawing URL - 11043_BD-1BLINE.jpg(Line Drawing URL)
- Line Drawing URL - BD-1BLINE.jpg(Line Drawing URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet URL - 11043_SPE_781381156301_Spec.pdf(Spec Sheet URL)
- Spec Sheet URL - SPE_781381156301_Spec.pdf(Spec Sheet URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
| For Use With Exposed Branch Feeder |
| Clamps provide maximum versatility of installation where equipment is likely to be moved from one location to another Installation is fast and modification is simple; One clamp covers entire range of cable sizes and can be used for one 90 DEG bend |
| Clamps provide maximum versatility of installation where equipment is likely to be moved from one location to another installation is fast and modification is simple |
| One clamp covers entire range of cable sizes and can be used for one 90 deg bend |
| Supports cable in flexible connecting circuits used to feed equipment |
| Cable is run in fixed overhead bused structures to a point directly above equipment then dropped with a 90 deg bend |
| At the point of drop, the cable clamp is installed to support the cable |
| Two clamps, back to back, allow for an additional loop providing extra cable footage when a machine is likely to be moved |
