GRN 5882A MEGOHMMETER, 1KV DIG/ANA LITE 52081119

Insulation Testers
1080996 MFG #: 5882A
Greenlee®
1170.25000 / ea
11142_VACPLDBM97KXUQ0Y
  • ARRA Compliant: Y
  • Buy American Compliant: X
  • Catalog Number: 5882A
  • Country of Origin: FRA
  • Currency: USD
  • Enclosure Type: IP54
  • EU RoHS Indicator: U
  • Frequency Response: 15.3 to 800 Hz
  • Gross Volume Per Pack: 809.06
  • Gross Volume per Pack Metric: 13258.16
  • Gross Volume UOM: CI
  • Gross Volume UOM Metric: cm3
  • Gross Weight Per Pack: 4.6000 lb
  • Gross Weight per Pack Metric: 2.09
  • Gross Weight UOM Metric: kg
  • Harmonization Tariff Schedule Code: 9030390100
  • Height: 4.70 in
  • Height [Metric]: 11.9380 cm
  • Length: 15.10 in
  • Length [Metric]: 38.3540 cm
  • Power Source: (6) 1.5 VDC AA NiMH Battery
  • Resistance Range: 0 Ohm to 1000 kOhm
  • Standards: ARRA CompliantcETLus ListedCE Certified
  • Type: Hand Held
  • UNSPSC: 41113628
  • UPC 11: 78331007154
  • UPC 12: 783310071549
  • Width: 11.40 in
  • Width [Metric]: 28.9560 cm
  • Stock Status: NONSTOCK
  • Brand: Greenlee®
  • Manufacturer: Greenlee Textron
  • Display Type: Digital LCD
  • Safety Rating: Cat IV 600 V
  • Voltage Rating: 1 kV

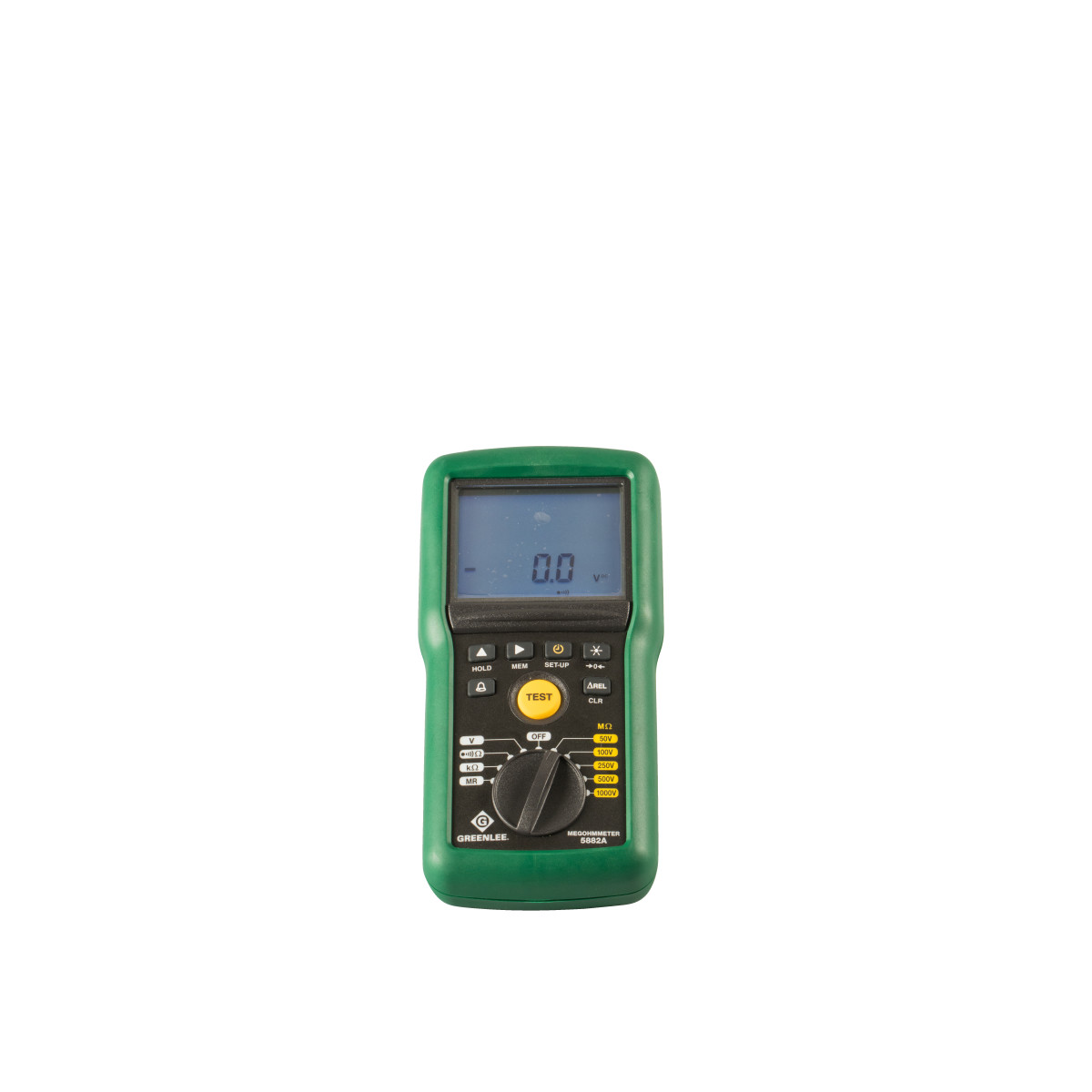

Megohmmeter/Insulation Tester 1kV. Automatic calculations, potential indes and dielectric absorption ratios. Tests continuity, resistance and frequency measurements. Programmable alarms. Insulation tests resistance continuity. Hazardous voltage alers (icon). Data hold with 300 entry memory. Standby mode saves battery power. Hand held, compact light weight form. Intuitive layout with rotary function selector and large test button. Molded in magnetic mount for convenient hands-free measurements.
QTY
Add to Wishlist
  • Features
Automatic calculations
Potential index and dielectric absorption ratios
Tests continuity, resistance and frequency measurements
Programmable alarms
Hazardous voltage alert (icon) if voltage is >70 volts
Delta reading
Data hold with 300 entry memory
Automatic standby mode, saves battery power
Hand held, compact lightweight form
Intuitive layout with rotary function selector and large test button
Molded in magnetic mount for convenient hands free measurements
Insulation test, resistance, continuity
