Hubbell Wiring Device-Kellems Twist-Lock® HBLT2411 3-Pole 1-Phase 4-Wire Grounding Standard Sized Circuit Tester, 125/250 VAC, 20 A Load Current, NEMA L14-20P
Circuit Tester
942680
MFG #: HBLT2411
Hubbell Wiring Device-Kellems
114.62000
/ ea
- Amperage Rating: 20 A
- Application: Industrial/Commercial
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: HBLT2411
- Color: Black/White
- Cord Type: None
- Country of Origin: US
- Currency: USD
- Environmental Conditions: Indoor Dry unless protected by additional means
- EU RoHS Indicator: C
- Gross Weight Per Pack: 0.4000 lb
- Gross Weight per Pack Metric: 0.18
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 9030333400
- Height: 2.42 in
- Height [Metric]: 6.1417 cm
- Indicator: LED
- Length: 3.98 in
- Length [Metric]: 10.1041 cm
- Material: Composite
- Mounting: PLUG-IN
- NEMA Rating: L14-20P
- Number Of Poles: 3
- Number of Wires: 4
- Phase: 1
- Returnable: N
- Size: Standard Sized
- Standard: UL498
- Standards: ARRA CompliantBuy American Act CompliantUL 498
- Sub Brand: Twist-Lock
- Type: Circuit Tester
- UNSPSC: 39121402
- UPC 11: 78358546862
- UPC 12: 783585468624
- Wattage: 5,000 W
- Width: 2.42 in
- Width [Metric]: 6.1417 cm
- Stock Status: NONSTOCK
- Brand: Hubbell Wiring Device-Kellems
- Manufacturer: Hubbell
- Enclosure Type: NEMA L14-20P
- Load Current: 20 A
- Voltage Rating: 125/250 V

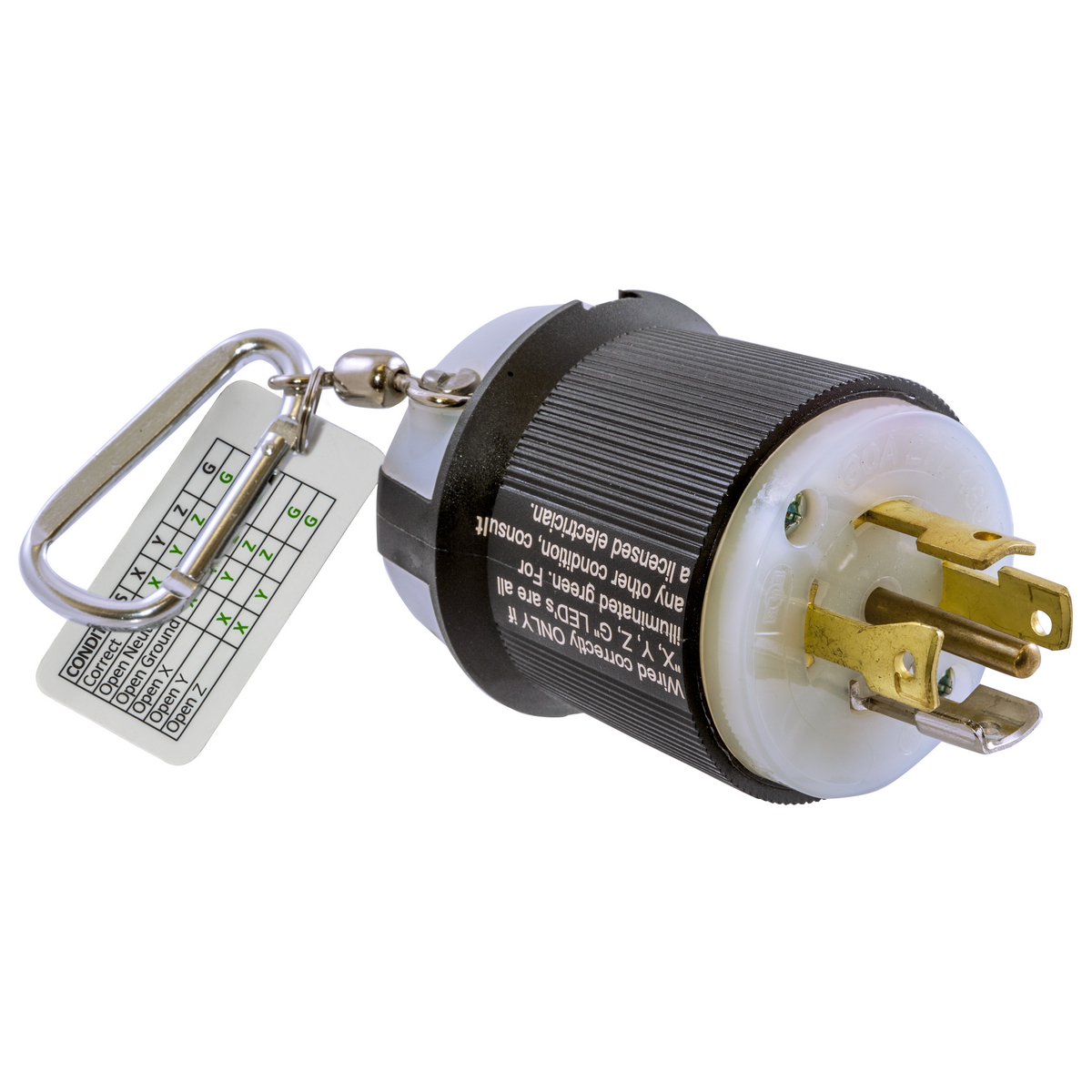

The Hubbell Twist-Lock® Tester is an exclusive patented design that easily tests the circuit condition without the need for traditional measurement techniques. Whether it is a contractor, electrician, or entertainment stage crew, knowing that power is present at any receptacle or connector is critical. By plugging the tester into an outlet, an LED output will immediately provide the state of the circuit. An easy to read card is provided with the tester, to help determine if the connections are made properly and in the correct position. This unique NEMA configuration ensures that the proper connection was made through an easy to read output display. It also easily attaches to a tool belt so it is available when needed.
- Catalog URL - Wiring_Device_Kellems_HBL3PT2511_Brochure.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Spec Sheet URL - ID-SPE-v1-Wiring_Catalog_B52_CatPage.pdf(Spec Sheet URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Spec Sheet URL - WIRING_HBLT2411_spec.pdf(Spec Sheet URL)
- Spec Sheet URL - 2296270(Spec Sheet URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
Industrial/Commercial |
Standard Product |
Easy to read LED output and condition tables |
Insulgrip® nylon housing for secure gripping |
Carabiner style clip to secure to work belt |
