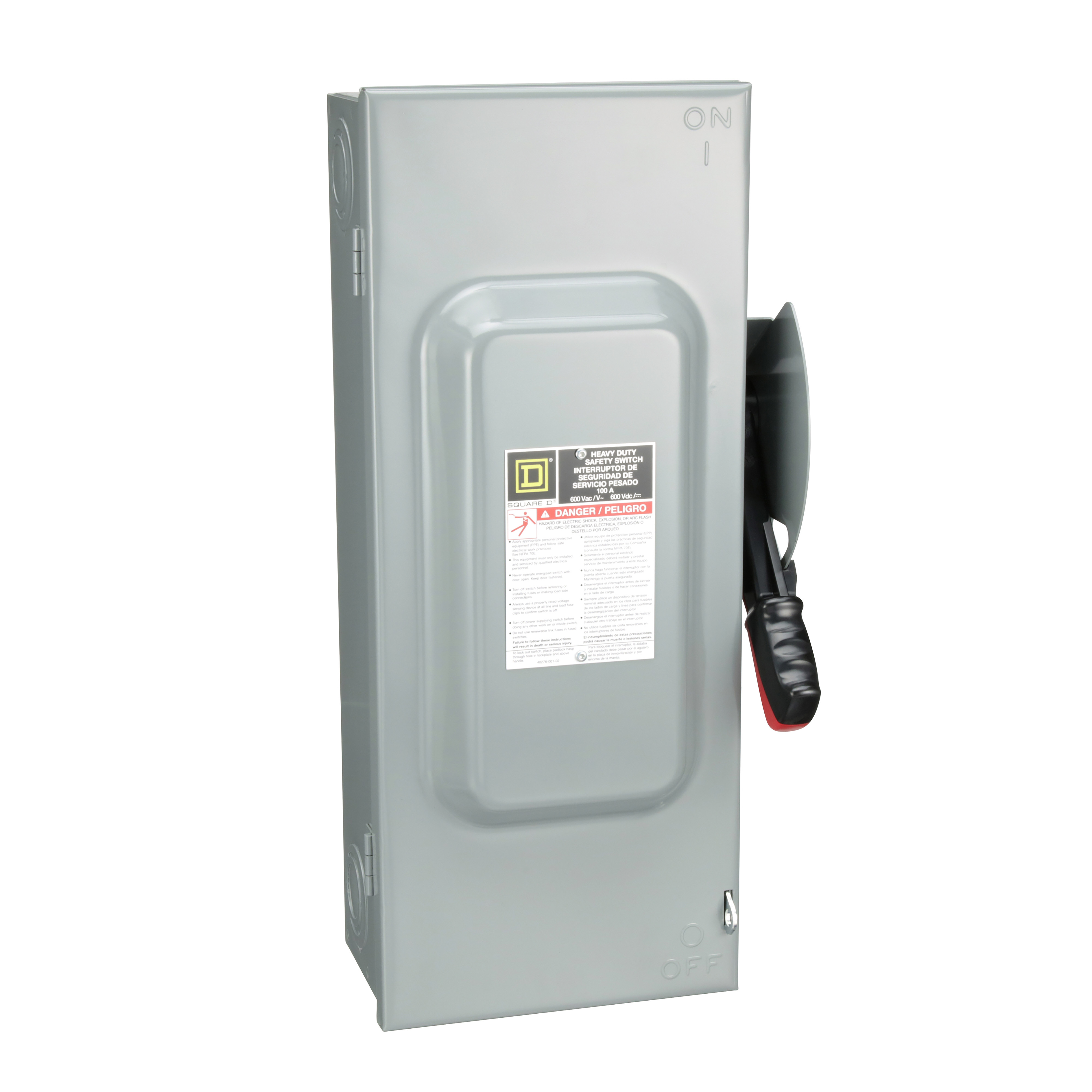

Square D™ HU363 Non-Fusible Heavy Duty Safety Switch, 600 VAC/VDC, 100 A, 50/100 hp, 3 Poles, TPST
Safety Switches & Disconnects
33600
MFG #: HU363
Square D™
378.65000
/ ea
- Alternate Catalog Number: HU363
- Application: Heavy application
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: HU363
- Connection: LUGS
- Country of Origin: US
- Currency: USD
- Enclosure: NEMA 1 STEEL
- Enclosure Type: NEMA 1
- Environmental Conditions: GENERAL PURPOSE (INDOOR)
- EU RoHS Indicator: Y
- Gross Volume Per Pack: 1852.81
- Gross Volume per Pack Metric: 30362.03
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 16.6000 lb
- Gross Weight per Pack Metric: 7.53
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536509045
- Height: 7.4803 in
- Height [Metric]: 18.7960 cm
- Item Group: 00008
- Length: 23.2283 in
- Length [Metric]: 59.4360 cm
- Material: Steel
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365393&lang=en-us
- Mounting: Surface
- Mounting Type: Surface
- Number of Wires: 3
- Returnable: N
- Short Circuit Current Rating: 200 kA
- Size: 10.25 IN,21.25 IN,6.38 IN in
- Standard: UL LISTED FILE E2875
- Standards: UL Listed
- Substitute Product Catalog Number: LOGK2
- Terminal Type: Lug
- Type: Heavy Duty Non-Fusible Single Throw
- UNSPSC: 39122218
- UPC 11: 78590150584
- UPC 12: 785901505846
- Warranty Description: Contractual Warranty:18 months
- Width: 10.6299 in
- Width [Metric]: 27.1780 cm
- Wire Type: AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper
- Stock Status: NORMALLY STOCKED
- Brand: Square D™
- Manufacturer: Schneider Electric
- Amperage Rating: 100 A
- Horsepower: 75 hp, 40 hp
- Voltage Rating: 600 VAC//VDC
- Number Of Poles: 3
- 360 Degree View URL - 360(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=HU363(3D Rendering URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Catalog URL - Square_D_H323AWK_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - b6e8930904afed2decb8234ec13cf1f1a2f98553.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_0IBYW91U5ZASPQM2.pdf(Install Instructions 1 URL)
- Install Instructions URL - Square_D_H221DS_Instruction_Sheet.pdf(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet 1 URL - Square_D_HU363_Data_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11003_L9OK0YJUQCW7XPT6.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_C0ZH3XTABWRE2Y6M.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/s2yLxPcRTIY(Video)
- Applications
- Features
| Heavy application |
| LUGS |
| 14 to 1/0 AWG copper, 12 to 1/0 AWG aluminum wire |
| 15 hp at 240 VAC 1-phase, 40 hp at 240 VAC 3-phase, 30 hp at 480 VAC 1-phase, 75 hp at 480/600 VAC 3-phase, 40 hp at 600 VAC 1-phase, 20 hp at 250 VDC, 40 hp at 600 VDC power rating |
| Side opening, left hinged covers |
| Highly visible embossed ON/OFF marking/ON/OFF labels are used on type 4x fiberglass reinforced polyester enclosures |
| Quick-make and quick-break operating mechanism |
| Standard with plated aluminum lugs which accept both Cu and Al wires |
| Front removable mechanical lugs |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| An interlock bypass is provided for access by authorized personnel |
