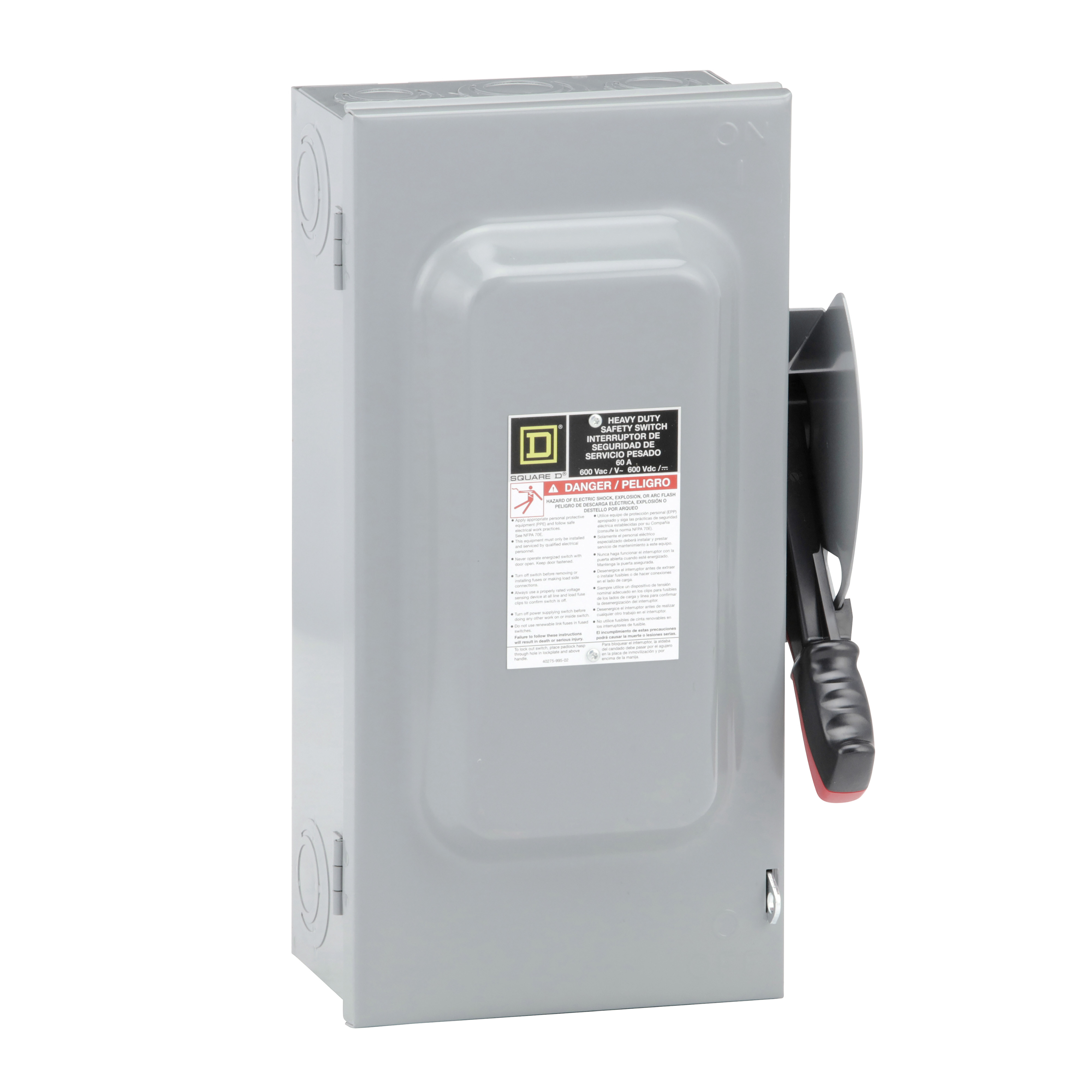

Square D™ HU362 Non-Fusible Heavy Duty Safety Switch, 600 VAC/VDC, 60 A, 30/60 hp, 3 Poles, TPST
Safety Switches & Disconnects
33599
MFG #: HU362
Square D™
235.99000
/ ea
- Actuator Type: Handle
- Alternate Catalog Number: HU362
- Application: HEAVY DUTY
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: HU362
- Connection: LUGS
- Country of Origin: US
- Currency: USD
- Dimensions: 17.75 in H x 10.5 in W x 6.38 in D
- Enclosure: NEMA 1 STEEL
- Enclosure Type: NEMA 1
- Environmental Conditions: GENERAL PURPOSE (INDOOR)
- EU RoHS Indicator: Y
- Gross Volume Per Pack: 1582.42
- Gross Volume per Pack Metric: 25931.05
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 14.7900 lb
- Gross Weight per Pack Metric: 6.71
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536509045
- Height: 7.4803 in
- Height [Metric]: 18.7960 cm
- Item Group: 00008
- Length: 19.6850 in
- Length [Metric]: 50.2920 cm
- Material: Steel
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365269&lang=en-us
- Mounting: Surface
- Mounting Type: Surface
- Number of Wires: 3
- Phase: 3
- Returnable: N
- Short Circuit Current Rating: 200 kA
- Size: 10.5 IN,21.25 IN,6.38 IN
- Standard: UL LISTED FILE E2875
- Substitute Product Catalog Number: EIK1
- Terminal Type: Lug
- Type: Non-Fused
- UNSPSC: 39122205
- UPC 11: 78590150580
- UPC 12: 785901505808
- Warranty Description: Contractual Warranty:18 months
- Width: 10.6299 in
- Width [Metric]: 27.4320 cm
- Wire Type: AWG 14...AWG 3 COPPER-AWG 12...AWG 3 ALUMINIUM
- Stock Status: NORMALLY STOCKED
- Brand: Square D™
- Manufacturer: Schneider Electric
- Amperage Rating: 60 A
- Contact Form: TPST
- Horsepower: 30 hp, 60 hp
- Voltage Rating: 600 VAC//VDC
- Number Of Poles: 3
- 360 Degree View URL - 360(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=HU362(3D Rendering URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_bd2a4800350a29ef7b15c158a776a1046e6e2dadf8cbf96f7ba9d5c82cfeafd4.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - 903334a6aacd4e5b936688e3dc2434b492621840.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_0IBYW91U5ZASPQM2.pdf(Install Instructions 1 URL)
- Install Instructions URL - Square_D_H222N_Instruction_Sheet.pdf(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet 1 URL - Square_D_HU362_Data_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_1G0TBDCLFAUHX5WM.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_Z8GEOMPQ034UKCW5.dwg(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=1897S.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/s2yLxPcRTIY(Video)
- Applications
- Features
| HEAVY DUTY |
| LUGS |
| Visible blades for positive blade position indication |
| Red and black handle indicates the on (red) or OFF (black) switch position |
| Side opening, left hinged covers |
| Highly visible embossed ON/OFF marking/ON/OFF labels are used on type 4x fiberglass reinforced polyester enclosures |
| Quick-make and quick-break operating mechanism |
| Standard with plated aluminum lugs which accept both Cu and Al wires |
| Front removable mechanical lugs |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| An interlock bypass is provided for access by authorized personnel |
