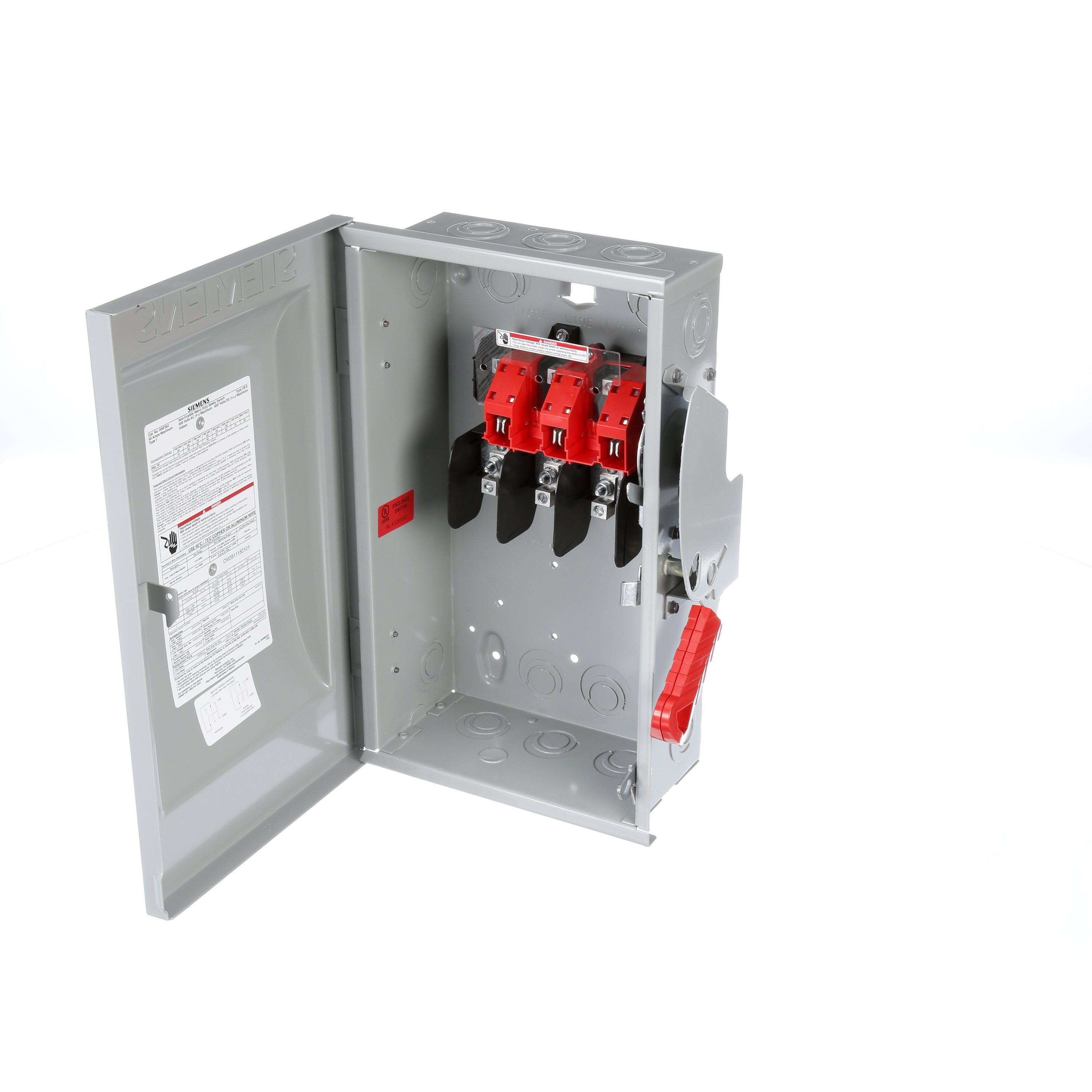

Siemens SpeedFax™ HNF362 Low Voltage Non-Fusible Heavy Duty Safety Switch, 600 VAC, 60 A, 60 hp, 3 Poles, TPST
Safety Switches & Disconnects
44667
MFG #: HNF362
Siemens
214.39000
/ ea
- Action: SINGLETHROW
- Actuator Type: Lever Operated
- Alternate Catalog Number: US2:HNF362
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: HNF362
- Country of Origin: MX
- Currency: USD
- Dimensions: 16.26 in H x 10.19 in W x 10.17 in D
- Enclosure Type: NEMA 1
- EU RoHS Indicator: C
- Frequency Rating: 60 Hz
- Gross Volume Per Pack: 2240.01
- Gross Volume UOM: in
- Gross Weight Per Pack: 14.3350 lb
- Gross Weight per Pack Metric: 7.71
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536509045
- Height: 9.0400 in
- Height [Metric]: 22.9616 cm
- Insulation Type: Non-Insulated
- Length: 16.6200 in
- Length [Metric]: 42.2148 cm
- Material: Steel
- Mounting Type: 2/3-Point Hole
- Number of Wires: 3
- Phase: 3
- Returnable: Y
- Short Circuit Current Rating: 200 kA
- Standard: UL
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed
- Temperature Rating: -20 to 120 °F
- Terminal Type: Lug
- Type: Enclosed Heavy Duty Low Voltage Non-Fused
- UNSPSC: 39122205
- UPC 11: 78364315116
- UPC 12: 783643151161
- Wattage: 3 W
- Width: 10.2600 in
- Width [Metric]: 26.0604 cm
- Stock Status: NORMALLY STOCKED
- Brand: Siemens
- Manufacturer: Siemens
- Amperage Rating: 60 A
- Contact Form: TPST
- Horsepower: 60 hp
- Voltage Rating: 600 VAC
- Number Of Poles: 3
- Brochure URL - VBIISe%20Appl%20Guide%20F06_updated.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_13e7f9091e96bd3740523170ca730c336f9ac03f47c59baf7121df639f490947.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - HNF362CAD.zip(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - SIE_DW_HNF362.pdf(Computer~Aided [CAD|BIM] Model URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Owners Manual URL - SIE_IM_SwitchMaintenance.pdf(Owners Manual URL)
- Spec Sheet 1 URL - Siemens_HNF362_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=US2:HNF362&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:HNF362&language=en(Spec Sheet URL)
- Spec Sheet URL - SF17-04-012.pdf(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Features
| Visible blade, double break switching action |
| Highly visible red handle grip designed for hook stick operation |
| Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking |
| Center punch provided for field drilling to allow on padlocking |
| Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps |
| Generous top, bottom and side gutters that meet or exceed NEC® wire bending space requirements |
| Tangential knockouts through 600 A for easy conduit lineup |
| Side hinged door that opens past 180 deg for easier wiring |
| Lugs are field convertible to copper body and to a wide variety of compression connectors |
| Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors |
| Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication |
| Drawn cover for increased rigidity and resistance to abuse |
| Top key hole and bottom mounting holes provide easy 2 or 3-point mounting |
| Without insulation |
