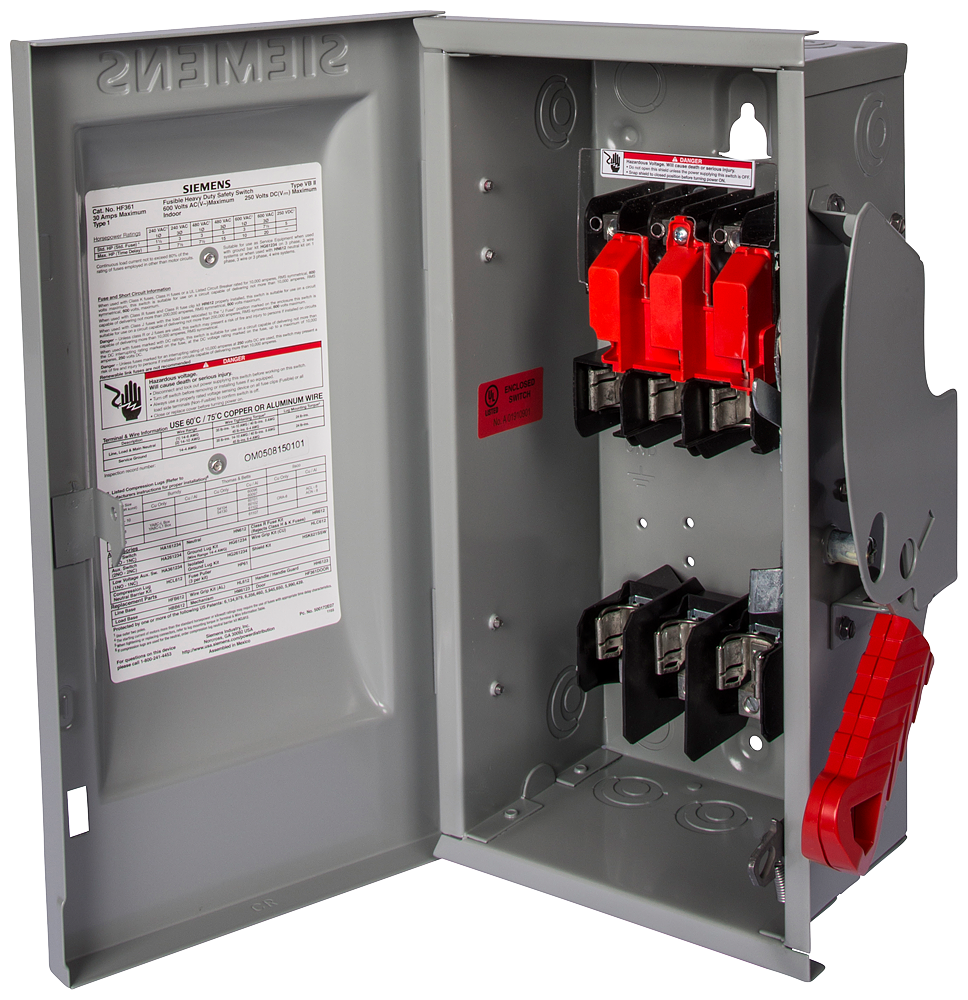

Siemens SpeedFax™ HF363 Enclosed Fusible Low Voltage Heavy Duty Safety Switch, 600 VAC/VDC, 100 A, 25/30 hp, 3 Poles
Safety Switches & Disconnects
44662
MFG #: HF363
Siemens
519.23000
/ ea
- Actuator: SINGLETHROW
- Actuator Type: Lever Operated
- Alternate Catalog Number: US2:HF363
- Application: DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: HF363
- Connection: MECHANICALLUGS
- Country of Origin: MX
- Currency: USD
- Dimensions: 21.95 in H x 10.68 in W x 10.17 in D
- Enclosure: NEMA1
- Enclosure Type: NEMA 1
- EU RoHS Indicator: C
- Frequency Rating: 60 Hz
- Gross Volume Per Pack: 2548.01
- Gross Volume UOM: in
- Gross Weight Per Pack: 20.8000 lb
- Gross Weight per Pack Metric: 9.44
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536509045
- Height: 8.0000 in
- Height [Metric]: 20.3200 cm
- Insulation Type: Non-Insulated
- Length: 25.7000 in
- Length [Metric]: 65.2780 cm
- Material: Steel
- Mounting: Surface
- Mounting Type: 2/3-Point Hole
- Number of Wires: 3
- Operating Temperature: -29 °C
- Phase: 3
- Returnable: Y
- Short Circuit Current Rating: 200 kA
- Standard: UL98
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed
- Sub Brand: VBII
- Switch Type: SINGLETHROW
- Temperature Rating: -20 to 120 °F
- Terminal Type: Lug
- Type: Enclosed Fused Heavy Duty Low Voltage
- UNSPSC: 39122205
- UPC 11: 78364315102
- UPC 12: 783643151024
- Width: 14.0000 in
- Width [Metric]: 35.5600 cm
- Stock Status: NORMALLY STOCKED
- Brand: Siemens
- Manufacturer: Siemens
- Amperage Rating: 100 A
- Contact Form: TPST
- Horsepower: 25 hp, 30 hp
- Voltage Rating: 600 VAC
- Number Of Poles: 3
- Brochure URL - VBIISe%20Appl%20Guide%20F06_updated.pdf(Brochure URL)
- Catalog 1 URL - Siemens_HNF364RPVPG_Catalog_1.pdf(Catalog 1 URL)
- Owners Manual URL - SIE_IM_SwitchMaintenance.pdf(Owners Manual URL)
- Computer~Aided [CAD|BIM] Model URL - SIE_DW_HF363.pdf(Computer~Aided [CAD|BIM] Model URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Catalog URL - IDW_DOCUMENT_13e7f9091e96bd3740523170ca730c336f9ac03f47c59baf7121df639f490947.pdf(Catalog URL)
- User Manual URL - man(User Manual URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=US2:HF363&language=en(Spec Sheet URL)
- Spec Sheet URL - SF17-04-011.pdf(Spec Sheet URL)
- Spec Sheet 1 URL - Siemens_HF363_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Video - https://digitalcontentcenter.compas.siemens-info.com/SIE_VI_Safety_Switch.mp4(Video)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:HF363&language=en(Spec Sheet URL)
- Applications
- Features
| DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| Visible blade, double break switching action |
| Highly visible red handle grip designed for hook stick operation |
| Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking |
| Center punch provided for field drilling to allow on padlocking |
| Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps |
| Generous top, bottom and side gutters that meet or exceed NEC® wire bending space requirements |
| Tangential knockouts through 600 A for easy conduit lineup |
| Side hinged door that opens past 180 deg for easier wiring |
| Lugs are field convertible to copper body and to a wide variety of compression connectors |
| Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors |
| Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication |
| Drawn cover for increased rigidity and resistance to abuse |
| Top key hole and bottom mounting holes provide easy 2 or 3-point mounting |
| Without insulation |
