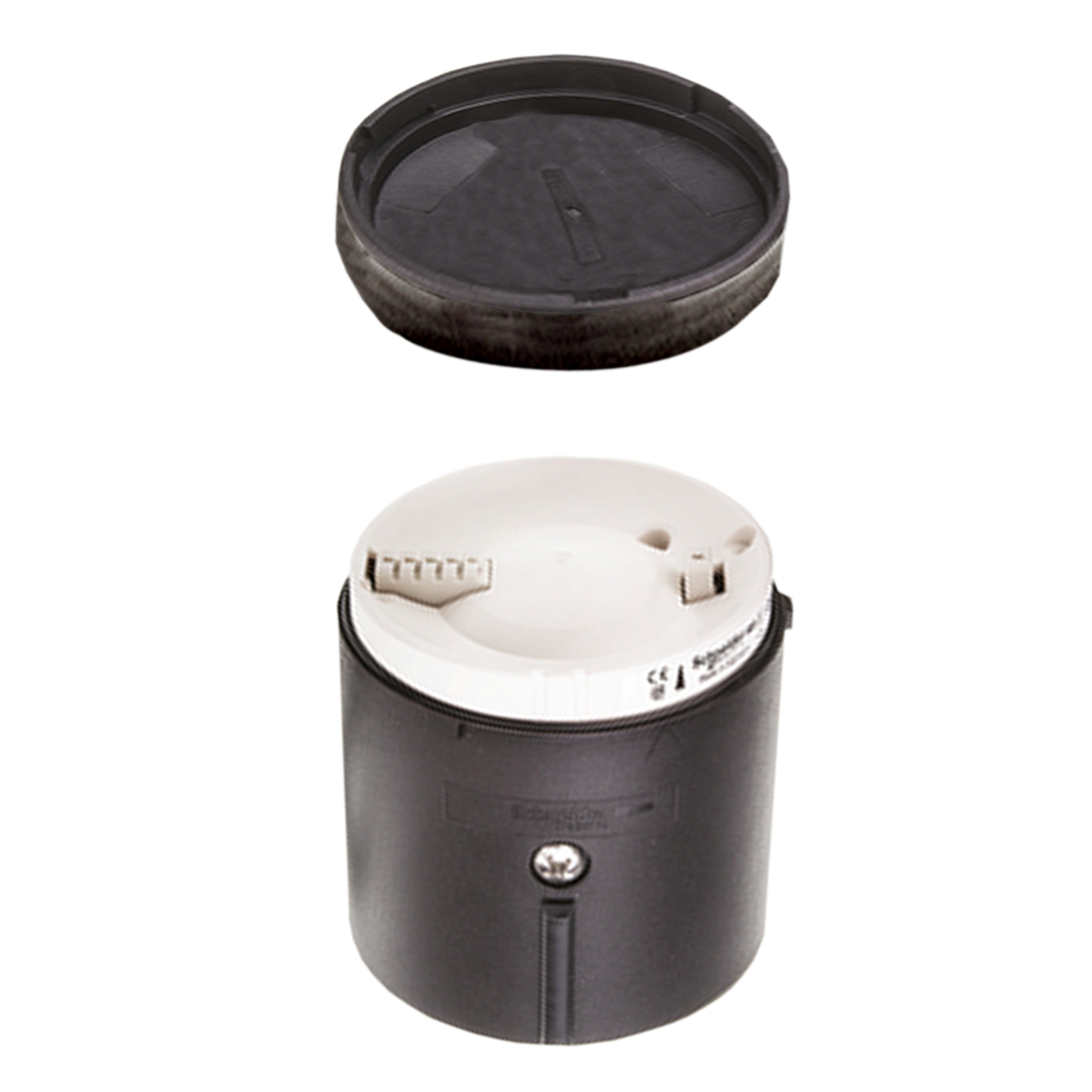

Schneider Electric,AS-I UNIT FOR XVB STACK LIGHTS,19.2...30 V for external application-24...31.6 V for AS-Interface line application,70 mm,Base Unit and Cover,Harmony,Harmony XVB Universal,NEMA 4X/12,UL Listed - CSA Certified - IEC Rated,base unit with cover,base unit with cover,base unit with cover
Mounting Base Components
306317
MFG #: XVBC21A
Square D™
168.00000
/ ea
- Alternate Catalog Number: XVBC21A
- Amperage Rating: 250 MA UNDER LOAD VIA AS-INTERFACE LINE-30 MA UNDER LOAD EXTERNAL-30 MA NO LOAD
- ARRA Compliant: N
- Buy American Compliant: N
- Cable Entry: Side entry
- Catalog Number: XVBC21A
- Compatibility: AS-INTERFACE CABLING SYSTEM
- Country of Origin: FR
- Currency: USD
- Dimensions: 70 mm Dia
- Enclosure: IP65 IEC 60529-IP65 NF C 20-010,NEMA 4X UL 508 INDOOR)
- EU RoHS Indicator: Y
- Flash Rate: BASE UNIT WITH COVER
- Gross Volume Per Pack: 36.70
- Gross Volume per Pack Metric: 601.40
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 0.5200 lb
- Gross Weight per Pack Metric: 238.00
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8531909001
- Height: 3.59 in
- Height [Metric]: 9.2000 cm
- Lamp Type: BASE UNIT WITH COVER
- Length: 3.04 in
- Length [Metric]: 7.8000 cm
- Lens Material: GLASS REINFORCED POLYAMIDE BASE UNIT-POLYCARBONATE COVER UNIT
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=665804&lang=en-us
- Mounting: 70 MM
- Returnable: Y
- Size: 70 mm
- Specifications: 14 to 122 deg F Operating Temperature, NEMA 4X/12 Enclosure, M12 Electrical Connection, Side Cable Entry
- Standard: AS-INTERFACE NO 25701-CSA,EN/IEC 60947-5-1
- Sub Brand: HARMONY
- Substitute Product Catalog Number: XVBZ02A
- UNSPSC: 32151503
- UPC 11: 78590143201
- UPC 12: 785901432012
- Voltage Rating: EXTERNAL 19.2...30 V-AS-INTERFACE LINE 24...31.6 V
- Warranty Description: Contractual Warranty:18 months
- Width: 3.04 in
- Width [Metric]: 7.8000 cm
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Color: Black
- Material: Glass Reinforced Polyamide/Polycarbonate
- Suitable For Use With: Harmony® XVB Series 70 mm Modular Tower Light, Beacon and Indicator Bank
- Type: AS-i Interface
Schneider Electric,AS-I UNIT FOR XVB STACK LIGHTS,19.2...30 V for external application-24...31.6 V for AS-Interface line application,70 mm,Base Unit and Cover,Harmony,Harmony XVB Universal,NEMA 4X/12,UL Listed - CSA Certified - IEC Rated,base unit with cover,base unit with cover,base unit with cover
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=9275362360Den&ext=webp(360 Degree View URL)
- Brochure URL - 2851cd9bac56fab496c4a511b47aa2b730a5f945.pdf(Brochure URL)
- Catalog URL - Schneider_Electric_XVBC21A_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_RWCP8NH7Q6DE5K2J.pdf(Install Instructions 1 URL)
- ROHS Compliance URL - Schneider_Electric_XVBC21A_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_420BM6NKZWR8IAYL.pdf(Spec Sheet URL)
- Tech Drawing URL - e504e4993dd878dff11775fc9259145a663a74da.wmf(Tech Drawing URL)
- Features
| IP65 CONFORMING TO IEC 60529-IP65 CONFORMING TO NF C 20-010,BASE UNIT WITH COVER,GLASS REINFORCED POLYAMIDE ON BASE UNIT-POLYCARBONATE ON COVER UNIT |
