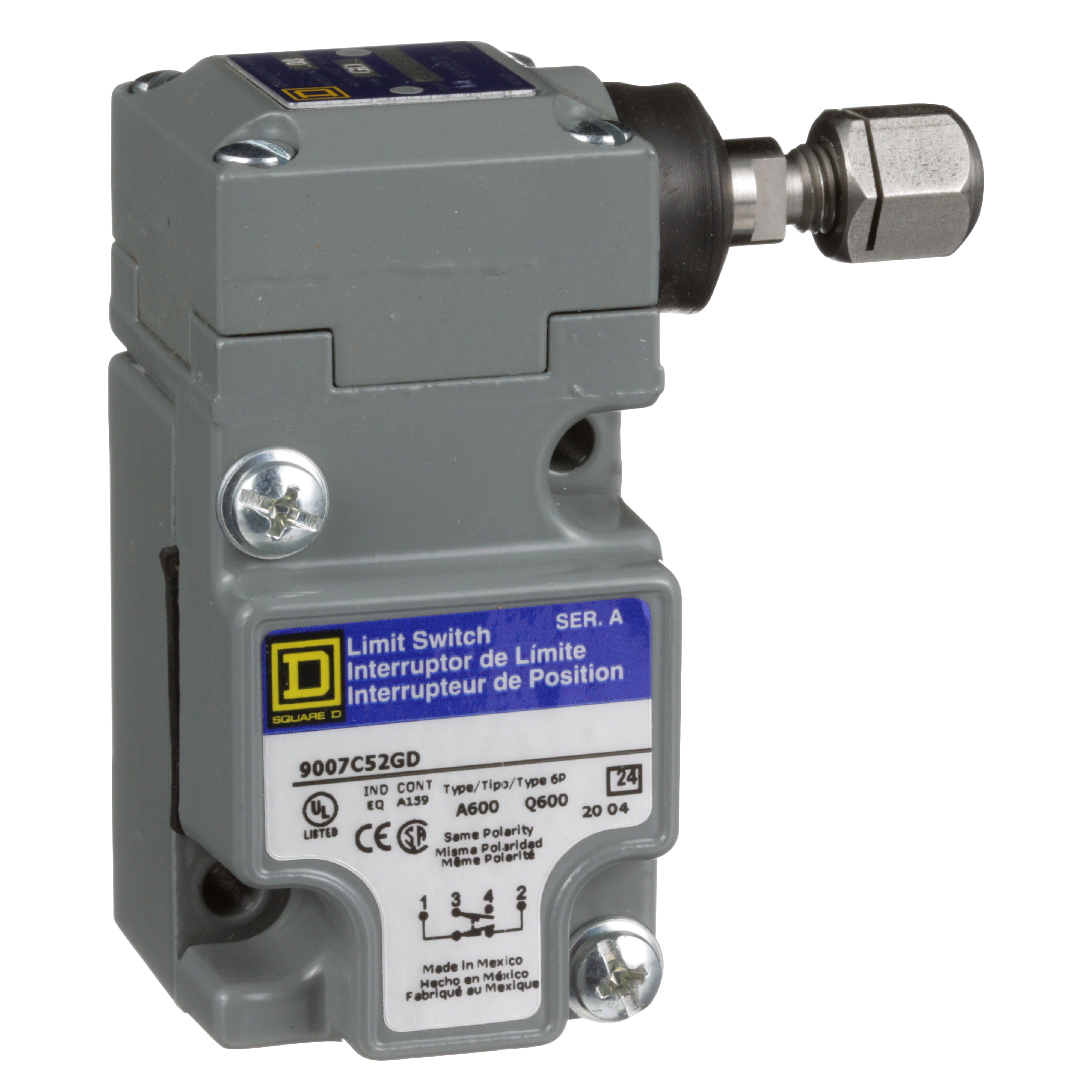

Telemecanique 9007C52GD LIMIT SWITCH 600V 10A
Limit Switches
47809
MFG #: 9007C52GD
Telemecanique Sensors
280.31000
/ ea
- Action: On end;Lateral approach, 1 direction;Snap action
- Alternate Catalog Number: 9007C52GD
- Application: Compact box
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: 9007C52GD
- Connection: Screw-clamp terminals AWG 22...AWG 12), 1-2
- Connection Type: 1/2 in NPT Conduit Entrance Screw Clamp
- Contact Rating: NEMA A600/Q600
- Country of Origin: MX
- Currency: USD
- Enclosure: NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
- Environmental Conditions: STANDARD ENVIRONMENT
- EU RoHS Indicator: Y
- Gross Volume Per Pack: 17.20
- Gross Volume per Pack Metric: 281.86
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 1.0200 lb
- Gross Weight per Pack Metric: 462.66
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536509055
- Height: 10.69 in
- Height [Metric]: 27.4190 cm
- Item Group: 21499
- Length: 27.16 in
- Length [Metric]: 69.6450 cm
- Material: Metal/Zinc
- Mounting: By the body
- Mounting Type: 1/2-14 NPT
- Operating Temperature: -20 to 185 °F
- Returnable: N
- Series: 9007C
- Size: 1.55 IN,2.71 IN,3.14-3.14 IN in
- Standard: 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140
- Sub Brand: 9007C
- Type: Heavy Duty Plug-In
- UNSPSC: 39122213
- UPC 11: 78590178346
- UPC 12: 785901783466
- Warranty Description: Contractual Warranty:18 months
- Width: 4.21 in
- Width [Metric]: 10.7950 cm
- Stock Status: NORMALLY STOCKED
- Brand: Telemecanique Sensors
- Manufacturer: Telemecanique Sensors
- Actuator: Stainless steel spring return side plunger adjustable)
- Amperage Rating: 10 A
- Contact Configuration: NC-NO, Form Z SPDT-DB
- Voltage Rating: 600 V
- Number Of Poles: 1
- Brochure URL - 11003_D12WSZ0Y9A4IEPQB.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_c1e4e4d7421fde5a14776d37795d67b51c5c7be5f9b03fb7f945d42a7672b213.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=MCADID0002546_2D-bottom.dxf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_P6RXYZGHC0AFNWOL.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_OWR5D89GBH1X4MJU.pdf(Spec Sheet URL)
- Applications
- Features
| Compact box |
| WITHOUT |
| 9007C heavy duty metal Limit Switches compact and standard 39mm plug-in bodies or 69 mm fixed body for hazardous location |
| With more than 20 heads and 200 levers styles this family offer a wide range of options |
| Heavy-duty industrial switch designed to meet domestic and international standards |
| Miniature enclosed switches, potted and pre-wired with cable |
| NEMA A600/Q600 contact rating |
| 1 entry for 1/2-14 NPT conforming to ANSI B1.20.1 |
