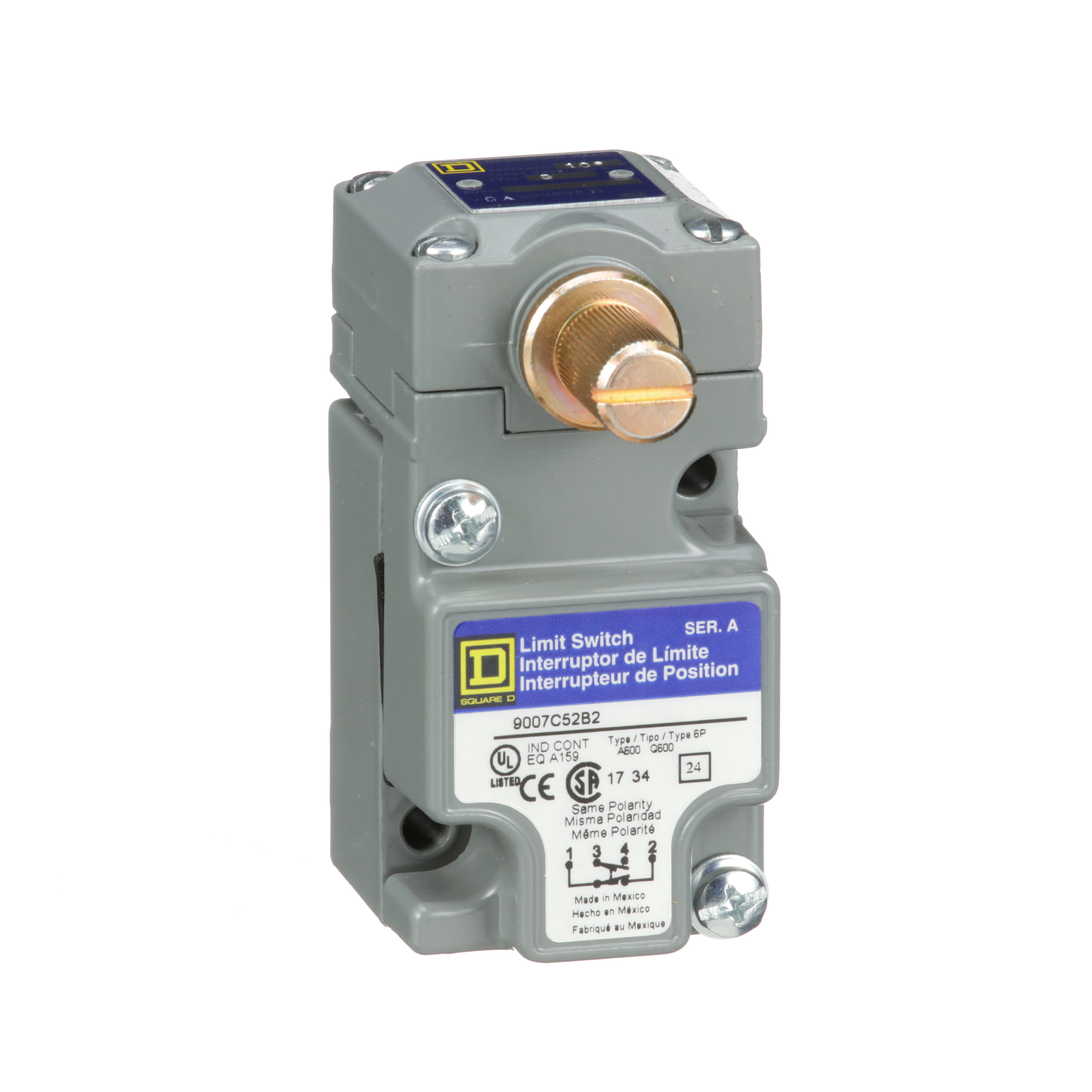

Telemecanique 9007C52B2 Heavy Duty Rotary Actuated Limit Switch, 600 VAC, 10 A, Lever Arm Actuator, 1NO-1NC SPDT-DB, 1 Pole
Limit Switches
34446
MFG #: 9007C52B2
Telemecanique Sensors
240.25000
/ ea
- Action: From left and right;CW and CCW;Lateral approach, 1 or 2 programmable direction;Snap action
- Alternate Catalog Number: 9007C52B2
- Application: Compact box
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: 9007C52B2
- Connection: Screw-clamp terminals AWG 22...AWG 12), 1-2
- Connection Type: Screw Clamp
- Contact Rating: 1.2 at A, 600 VAC, 0.1 at A, 600 VDC
- Country of Origin: MX
- Currency: USD
- Enclosure: NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
- Enclosure Type: NEMA 2/4/6/6P/12/13/IP67
- Environmental Conditions: STANDARD ENVIRONMENT
- EU RoHS Indicator: Y
- Finish: Epoxy Powder Coated
- Gross Volume Per Pack: 19.99
- Gross Volume per Pack Metric: 327.61
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 1.0950 lb
- Gross Weight per Pack Metric: 476.27
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536509055
- Height: 1.68 in
- Height [Metric]: 4.3180 cm
- Item Group: 21499
- Length: 4.16 in
- Length [Metric]: 10.6680 cm
- Material: Zinc Alloy
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=373823&lang=en-us
- Mounting: BY THE BODY
- Mounting Type: Plug-In
- Operating Cycles: 1000000
- Operating Temperature: -20 to 185 °F
- Returnable: Y
- Series: 9007
- Size: 3.14 in H x 1.55 in W x 2.5 in D in
- Standard: 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140
- Sub Brand: 9007C
- Type: Standard
- UNSPSC: 39122213
- UPC 11: 78590178336
- UPC 12: 785901783367
- Warranty Description: Contractual Warranty:18 months
- Width: 2.77 in
- Width [Metric]: 7.1120 cm
- Stock Status: NORMALLY STOCKED
- Brand: Telemecanique Sensors
- Manufacturer: Telemecanique Sensors
- Actuator: Zinc spring return without operating lever -)9007C lever
- Amperage Rating: 10 A
- Contact Configuration: 1NO-1NC
- Voltage Rating: 600 VAC
- Number Of Poles: 1
- 360 Degree View URL - 360(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=9007C52B2(3D Rendering URL)
- Catalog URL - IDW_DOCUMENT_c1e4e4d7421fde5a14776d37795d67b51c5c7be5f9b03fb7f945d42a7672b213.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_P6RXYZGHC0AFNWOL.pdf(Install Instructions 1 URL)
- Brochure URL - 11003_D12WSZ0Y9A4IEPQB.pdf(Brochure URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_N3HGZ5FJ4W2D8LUB.pdf(Spec Sheet URL)
- Applications
- Features
| Compact box |
| WITHOUT |
| Compact box |
| Zinc spring return without operating lever operator |
| From left and right, CW and CCW switch actuation |
| 1 or 2 programmable direction lateral approach |
| Screw clamp terminals, 22 to 12 AWG electrical connection |
| 1 cable entry for 1/2 to 14 NPT conforming to ANSI B1.20.1 |
| 1000000 cycles electrical durability, 10000000 cycles mechanical durability |
| 25 gn (10/150 Hz) vibration resistance |
| Form Z, snap action silver contact |
| Without positive opening |
| 4 in-lb operating torque |
| 1/2 in NPT conduit entrance |
| NEMA A600/Q600 |
| 1/2 to 1/4 in NPT thread |
