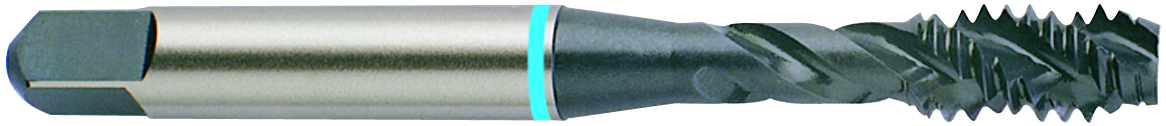

YG-1 BM244 M4.0 - 0.7, D4 3 FLUTED METRIC SPIRAL FLUTED MODIFIED BOTTOMING SUPER HSS HARDSLICK COATED FOR STEEL & STAINLESS STEELS UPTO 35HRc
Spiral Flute Taps
PDW~10953036
MFG #: BM244
YG-1
37.67000
/ ea
- Catalog Number: BM244
- Chamfer Length: 2P-3P
- Connection: 0.168 x 0.131 in
- Country of Origin: KR
- Diameter: 0.1575 in
- Drill Size: 0.1324 in
- Gross Weight Per Pack: 0.7700 lb
- Helix Angle: 40 °
- Industry Standard: 302A
- Length of Square: 0.25 in
- Measurement System: Metric
- Neck Diameter: 0.119 in
- Overall Length: 2.13 in
- Ring Color: Blue Ring
- Series: BM
- Shank Diameter: 0.168 in
- Shank Length: 1.849
- Shank Type: Square
- Square Size: 0.131 in
- Tap Type: SPFL
- Thread Diameter: M4
- Thread Length: 0.278 in
- Thread Standard: M
- TPI or Pitch: 0.7
- Type: Single End
- Usable Length: 0.768 in
- Brand: YG-1
- Manufacturer: YG-1 U.S.A.
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Finish|Coating: Hardslick
- Flute Direction: Right Hand
- Material: Super HSS
- Material Application: Stainless Steel
- Number of Flutes: 3
- Thread Limit: D4
- Thread Size: M4x0.7
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
