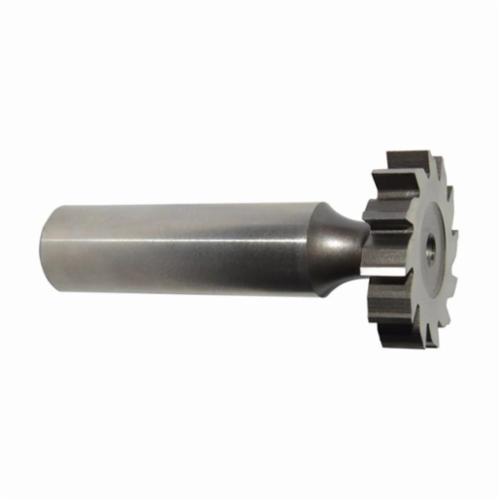

KEO 62120 Straight Tooth Standard Woodruff Keyseat Cutter, 1-1/2 in Dia, 3/8 in Cutting, 2-3/8 in OAL, 1/2 in
Keyseat/Woodruff Cutters
560846
MFG #: 103-062120
KEO
64.82000
/ ea
- Catalog Number: 103-062120
- Country of Origin: US
- Cutting Diameter: 1.5150 in
- Cutting Direction: Right Hand
- Finish: Uncoated
- Gross Weight Per Pack: 1 lb
- Line Drawing Dimensions: CDX=0.5240" CW=0.3750" DC=1.5150" DCONms=0.5000" L=2.3750" LS=1.6250"
- Material: HSS
- Maximum Depth of Cut: 0.5240 in
- Number of Cutting Edges: 16
- Shank Length: 1.6250 in
- Standards: ISO 9001:2008
- Type: Straight Tooth, Standard
- UPC 11: 67014562120
- UPC 12: 67014562120
- Stock Status: NONSTOCK
- Brand: KEO
- Manufacturer: ARCH Cutting Tools
- Connection Type: Shank
- Cutter Diameter: 1-1/2 in
- Cutting Width: 0.3750 in
- Overall Length: 2-3/8 in
- Shank Diameter: 0.5000 in
- Shank Type: Round
- Tooth Configuration: Straight
KEO Woodruff Keyseat Cutter, Straight Tooth, Standard, 1-1/2 in Cutter Dia, 2-3/8 in Overall Length, 3/8 in Cutting Width, 1/2 in Shank Dia, Round Shank, Right Hand Cutting, HSS, Uncoated
- Features
| NO 1212 American Standard |
| 16 teeth |
| Woodruff keyseat cutters are extremely versatile profile milling cutters |
| high-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance |
| Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications |
| Round shanks allow use with a wide variety of tool holding systems |
| When run in a counterclockwise direction spiral fluted tools evacuate chips up and out of the cut to reduce clogging |
