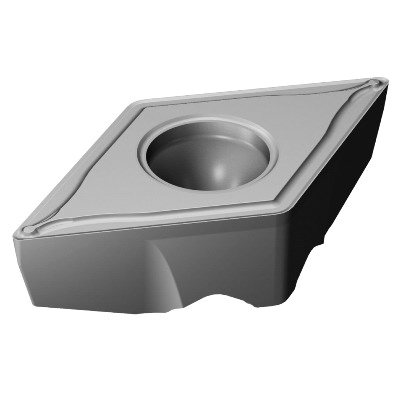

Sandvik Coromant 5755177 CoroTurn® TR Turning Insert, TR-DC1308-F H13A, D-55 deg Diamond, TR-DC..-F Insert, H13A
TR Turning Inserts
1248686
MFG #: 5755177
Sandvik Coromant
13.62000
/ ea
- Alternate Catalog Number: TR-DC1308-F H13A
- ANSI Code: TR-DC1308-F H13A
- Catalog Number: 5755177
- Corner Radius: 0.0312 in
- Country of Origin: SE
- Finish: Uncoated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Neutral
- Hole Diameter: 0.1456 in
- Included Angle: 55 deg
- ISO Code: TR-DC1308-F H13A
- Item Group: 310
- Length: 0.5118 in
- Relief Angle: 11 mm LB
- Series: CoroTurn® TR
- Thickness: 0.2175 in
- Type: F
- UPC 11: 69826247281
- Width: Carbide
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: F
- Cutting Direction: Neutral
- For Use On: Stainless Steel, Steel, Cast Iron and Heat-Resistant Super Alloys
- Inscribed Circle: 0.433 in
- Insert Size: K, N, S
- Insert Style: TR-DC..-F
- Manufacturer's Grade: H13A
- Material: Carbide
- Material Grade: K/N/S
- Maximum Depth of Cut: 3 mm
- Rake: Positive
- Seat Size: 13
- Shape: D-55 deg Diamond
- Features
| 40 - 60 deg countersunk hole, rail bottom and non-flat surface clamping interface |
| 7 deg major clearance |
| ER treated cutting edge |
| 12.2 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 cutting edge |
| 0.1-0.4 mm/r cutting feed |
