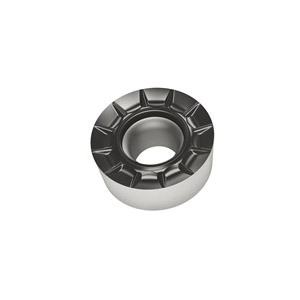

Valenite Tiger-tec® Silver 6917260 Positive Single Sided Turning Insert, RCMT0803M0-FM4 WSM10S ANSI, Round, RCMT Insert
RCMT Turning Inserts
PDW~12067033
MFG #: RCMT0803M0-FM4WSM10S
Walter (Valentine)
10.20000
/ ea
- ANSI Code: RCMT0803M0-FM4 WSM10S
- Catalog Number: RCMT0803M0-FM4WSM10S
- Corner Radius: 4 mm
- Country of Origin: DE
- Finish: PVD Coated
- Gross Weight Per Pack: 1 lb
- Hand of Insert: Neutral
- Hole Diameter: 3.4 mm
- Included Angle: 0 deg
- ISO Code: RCMT0803M0-FM4 WSM10S
- Relief Angle: 7 deg
- Sub Brand: Tiger-tec®
- Thickness: 3.17 mm
- Type: Positive Single Sided
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: FM4
- Inscribed Circle: 8 mm
- Insert Style: RCMT
- Manufacturer's Grade: WSM10S
- Material: Carbide
- Material Grade: M/P
- Maximum Depth of Cut: 3 mm
- Shape: Round
- Features
| FM4 Geometry - Periphery precision sintered |
| Finishing and fine finishing operations on stainless steels, high temperature alloys and steel |
| Excellent chip breaking behavior at low feed rates and low cutting depth |
| 40 to 60 deg double countersink hole |
| 4 cutting edges |
| WSM10S - Machining operations on automatic bar machines and multi-spindle machines |
| Applicable on high temperature alloys and austenitic stainless steels |
| 0.08 to 0.202 mm corner point tolerance |
| +/-0.13 mm thickness tolerance |
| 0.05 to 0.152 mm inscribed circle tolerance |
| 0.08 to 0.3 mm feed/rev |
