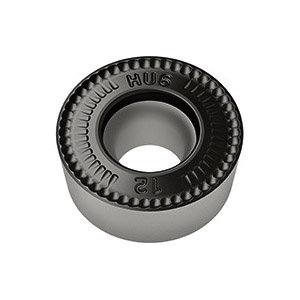

Valenite Tiger-tec® Silver 6416354 Positive Single Sided Turning Insert, RCMT1606M0-HU6 WPP10S ANSI, Round, RCMT Insert
RCMT Turning Inserts
PDW~10507001
MFG #: RCMT1606M0-HU6WPP10S
Walter (Valentine)
25.60000
/ ea
- ANSI Code: RCMT1606M0-HU6 WPP10S
- Catalog Number: RCMT1606M0-HU6WPP10S
- Corner Radius: 8 mm
- Country of Origin: DE
- Finish: CVD-TiCN+Al2O3 Coated
- Gross Weight Per Pack: 0.0100 lb
- Hole Diameter: 5.5 mm
- Included Angle: 0 °
- ISO Code: RCMT1606M0-HU6 WPP10S
- Relief Angle: 7 °
- Series: Tiger-tec® Silver
- Sub Brand: Tiger-tec®
- Thickness: 6.35 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: HU6
- Cutting Direction: Neutral
- For Use On: Steel
- Inscribed Circle: 16 mm
- Insert Size: 1606M0
- Insert Style: RCMT
- Manufacturer's Grade: WPP10S
- Material: Carbide
- Material Grade: P
- Maximum Depth of Cut: 7 mm
- Rake: Positive
- Seat Size: 16
- Shape: Round
- Features
| 40 to 60 deg double countersink hole |
| 4 cutting edges |
| WPP10S - Free machining steels |
| Long cutting times |
| Maximum wear resistance |
| 0.08 to 0.202 mm corner point tolerance |
| +/-0.13 mm thickness tolerance |
| 0.05 to 0.152 mm inscribed circle tolerance |
| 0.15 to 1.2 mm feed/rev |
