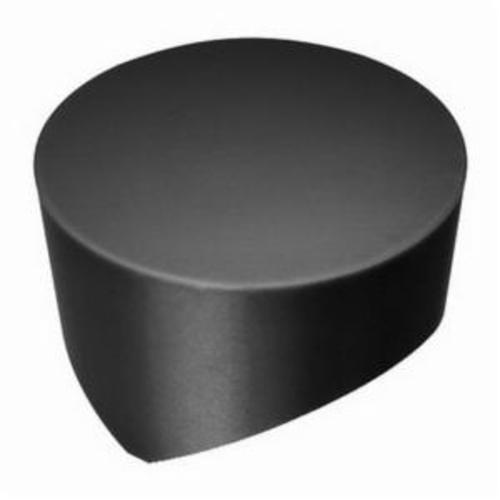

Sandvik Coromant 5740057 T-Max® 1-Sided Turning Insert, RCGX35T3015 650, R-Round, RCGX..K/T Insert, 650, Carbide
RCGX Turning Inserts
1255191
MFG #: 5740057
Sandvik Coromant
35.81000
/ ea
- Alternate Catalog Number: RCGX090700T07015 650
- ANSI Code: RCGX35T3015 650
- Catalog Number: 5740057
- Corner Radius: 0.1874 in
- Country of Origin: TH
- Finish: Uncoated
- Gross Weight Per Pack: 1 lb
- Hand of Insert: Neutral
- Hole Diameter: R - Round
- Included Angle: 0.0686 LB
- ISO Code: RCGX090700T07015 650
- Item Group: 610
- Length: 7.937 mm
- Relief Angle: 7 deg
- Series: T-Max®
- Thickness: 5/16 in
- Type: 1-Sided
- UPC 11: 69826279150
- Width: K, S
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: Single Sided
- Cutting Direction: Neutral
- For Use On: Cast Iron, Hardened Materials and Heat Resistant Super Alloys
- Inscribed Circle: 3/8 in
- Insert Size: 7 deg
- Insert Style: RCGX..K/T
- Manufacturer's Grade: 650
- Material: CARBIDE
- Material Grade: K/S
- Maximum Depth of Cut: 4.762 mm
- Rake: Positive
- Seat Size: 09
- Shape: R-Round
Sandvik Coromant Turning Insert, 1-Sided, Series: T-Max®, RCGX..K/T Insert, R-Round, 3/8 in Inscribed Circle, 5/16 in Thickness, 0.1874 in Corner Radius, Manufacturer's Grade: 650, ANSI Code: RCGX35T3015 650, ISO Code: RCGX090700T07015 650, 7 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: K/S
- Features
| 7 deg major clearance |
| 0.7 mm W face land |
| T cutting edge condition |
| 2 cutting edges |
| Convex bottom and flat surface clamping interface |
| 15 deg face land |
| G tolerance class |
| 20 life cycle state |
| Positive rake |
