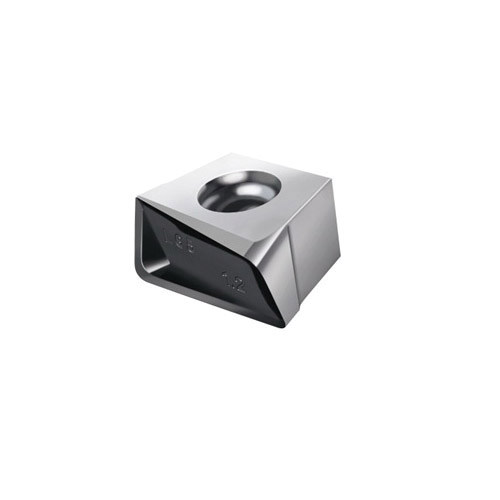

Valenite Tiger-tec® Silver 6948596 Tangential Indexable Milling Insert, XNHX130640R-L65T WSP45S ANSI, Rhombic
XNHX Milling Inserts
PDW~12068079
MFG #: XNHX130640R-L65TWSP45S
Walter (Valentine)
39.50000
/ ea
- ANSI Code: XNHX130640R-L65T WSP45S
- Catalog Number: XNHX130640R-L65TWSP45S
- Corner Radius: 4 mm
- Country of Origin: DE
- Finish: PVD-TiAlN+Al2O3 (Al) Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Right
- ISO Code: XNHX130640R-L65T WSP45S
- Lead Angle: 0 °
- Length: 14 mm
- Material Application: Steel, Heat Resistant Special Alloys Based on Iron, Nickel and Cobalt, Titanium and Titanium Alloys
- Series: Tiger?tec® Silver
- Sub Brand: Tiger-tec®
- Thickness: 6.8 mm
- Width: 10.5 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: L65T
- Inscribed Circle: 14 mm
- Insert Size: 130640
- Insert Style: XNHX
- Manufacturer's Grade: WSP45S
- Material: Carbide
- Material Grade: P, S
- Shape: Rhombic
- Features
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection |
| +/-0.013 mm inscribed circle tolerance |
| +/-0.025 mm thickness tolerance |
| 0.5 mm width face chamfer |
| 2 cutting edges |
