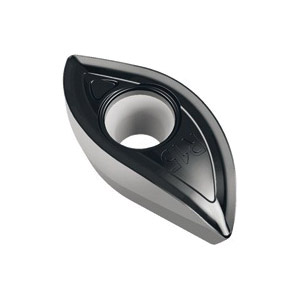

Valenite Tiger-tec® Silver 6412492 Positive Single Sided Indexable Milling Insert, XDMT2004125R-F55 WSP45S ANSI
XDMT Milling Inserts
PDW~12068031
MFG #: XDMT2004125R-F55WSP45S
Walter (Valentine)
31.20000
/ ea
- ANSI Code: XDMT2004125R-F55 WSP45S
- Catalog Number: XDMT2004125R-F55WSP45S
- Corner Radius: 0.6 mm
- Country of Origin: DE
- Finish: PVD-TiAlN+Al2O3 (Al) Coated
- Gross Weight Per Pack: 0.0200 lb
- Hand of Insert: Right
- Hole Diameter: 4.4 mm
- ISO Code: XDMT2004125R-F55 WSP45S
- Lead Angle: 15 °
- Length: 19.94 mm
- Material Application: Steel, Heat Resistant Special Alloys Based on Iron, Nickel and Cobalt, Titanium and Titanium Alloys
- Series: Tiger?tec® Silver
- Sub Brand: Tiger-tec®
- Thickness: 4.68 mm
- Type: Single Sided
- Width: 11.3 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: F55
- Inscribed Circle: 0.787 in
- Insert Size: 2004125
- Insert Style: XDMT
- Manufacturer's Grade: WSP45S
- Material: Carbide
- Material Grade: P, S
- Rake: Positive
- Shape: Irregular
- Features
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 2 cutting edges |
| 40 to 60 deg double countersink hole |
| 12.5 mm maximum depth of cut |
| 12.5 mm ball nose radius |
