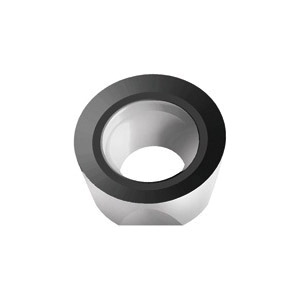

Valenite Tiger-tec® Silver 5888052 Positive Indexable Milling Insert, ROHX2006M0-D57 WKP35S ANSI, Round, ROHX Insert
ROHX Milling Inserts
PDW~9957561
MFG #: ROHX2006M0-D57WKP35S
Walter (Valentine)
35.30000
/ ea
- ANSI Code: Tiger?tec® Silver
- Catalog Number: ROHX2006M0-D57WKP35S
- Corner Radius: 10 mm
- Country of Origin: DE
- Finish: CVD Coated
- Gross Weight Per Pack: 0.0400 lb
- Hand of Insert: Neutral
- Hole Diameter: 6.5 mm
- ISO Code: ROHX2006M0-D57 WKP35S
- Lead Angle: 15 deg
- Sub Brand: Tiger-tec®
- Thickness: 6.35 mm
- Type: Positive
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: D57
- Inscribed Circle: 20 mm
- Insert Style: ROHX
- Manufacturer's Grade: WKP35S
- Material: Carbide
- Material Grade: K/P
- Rake: 10 deg
- Shape: Round
- Features
| D57 Geometry - The stable one |
| For average machining conditions |
| Can be used universally |
| One wave on the flank face |
| +/-0.013 mm cutting edge tolerance |
| +/-0.013 mm inscribed circle tolerance |
| +/-0.025 mm thickness tolerance |
| 8 cutting edges |
