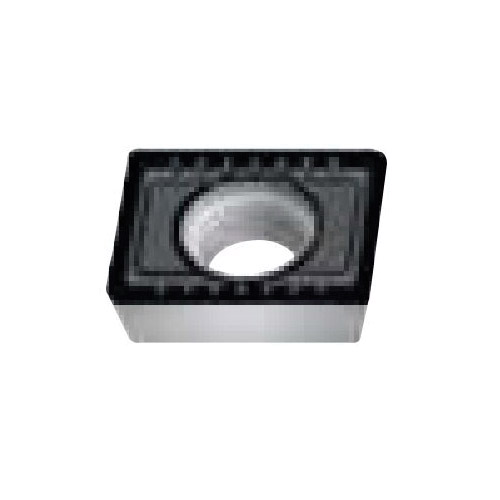

Valenite Tiger-tec® Silver 7057773 Positive Single Sided Indexable Milling Insert, LPMT15T308R-D51 WSP45S ANSI, Rhombic
LPMT Milling Inserts
PDW~12584337
MFG #: LPMT15T308R-D51WSP45S
Walter (Valentine)
16.80000
/ ea
- ANSI Code: LPMT15T308R-D51 WSP45S
- Catalog Number: LPMT15T308R-D51WSP45S
- Corner Radius: 0.8 mm
- Country of Origin: DE
- Finish: PVD-TiAlN+Al2O3 (Al) Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Right
- Hole Diameter: 4.4 mm
- ISO Code: LPMT15T308R-D51 WSP45S
- Length: 15 mm
- Material Application: Steel, Heat Resistant Special Alloys Based on Iron, Nickel and Cobalt, Titanium and Titanium Alloys
- Series: Tiger?tec® Silver
- Sub Brand: Tiger-tec®
- Thickness: 3.97 mm
- Type: Single Sided
- Width: 9.52 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: D51
- Inscribed Circle: 9.52 mm
- Insert Size: 15T308
- Insert Style: LPMT
- Manufacturer's Grade: WSP45S
- Material: Carbide
- Material Grade: P, S
- Rake: Positive
- Shape: Rhombic
- Features
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection |
| Ant-vibration geometry |
| For tools with extended tool projection |
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 1.4 mm width face chamfer |
| 2 cutting edges |
| 40 to 60 deg double countersink hole |
| 88 deg nose |
