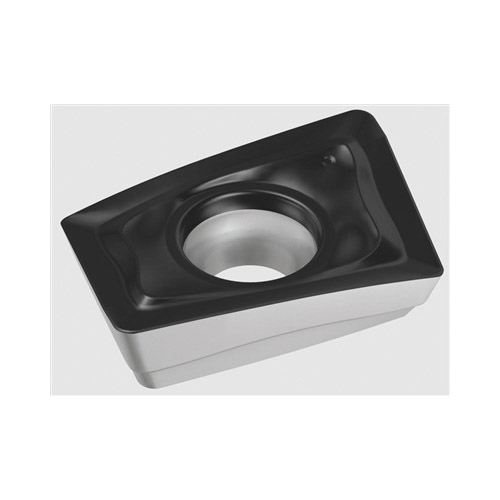

Valenite Tiger-tec® Silver 6796113 Positive Single Sided Indexable Milling Insert, LDMT08T204R-D51 WKP35S ANSI, Rhombic
LDMT Milling Inserts
PDW~12066256
MFG #: LDMT08T204R-D51WKP35S
Walter (Valentine)
16.10000
/ ea
- ANSI Code: LDMT08T204R-D51 WKP35S
- Catalog Number: LDMT08T204R-D51WKP35S
- Corner Radius: 0.4 mm
- Country of Origin: DE
- Finish: CVD-TiCN+Al2O3+TiCN Coated
- Gross Weight Per Pack: 1 lb
- Hand of Insert: Right
- Hole Diameter: 2.5 mm
- ISO Code: LDMT08T204R-D51 WKP35S
- Lead Angle: 15 °
- Length: 8.88 mm
- Material Application: Cast Iron and Steel
- Series: Tiger?tec® Silver
- Sub Brand: Tiger-tec®
- Thickness: 2.58 mm
- Type: Single Sided
- Width: 6.1 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: D51
- Inscribed Circle: 6.1 mm
- Insert Size: 08T204
- Insert Style: LDMT
- Manufacturer's Grade: WKP35S
- Material: Carbide
- Material Grade: K, P
- Rake: Positive
- Shape: Rhombic
- Features
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection |
| Ant-vibration geometry |
| For tools with extended tool projection |
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 0.8 mm width face chamfer |
| 2 cutting edges |
| 40 to 60 deg double countersink hole |
