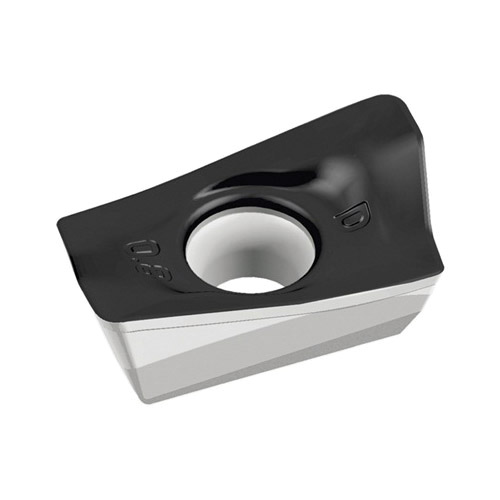

Valenite Tiger-tec® Gold 7170586 Positive Single Sided Indexable Milling Insert, ADGT1606PER-D56 WKP35G ANSI, Rhombic
ADGT Milling Inserts
PDW~12583716
MFG #: ADGT1606PER-D56WKP35G
Walter (Valentine)
38.10000
/ ea
- ANSI Code: ADGT1606PER-D56 WKP35G
- Catalog Number: ADGT1606PER-D56WKP35G
- Corner Radius: 0.8 mm
- Country of Origin: DE
- Finish: CVD Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Right
- Hole Diameter: 4.4 mm
- ISO Code: ADGT1606PER-D56 WKP35G
- Lead Angle: 15 deg/20 deg
- Length: 17.5 mm
- Sub Brand: Tiger-tec®
- Thickness: 6.15 mm
- Type: Positive Single Sided
- Width: 10.8 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: D56
- Inscribed Circle: 10.8 mm
- Insert Style: Tiger?tec® Gold
- Manufacturer's Grade: WKP35G
- Material: Carbide
- Material Grade: K/P
- Rake: 10 deg
- Shape: Rhombic
- Features
| D56 Geometry - The stable one |
| For unfavorable machining conditions |
| Maximum cutting edge stability |
| High feed rates |
| Optimized wear characteristics for a significantly longer tool life |
| Optimum cutting data due to a reduction in visible wear rate |
| Maximum process reliability thanks to the tough cutting edge |
| Gold colored top layer provides optimum wear detection |
| Excellent combination of wear resistance and toughness for milling |
| For moderate to high cutting speeds, dry milling or use with coolant, roughing steel and cast iron workpieces |
| +/-0.025 mm cutting edge tolerance |
| +/-0.025 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 1.6 mm width face chamfer |
| 2 cutting edges |
| 40 to 60 deg double countersink hole |
| 90 deg approach |
