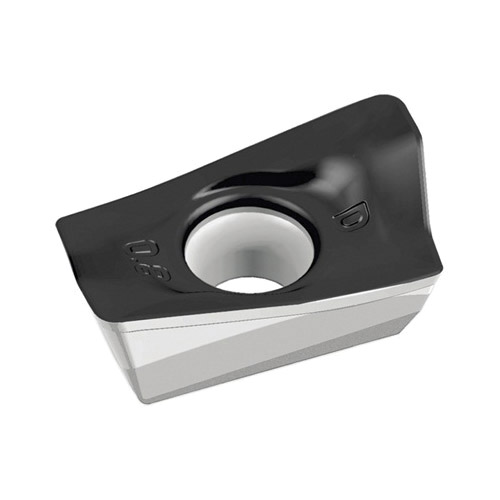

Valenite Tiger-tec® Gold 7170564 Positive Single Sided Indexable Milling Insert, ADGT1204PER-D51 WKP35G ANSI, Rhombic
ADGT Milling Inserts
PDW~12583706
MFG #: ADGT1204PER-D51WKP35G
Walter (Valentine)
33.00000
/ ea
- ANSI Code: ADGT1204PER-D51 WKP35G
- Catalog Number: ADGT1204PER-D51WKP35G
- Corner Radius: 0.8 mm
- Country of Origin: DE
- Finish: CVD Coated
- Gross Weight Per Pack: 1 lb
- Hand of Insert: Right
- Hole Diameter: 3.4 mm
- ISO Code: ADGT1204PER-D51 WKP35G
- Lead Angle: 15 deg/20 deg
- Length: 13.6 mm
- Sub Brand: Tiger-tec®
- Thickness: 4.76 mm
- Type: Positive Single Sided
- Width: 8.4 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: D51
- Inscribed Circle: 8.4 mm
- Insert Style: Tiger?tec® Gold
- Manufacturer's Grade: WKP35G
- Material: Carbide
- Material Grade: K/P
- Rake: 10 deg
- Shape: Rhombic
- Features
| D51 Geometry - The quiet one |
| Ant-vibration geometry |
| For tools with extended tool projection |
| Optimized wear characteristics for a significantly longer tool life |
| Optimum cutting data due to a reduction in visible wear rate |
| Maximum process reliability thanks to the tough cutting edge |
| Gold colored top layer provides optimum wear detection |
| Excellent combination of wear resistance and toughness for milling |
| For moderate to high cutting speeds, dry milling or use with coolant, roughing steel and cast iron workpieces |
| +/-0.025 mm cutting edge tolerance |
| +/-0.025 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 1.2 mm width face chamfer |
| 2 cutting edges |
| 40 to 60 deg double countersink hole |
| 90 deg approach |
