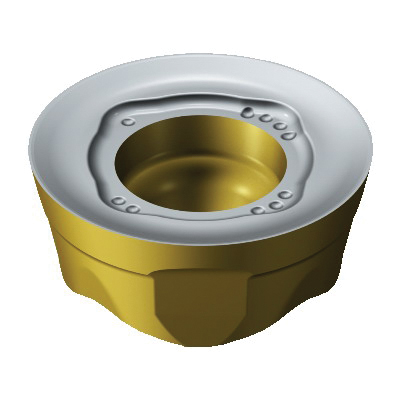

Sandvik Coromant 6252750 CoroMill® 600 Milling Insert, 600-1252E-ML M30B ANSI, R-Round, 600..E-ML Insert, 600-1252E-ML M30B ISO
600 Milling Inserts
1240133
MFG #: 6252750
Sandvik Coromant
16.02000
/ ea
- ANSI Code: 600-1252E-ML M30B
- Catalog Number: 6252750
- Corner Radius: 0.236 in
- Country of Origin: SE
- Finish: CVD-TiCN+Al2O3+TiN Coated
- Gross Weight Per Pack: 0.1200 lb
- Hand of Insert: Neutral
- Hole Diameter: 0.177 in
- ISO Code: 600-1252E-ML M30B
- Material Application: Stainless Steel
- Series: CoroMill® 600
- Thickness: 0.205 in
- UPC 11: 69826271263
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: ML
- Inscribed Circle: 0.472 in
- Insert Size: 1252
- Insert Style: 600..E-ML
- Manufacturer's Grade: M30B
- Material: Carbide
- Material Grade: M
- Shape: Round
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 11 deg clearance |
| 6 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| F cutting edge condition |
| 4 cutting edge |
