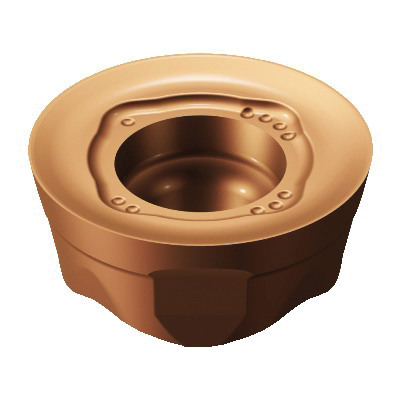

Sandvik Coromant 6252742 CoroMill® 600 Milling Insert, 600-1045E-ML 1030, R-Round, 600..E-ML Insert, Carbide, 1030, 600-1045E-ML 1030
600 Milling Inserts
1240132
MFG #: 6252742
Sandvik Coromant
13.21000
/ ea
- ANSI Code: 600-1045E-ML 1030
- Catalog Number: 6252742
- Corner Radius: 0.197 in
- Country of Origin: SE
- Finish: PVD-TiAlN Coated
- Gross Weight Per Pack: 0.0800 lb
- Hand of Insert: Neutral
- Hole Diameter: 0.177 in
- ISO Code: 600-1045E-ML 1030
- Material Application: Stainless Steel
- Series: CoroMill® 600
- Thickness: 0.1771 in
- UPC 11: 69826271255
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: ML
- Inscribed Circle: 0.394 in
- Insert Size: 1045
- Insert Style: 600..E-ML
- Manufacturer's Grade: 1030
- Material: Carbide
- Material Grade: M
- Shape: Round
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 11 deg clearance |
| 5 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| F cutting edge condition |
| 4 cutting edge |
| 0.05 to 0.35 mm/r cutting feed |
