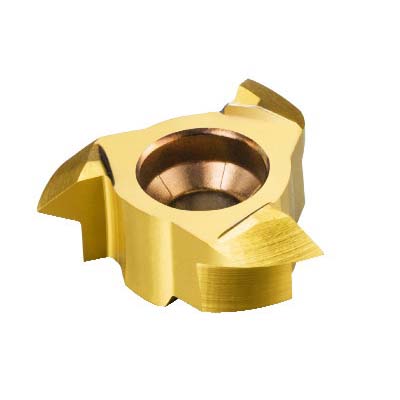

Sandvik Coromant 5758644 CoroMill® 327 Thread Milling Head, 327R09-18 250VM-TH 1025 ANSI, 327..VM-TH Insert, Carbide, 1025
327 Milling Inserts
519883
MFG #: 5758644
Sandvik Coromant
87.89000
/ ea
- Alternate Catalog Number: 327R09-18 250VM-TH 1025
- ANSI Code: 327R09-18 250VM-TH 1025
- Catalog Number: 5758644
- Corner Radius: 1025
- Country of Origin: SE
- Finish: PVD Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Right
- Hole Diameter: 5.85 mm
- Included Angle: 60
- ISO Code: 327R09-18 250VM-TH 1025
- Item Group: 350
- Lead Angle: 3
- Length: 0.2303 in
- Pitch: 2.5
- Series: CoroMill® 327
- Thickness: 327R09-18 250VM-TH 1025
- Thread Standard: VM
- Thread Type: Internal
- Threads Per Inch: 7 to 10
- Type: PVD Coated
- UPC 11: 69826245012
- UPC 12: 69826245012
- Width: 327R09-18 250VM-TH 1025
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: Straight
- Cutting Direction: Right Hand
- Inscribed Circle: Straight
- Insert Size: Right
- Insert Style: 327..VM-TH
- Manufacturer's Grade: 1025
- Material: Carbide
- Material Grade: K/M/N/P/S
- Rake: 1.5 deg Axial/5 deg Radial
- Shape: 327..VM-TH
- Features
| CoroMill® 327 adaptive interface |
| 2.6 mm D maximum cutting |
| 10.62 mm Dia core at face |
| 0.31 mm spot chamfer |
| Without coolant entry |
| 17.7 mm Dia cutting |
| EFW feed direction |
| 0 deg neutral helix flute |
| 2.88 mm H thread |
| 0.31 mm H thread difference |
| 5.85 mm L functional |
| 4.1 mm L usable |
| 5.85 mm maximum overhang |
| 30 deg left hand and right hand profile |
| 60 deg included profile |
| VP60 thread form |
| 7 - 10 TPI |
| 2.5 - 3.5 mm pitch |
| 3 effective cutting edge |
| No coolant exit |
