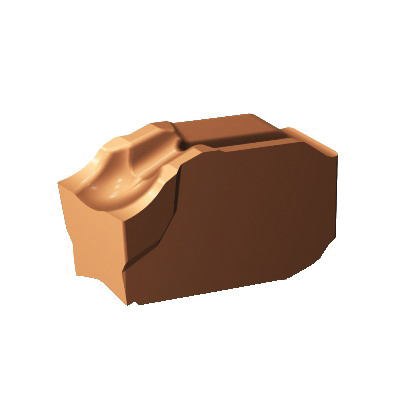

Sandvik Coromant 6427335 CoroCut® QD, QD-NE-0200-0001-CO 1125, QD-N..-CO Insert, Carbide, 1125, QD-NE-0200-0001-CO 1125
QD Cut-off & Parting Inserts
824843
MFG #: 6427335
Sandvik Coromant
22.38000
/ ea
- Alternate Catalog Number: QD-NE-0200-0001-CO 1125
- ANSI Code: QD-NE-0200-0001-CO 1125
- Catalog Number: 6427335
- Country of Origin: SE
- Finish: PVD Coated
- Gross Weight Per Pack: 1 lb
- Hand of Insert: Neutral
- Hole Diameter: 1125
- Included Angle: M, P, S
- Inscribed Circle: CO
- ISO Code: QD-NE-0200-0001-CO 1125
- Item Group: 320
- Length: 0.393 in
- Material Grade: M/P/S
- Series: CoroCut® QD
- Shape: 10 mm
- Thickness: 0.122 in
- Type: 3.1 mm
- UPC 11: 69826275452
- UPC 12: 69826275452
- Warranty: 2 mm
- Width: 0.0078 in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: CO
- Corner Radius: 0.003 in
- Cutting Width: 0.0000
- Insert Size: CoroCut® QD
- Insert Style: QD-N..-CO
- Lead Angle: 0
- Lead Angle Direction: Neutral
- Manufacturer's Grade: 1125
- Material: Carbide
- Relief Angle: 7
- Features
| 7 deg clearance |
| 20 life cycle state |
| 0 deg body machine side |
| Finishing operation |
| Concave clamping |
| -0.02 mm W cutting lower tolerance |
| 0.02 mm W cutting upper tolerance |
| -0.05 mm corner radius lower tolerance |
| 0.05 mm corner radius upper tolerance |
| E cutting edge condition |
| 0 deg lead |
| 1 edge |
| Spring clamp mounting |
| Positive rake |
| 0.03 - 0.13 mm/r cutting feed |
| 7 insert mounting style code |
| E insert seat size code |
