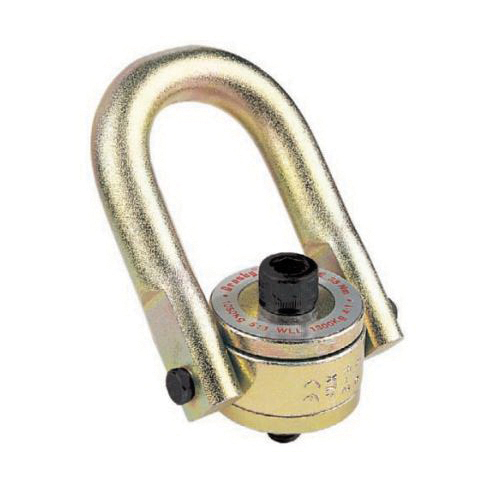

Crosby® 1016624 HR-125M Swivel Hoist Ring, 1050 kg at 5:1 Design Factor Load, 180 deg Pivot, 360 deg Swivel, 17.5 mm Bail
Hoist Rings
1278861
MFG #: 1016624
Crosby®
475.24000
/ ea
- Catalog Number: 1016624
- Country of Origin: US
- Dimensions: 85.1 in W
- Gross Weight Per Pack: 2.4800 lb
- Installation Torque: 38 N-m
- Series: HR-125M
- Standards: ASME B30.26, DIN 912
- Type: Crosby
- Stock Status: NONSTOCK
- Brand: Crosby®
- Manufacturer: Crosby Group LLC
- Bail Diameter: 17.5 mm
- Load Capacity: 1050 kg at 5:1 Design Factor
- Pivot Angle: 180 deg
- Swivel Angle: 360 deg
- Thread Size: M12x1.75
- Features
| Rated at 100% at 90 deg angle |
| 100% Individually proof tested to 2-1/2X the working load limit with certification and statistically magnetic particle inspected |
| Each product has a product identification code (PIC) for material traceability, along with the working load limit and the name Crosby® or "CG" stamped into it |
| Importantly, these hoist rings meet other critical performance requirements including fatigue life, impact properties and material traceability |
| Fatigue rated to 20000 cycles at 1-1/2X the working load limit |
| Individually packaged along with proper application instructions and warning information |
| Bolt is secured with E-clip, threads are grooved, this method allows for easy disassembly and assembly of hoist ring for thorough examination of all components |
| Bolts are individually proof tested |
| Top washer has the following features - the working load limit and recommended torque value are permanently stamped into each washer |
| Washer is color coded for easy identification, silver for metric thread |
| Bolt specification is a grade 12.9 alloy socket head cap screw |
| Designed to be used with ferrous work piece only |
