Maestro® MS-A202-WH MS-A202 Dual Circuit Occupancy Vacancy Sensor Switch, 120 to 277 VAC, Ultrasonic/Passive Infrared Sensor

Inwall Sensors
866426 MFG #: MS-A202-WH
Lutron®
108.53000 / ea

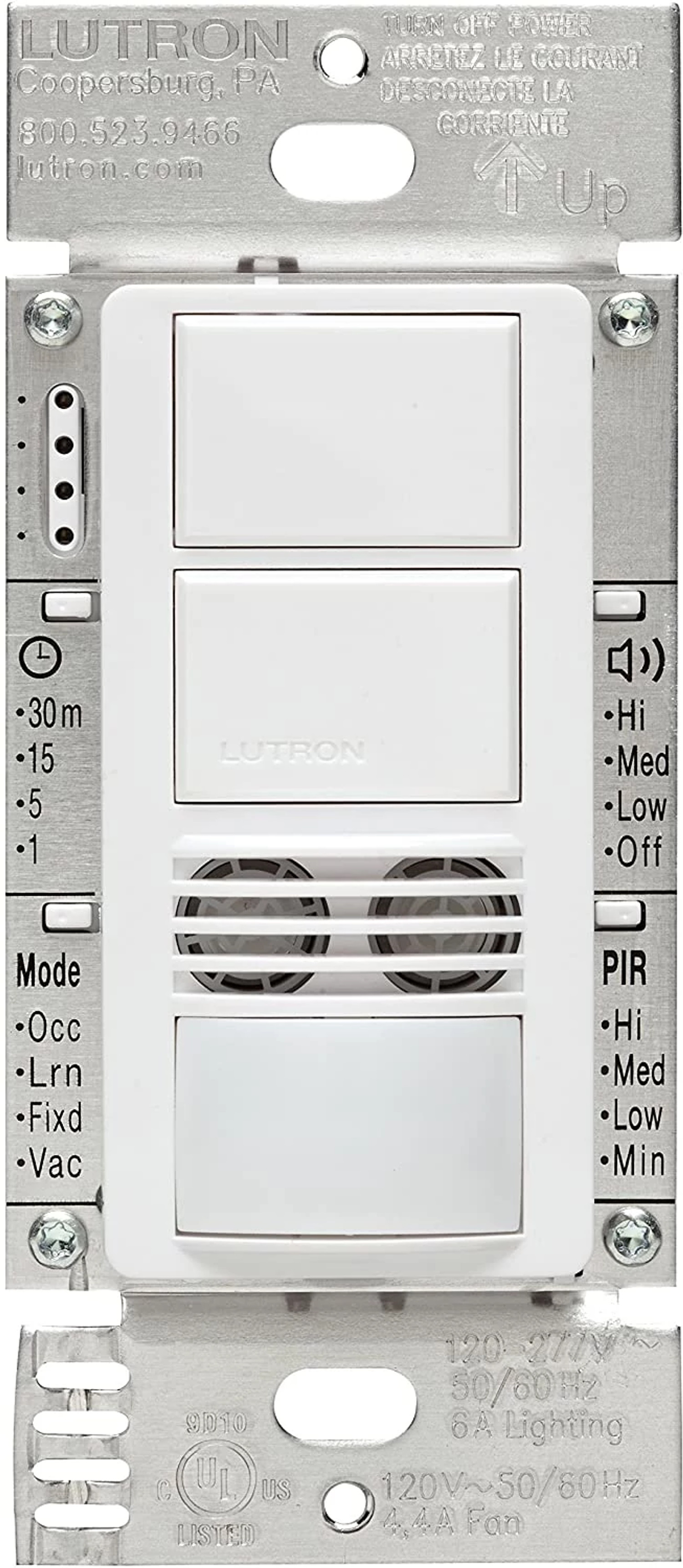

10977_SM18EATJBICD9YL0
  • Amperage Rating: 6 A
  • Application: Lighting Control
  • ARRA Compliant: N
  • Body: PLASTIC
  • Buy American Compliant: N
  • Catalog Number: MS-A202-WH
  • Color: White
  • Country of Origin: CN
  • Currency: USD
  • Dimensions: 4-11/16 in H x 2-15/16 in W x 1-7/16 in D
  • Enclosure: Plastic
  • Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
  • EU RoHS Indicator: N
  • Gross Volume Per Pack: 0.04
  • Gross Volume per Pack Metric: 0.00
  • Gross Weight Per Pack: 0.3200 lb
  • Gross Weight per Pack Metric: 0.16
  • Gross Weight UOM Metric: kg
  • Height: 4.60 in
  • Height [Metric]: 11.6840 cm
  • Indicator: Smart ambient light detection (ALD)/Fixed ambient light detection
  • Length: 2.40 in
  • Length [Metric]: 6.0960 cm
  • Load: 6 A@10-277 VAC lights/4.4 A (0.167 HP)@120 VAC fan
  • Mounting: Wallbox
  • Operating Temperature: 32 to 104 °F
  • Response Frequency: 50/60 Hz
  • Sensing Range: 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
  • Series: MS-A202
  • Standard: NOM, Title 20/24 certified
  • Standards: CE Certified, UL Style 2464, UL 1685, CSA Certified, RoHS Compliant
  • Sub Brand: Maestro
  • Supply Voltage: 120 to 277 VAC
  • Temperature Rating: 32 to 104 °F
  • Time Delay: 1 to 30 mins
  • Type: Occupancy sensor switch, dual-circuit, single-pole
  • UNSPSC: 39122236
  • UPC 11: 78427608977
  • UPC 12: 784276089777
  • Width: 3.40 in
  • Width [Metric]: 8.6360 cm
  • Stock Status: NONSTOCK
  • Brand: Lutron®
  • Manufacturer: Lutron Electronics Co., Inc
  • Coverage: 900 ft²
  • Mounting Type: Wall/Box
  • Sensor Type: Passive/Ultrasonic Infrared
  • Viewing Angle: 180 °
  • Voltage Rating: 120 to 277 VAC
QTY
Add to Wishlist
  • Applications
  • Features
Lighting Control
Applies Lutron's exclusive XCT Technology (Dual Tech) to the ultrasonic as well as the passive infrared technology in this sensor to create a product that can detect very fine motion, such as typing. Includes all of the great features found in the rest of the Maestro sensor family, including: adaptive relay switching, smart ambient light detection, and simple button presses for changing settings. XCT technology for major, minor, fine, and very fine motion detection. 180 degree field-of-view. Tamper-resistant PIR lens. Up to 900 ft2 (81 m2) major motion coverage and 400 ft2 (36 m2) minor motion coverage. Two ambient light detect (ALD) options: Learning ALD mode: uses adaptive algorithm. Sensor learns user's preferred light level over time. Fixed ALD mode: four selectable light level thresholds: Hi, Med, Low, Min. Can be set to auto-on/auto-off or manual-on/auto-off per circuit. Adjustable timeout for each circuit (1, 5, 15, or 30 minutes). Sensitivity adjustment: PIR (Hi, Med, Min), ultrasonic (Hi, Med, Low, Off). Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent. Switches fan loads at 120 V. Does not require neutral wiring.
Provides flexible sensing control from a single switch to two independent circuits (6 A per circuit)
It's ideal for bi-level switching applications such as independently controlled fluorescents in a classroom or restroom fan/lights
Occupancy/vacancy sensor dual-circuit switch, no neutral wire, single-pole, 6 A lighting/4.4 A fan capacity
Controls incandescent/halogen, magnetic low voltage, electronic low voltage, non-dim fluorescent, non-dim LED loads
Dual technology sensor
6 A light/4.4 A fan (1/6 hp)
400 sq-ft minor motion coverage
1/5/15/30 min (Adjustable) time delay
