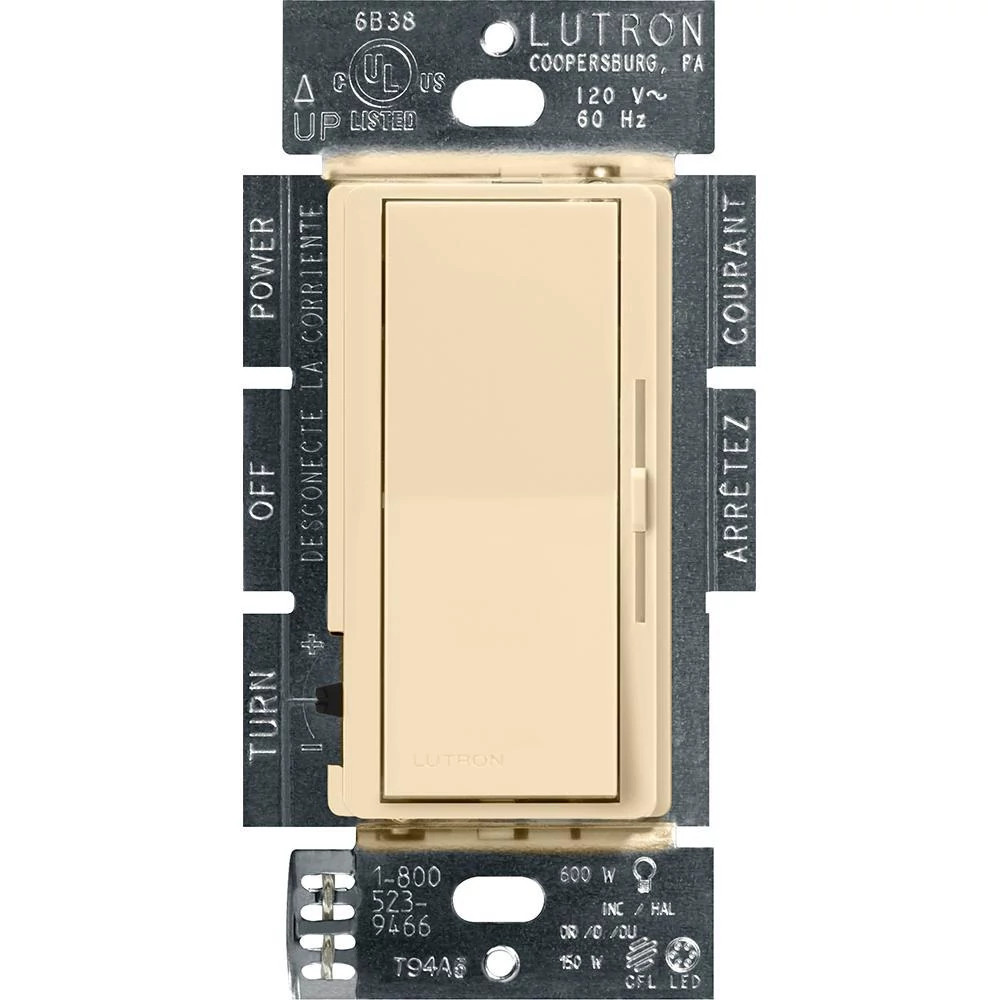

Diva C.L® DVCL-153P-IV 3-Way Designer Style Dimmer Switch, 120 VAC, 1 Pole, Ivory
Dimmer Switches
593775
MFG #: DVCL-153P-IV
Lutron®
31.56000
/ ea
- Actuator: Paddle switch
- Application: Lighting Control
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: DVCL-153P-IV
- Connection: Wire Leads
- Connection Type: Wire Leads
- Control: Paddle On/Off
- Country of Origin: CN
- Currency: USD
- Dimensions: 4.69 in H x 2.94 in W x 0.3 in D
- Enclosure: Plastic
- Environmental Conditions: Indoor Use Only
- EU RoHS Indicator: N
- Face Material: Metal;Plastic
- Frequency Rating: 60 Hz
- Gross Volume Per Pack: 0.04
- Gross Volume per Pack Metric: 0.00
- Gross Weight Per Pack: 0.2500 lb
- Gross Weight per Pack Metric: 0.14
- Gross Weight UOM Metric: kg
- Height: 4.60 in
- Height [Metric]: 11.6840 cm
- Insulation: Plastic
- Lamp Type: CFL/LED
- Length: 2.40 in
- Length [Metric]: 6.0960 cm
- Material: Metal/Plastic
- Mounting: Wallbox
- Mounting Type: Surface
- Operating Temperature: 32 to 104 °F
- Power Rating: 150 W
- Size: 4.69 x 2.94 in
- Standard: UL, CSA, NOM
- Standards: UL1472, CSA C22.2 184.1, NOM Certified
- Start Type: Pre-Set
- Sub Brand: Diva
- Switch Type: Paddle Switch
- Temperature Rating: 0 to 40 °C
- Terminal Type: Screw
- Type: Dimmer, 3-way/single-pole
- UNSPSC: 39122206
- UPC 11: 02755700303
- UPC 12: 027557003032
- Wattage: 600 W
- Width: 2.40 in
- Width [Metric]: 6.0960 cm
- Stock Status: NORMALLY STOCKED
- Brand: Lutron®
- Manufacturer: Lutron Electronics Co., Inc
- Color: Ivory
- Voltage Rating: 120 VAC
- Number Of Poles: 1
- 360 Degree View URL - index.html?pid=10977&id=11059755360Zen&ext=jpg&rows=1&cols=24(360 Degree View URL)
- Brochure URL - 10977_R2UM3GHJKA7C6SBW.pdf(Brochure URL)
- http://www.lutron.com(Seller Home Page URL)
- Install Instructions 1 URL - 10977_9P30ELARQGJ2WST7.pdf(Install Instructions 1 URL)
- Install Instructions URL - 032-321A.pdf(Install Instructions URL)
- Spec Sheet URL - 10977_I624YTH1P5CBJSWX.pdf(Spec Sheet URL)
- Spec Sheet URL - 369-308A.pdf(Spec Sheet URL)
- Tech Drawing URL - 10977_FQCHBAWN56Y8UIT9.pdf(Tech Drawing URL)
- Tech Drawing URL - 369-272.pdf#page=1(Tech Drawing URL)
- Video - http://www.lutron.com/Education-Training/Tools/Pages/InstallDimmer.aspx?syst=Dimmers+%26+...(Video)
- Video - https://www.lutron.com/Education-Training/Tools/Pages/InstallDimmer.aspx?syst=Dimmers+%26...(Video)
- Warranty URL - 369-119_Wallbox_Warranty.pdf(Warranty URL)
- Warranty URL - 10977_FACWP0X3TQZG6S52.pdf(Warranty URL)
- Applications
- Features
| Lighting Control |
| Controls 150 W dimmable LED/CFL (screw-base), 600 W incandescent, or halogen loads. Paddle turns on/off. Slide up to brighten, down to dim. Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents. |
| Large paddle switch with a captive linear slide dimmer for a standard designer wallplate opening |
| HED™ technology: advanced LutronR dimming circuitry designed for compatibility with most high efficacy light bulbs |
| Dimmable compact fluorescent (CFL) with integrated ballast |
| Dimmable LED with integrated driver |
| Low-end adjustment to accommodate a wide range of bulbs |
| 100% factory tested |
| Power failure memory |
| Captive linear slider |
| Electrostatic discharge tested |
| Mechanical air-gap switch to disconnect load power |
| Boxed packaging |
| Gloss finish |
| Wall Box mounting |
