RAB Lighting HID Replacement LED, Ballast Bypass, 80w, 10,000 Lumens, Replaces 250w/320W HID, 5000K
Retrofit Kits
1142381
MFG #: HID-80-H-EX39-850-BYP-SB
RAB
166.63000
/ ea
- Alternate Catalog Number: 1981374908
- ARRA Compliant: N
- Average Life: 50000 hr
- Ballast Type: Internal Bypass
- Base: EX39
- Beam Angle: 180
- Buy American Compliant: N
- Catalog Number: HID-80-H-EX39-850-BYP-SB
- Color: Daylight
- Color Rendering Index [CRI]: 80
- Color Temperature: 5000 K
- Country of Origin: CN
- Currency: USD
- Dimensions: 8-3/4 in L x 9 in W
- EU RoHS Indicator: Y
- Fixture Type: Enclosed/Open
- Lamp Base Type: EX39
- Lamp Type: HID
- Lumens: 10000 Lumens
- Power Factor: 1.00
- Shape: Shoe Box
- Standards: RoHS CompliantUL ListedFCC ApprovedCEC CompliantDLC QPL Listed
- Type: Type B Horizontal
- UNSPSC: 39101628
- UPC 11: 01981374908
- UPC 12: 019813749082
- Voltage Rating: 100/277 VAC
- Wattage: 80 W
- Stock Status: NORMALLY STOCKED
- Brand: RAB
- Manufacturer: RAB Lighting Inc.
- Brochure URL - lamps(Brochure URL)
- http://www.rabweb.com(Seller Home Page URL)

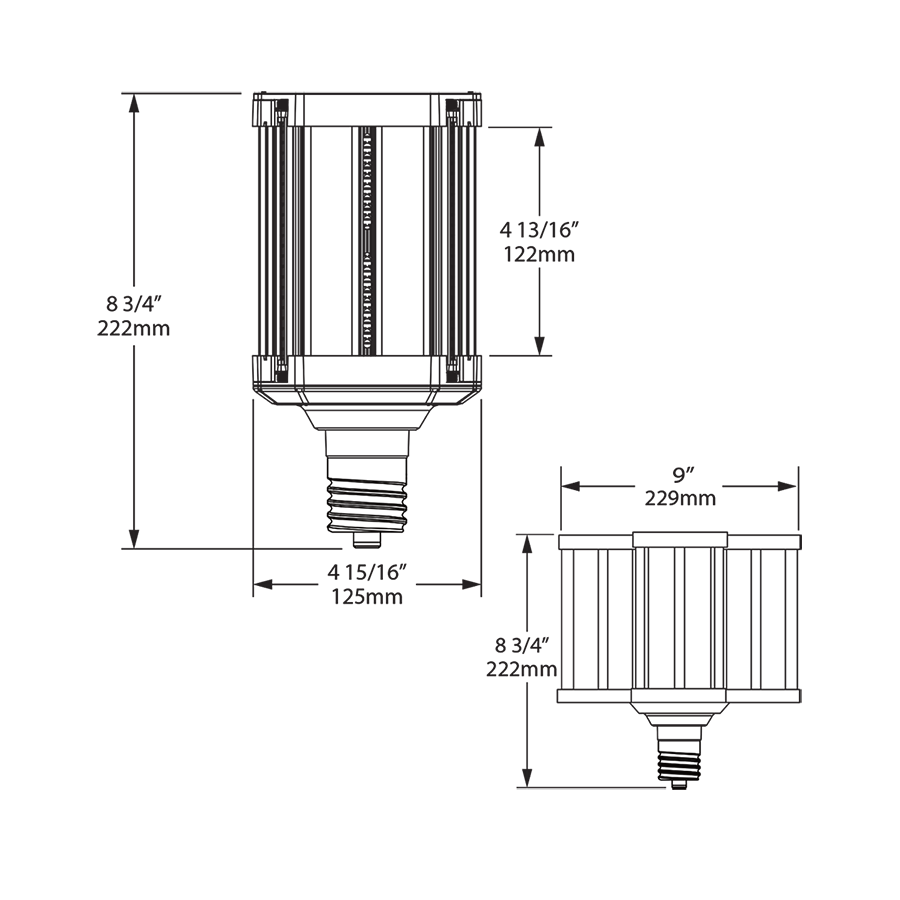

- Line Drawing URL - hid-80-h-ex39-8xx-byp-sb-draw.png(Line Drawing URL)
- Spec Sheet URL - HID-80-H-EX39-850-BYP-SB(Spec Sheet URL)
- Tech Drawing URL - hid-80-h-ex39-8xx-byp-sb-draw.png(Tech Drawing URL)
- Warranty URL - Website_Terms_of_Use.pdf(Warranty URL)
- Features
| HID replacement replace conventional hid lamps |
| Ballast bypass internal driver eliminates the need for external ballasts or drivers |
| Compact design allows the lamp to fit in most fixtures |
| Expandable flaps puts the light where you need it |
| Heat dissipation thermal technology extends lifespan |
| Water and dust-resistant ideal for outdoor fixtures |
| Enclosed fixture rated may be used in both enclosed and open fixtures |
| Energy savings uses 76% less energy than traditional lamps |
| Surge protection includes 4 kV surge protection |
| Mercury-free environmentally friendly vs fluorescent technologies |
| 350 deg rotatable base direct light where needed |
