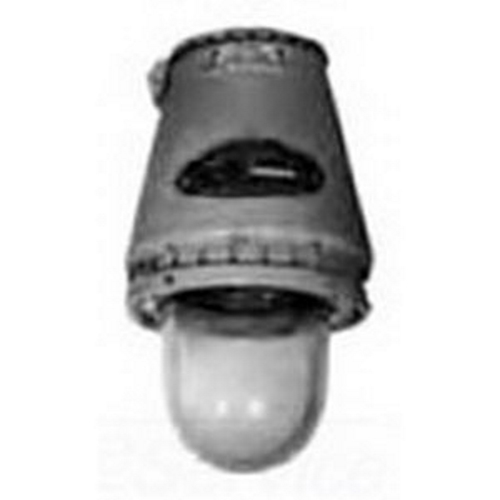

Appleton® AAUA-15 A-51 Factory Sealed Luminaire, 1 Incandescent Lamp, 60 to 200 W Fixture, Epoxy Powder Coated Housing
Indoor Vapor Tight Light Fixtures
498491
MFG #: AAUA15
Appleton™
2059.73000
/ ea
- Application: Ideal For Use In Chemical And Petrochemical Plants And In Other Heavy Process Areas Where Ignitable Vapors, Dust, Moisture And Corrosive Atmospheres May Be Present; Suitable For Use In Wet Locations; Use With Threaded Metal Conduit
- ARRA Compliant: C
- Buy American Compliant: N
- Catalog Number: AAUA15
- Country of Origin: MX
- Currency: USD
- EU RoHS Indicator: C
- Gross Weight Per Pack: 11.9000 lb
- Gross Weight per Pack Metric: 5.40
- Gross Weight UOM Metric: kg
- Height: 12.00 in
- Height [Metric]: 30.4800 cm
- Housing Material: Copper Free Aluminum
- Lamp Base Type: PS25 Medium
- Lamp Wattage: 60 to 200 W
- Length: 9.00 in
- Length [Metric]: 22.8600 cm
- Lens Type: Explosionproof/Heat/Impact Resistant Glass
- Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Fixture And Guard
- Mounting Type: Threaded
- Series: A-51™
- Sub Brand: UNILETS
- Type: Explosionproof Factory Sealed
- UNSPSC: 39111525
- UPC 11: 78138112870
- UPC 12: 781381128704
- Width: 9.00 in
- Width [Metric]: 22.8600 cm
- Stock Status: NONSTOCK
- Brand: Appleton™
- Manufacturer: Appleton
- Fixture Wattage: 60 to 200 W
- Housing Finish: Epoxy Clad/Powder Coated
- Lamp Type: Incandescent
- Number Of Lamps: 1
- http://www.appletonelec.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet URL - 11043_SPE_781381128704_Spec.pdf(Spec Sheet URL)
- Spec Sheet URL - SPE_781381128704_Spec.pdf(Spec Sheet URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
| Ideal For Use In Chemical And Petrochemical Plants And In Other Heavy Process Areas Where Ignitable Vapors, Dust, Moisture And Corrosive Atmospheres May Be Present; Suitable For Use In Wet Locations; Use With Threaded Metal Conduit |
| All A-51 fixtures are factory-sealed, no external sealing fittings required; New high temperature phenolic connection block in mounting hood has rugged leaf spring contacts - loosen two screws, rotate and remove for quick wiring; Safe, easy servicing or relamping without disconnecting any wiring; Wireless fixture unit easily threads off mounting hood for convenient servicing or for immediate exchange with stand-by unit; All joints are flame-tight; Specially formulated two-coat baked epoxy enamel provides superior protective finish to resist corrosion; New high temperature glass-reinforced phenolic socket block in fixture unit has collector ring and pin that automatically make electrical contact as fixture unit is threaded onto mounting hood; Prismatic configuration on globe interior provides light control while allowing smooth exterior surface for cleaning; All fixtures have aluminum inner reflector for increased lumen efficiency; Easily mount to globe ring with 3 screws |
| Specially formulated two-coat baked epoxy enamel provides superior protective finish to resist corrosion |
| Ambient temperature range 40 degree Celsius, temperature range 110 degree Celsius supply wire |
| All A-51 fixtures are factory-sealed, no external sealing fittings required |
| New high temperature phenolic connection block in mounting hood has rugged leaf spring contacts - loosen two screws, rotate and remove for quick wiring |
| Safe, easy servicing or relamping without disconnecting any wiring |
| Wireless fixture unit easily threads off mounting hood for convenient servicing or for immediate exchange with stand-by unit |
| All joints are frame-tight |
| Copper free (4/10 of 1 pct maximum) aluminum fixture |
| Threaded hood mounting |
| Epoxy-clad and powder coat fixture housing finish |
| Copper free aluminum housing material |
