RAB Lighting RB6T5 High Bay Fixture, 6 T5HO Fluorescent Lamp, 362 W Fixture, 120/277 VAC, Gloss White Housing
Indoor High Bay Fixtures
PDW~6845694
MFG #: RB6T5
RAB
220.79000
/ ea
- Alternate Catalog Number: 1981301848
- Amperage Rating: 3/1.33 A
- ARRA Compliant: N
- Average Life: 20000 hr
- Ballast Type: Programmed Start
- Buy American Compliant: N
- Catalog Number: RB6T5
- Color Rendering Index [CRI]: 85
- Country of Origin: CN
- Currency: USD

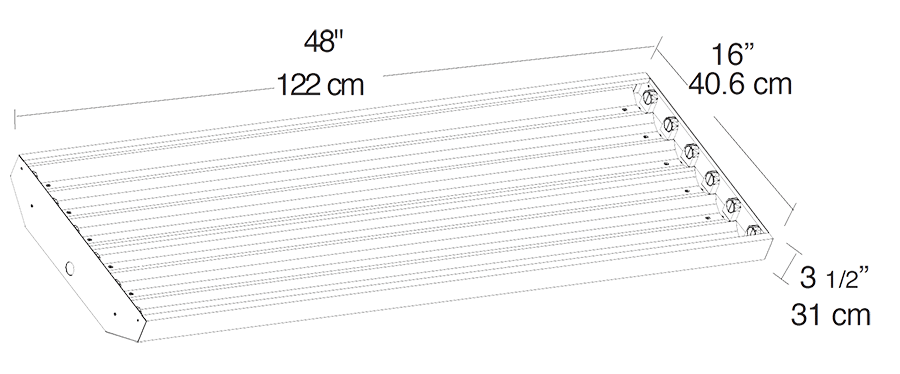

- Dimensions: 48 in L x 16 in W x 3-1/2 in H
- EU RoHS Indicator: N
- Gross Weight Per Pack: 21.0010 lb
- Gross Weight per Pack Metric: 9.53
- Gross Weight UOM Metric: kg
- Housing Material: Steel
- Lamp Base Type: Bi-Pin Medium
- Lamp Wattage: 324 W
- Lens Type: Alanod 320G-E
- Light Color: White
- Lumens: 4740 Lumens
- Mounting: Ceiling
- Mounting Type: Chain/Surface
- Number Of Lamps: 6
- Standards: UL Listed
- Type: HID Linear
- UNSPSC: 39112102
- UPC 11: 01981301848
- UPC 12: 019813018485
- Wattage: 324 W
- Stock Status: NONSTOCK
- Brand: RAB
- Manufacturer: RAB Lighting Inc.
- Fixture Wattage: 324 W
- Housing Finish: Gloss/White
- Lamp Type: T5/HO Fluorescent
- Voltage Rating: 120 VAC
RAB offers energy efficient fluorescent fixtures for large space lighting including warehouses, factories, and distribution centers. The RBAY delivers the high quality needed for these applications with strong, heavy duty 22 gauge rigid housing with no sharp edges. The superior strong-box protective foam case packaging protects the RBAY so it arrives in perfect shape and ready to install.
- Catalog URL - IDW_DOCUMENT_1520592101175.pdf(Catalog URL)
- http://www.rabweb.com(Seller Home Page URL)
- Video - https://www.youtube.com/embed/PHkRxDRrLPU(Video)
- Tech Drawing URL - rbay6_2.png(Tech Drawing URL)
- Line Drawing URL - rbay6_2.png(Line Drawing URL)
- Spec Sheet URL - specSheet.php?product=RB6T5(Spec Sheet URL)
- Warranty URL - Website_Terms_of_Use.pdf(Warranty URL)
- Features
| HID |
| Qualifies for EPA act 2005 incentives |
| Post painted, high reflective gloss white powder coat finish |
| High performance, brilliant bevel segmented reflectors |
| Easy wiring and maintenance access panel |
| Rotary locking lamp holders for vibration security and easy re-lamping |
| Heavy duty 22 ga steel housing and wiring box with 1/2 in NPS knockouts |
| 66 Lumens/W efficacy |
| 3 A at 120 VAC, 1.3 A at 277 VAC |
