Advance 71A8142001D Magnetic HID Ballast, High Pressure Sodium Lamp, 150 W, 480 VAC, Pulse, 1 Ballast Factor
High Pressure Sodium Ballasts
84150
MFG #: 71A8142001D
Advance
174.02000
/ ea
- Alternate Catalog Number: 71A8142001D
- Amperage Rating: 0.42 A
- ANSI Code: S55
- Application: Lighting Luminaire Component
- ARRA Compliant: C
- Ballast Grade: ANSI S55
- Buy American Compliant: C
- Catalog Number: 71A8142001D
- Country of Origin: CN
- Currency: USD
- Dimensions: 3.95 in L x 4.3 in W x 2.8 in H
- Dimmable: No
- EU RoHS Indicator: C
- Frequency Rating: 60 Hz
- Gross Weight Per Pack: 10.0000 lb
- Gross Weight per Pack Metric: 4.51
- Gross Weight UOM Metric: kg
- Height: 2.81 in
- Height [Metric]: 7.1374 cm
- Lamp Base Type: 71A8142
- Length: 3.94 in
- Length [Metric]: 10.0076 cm
- Minimum Starting Temperature: -40 °F
- Number Of Lamps: 1
- Power Factor: 1.00
- Standard: ULR;CSA certificate;RoHS Compliant
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedUL RecognizedUL Insulation Class H
- Thermal Protection: Class P
- Type: HID Magnetic
- UNSPSC: 39101902
- UPC 11: 78108781421
- UPC 12: 781087814215
- Wattage: 118 W
- Width: 4.30 in
- Width [Metric]: 10.9220 cm
- Stock Status: NONSTOCK
- Brand: Advance
- Manufacturer: Signify
- Ballast Factor: 1
- Lamp Type: High Pressure Sodium
- Lamp Wattage: 150 W
- Start Type: Pulse
- Voltage Rating: 480 VAC
- Applications
- Features
| Lighting Luminaire Component |

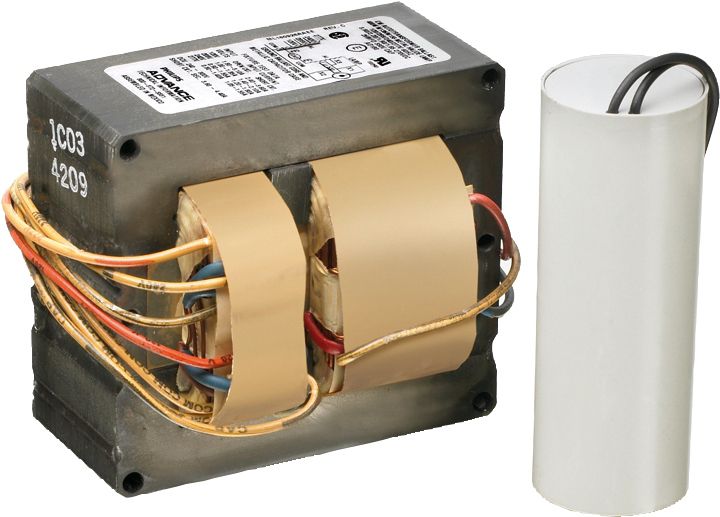

| The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire |
| The core and coil also forms the nucleus of Philips Advance five other ballast configurations |
| 14 Mfd capacitor |
| 0.7 A input current (open circuit), 0.5 A input current (starting), 0.3 to 0.45 A input current (short circuit), 0.42 A input current (nominal) |
| 3 x 4 in (2 coil) core |
| 1.65 in Dia x 2.75 in H oval capacitor |
| Ballast replacement kit with dry film capacitor |
| UL insulation class H of 180 deg C |
